3.1 Test points

STEVAL-WLC38RX features several headers and test points to provide easy access to key signals.

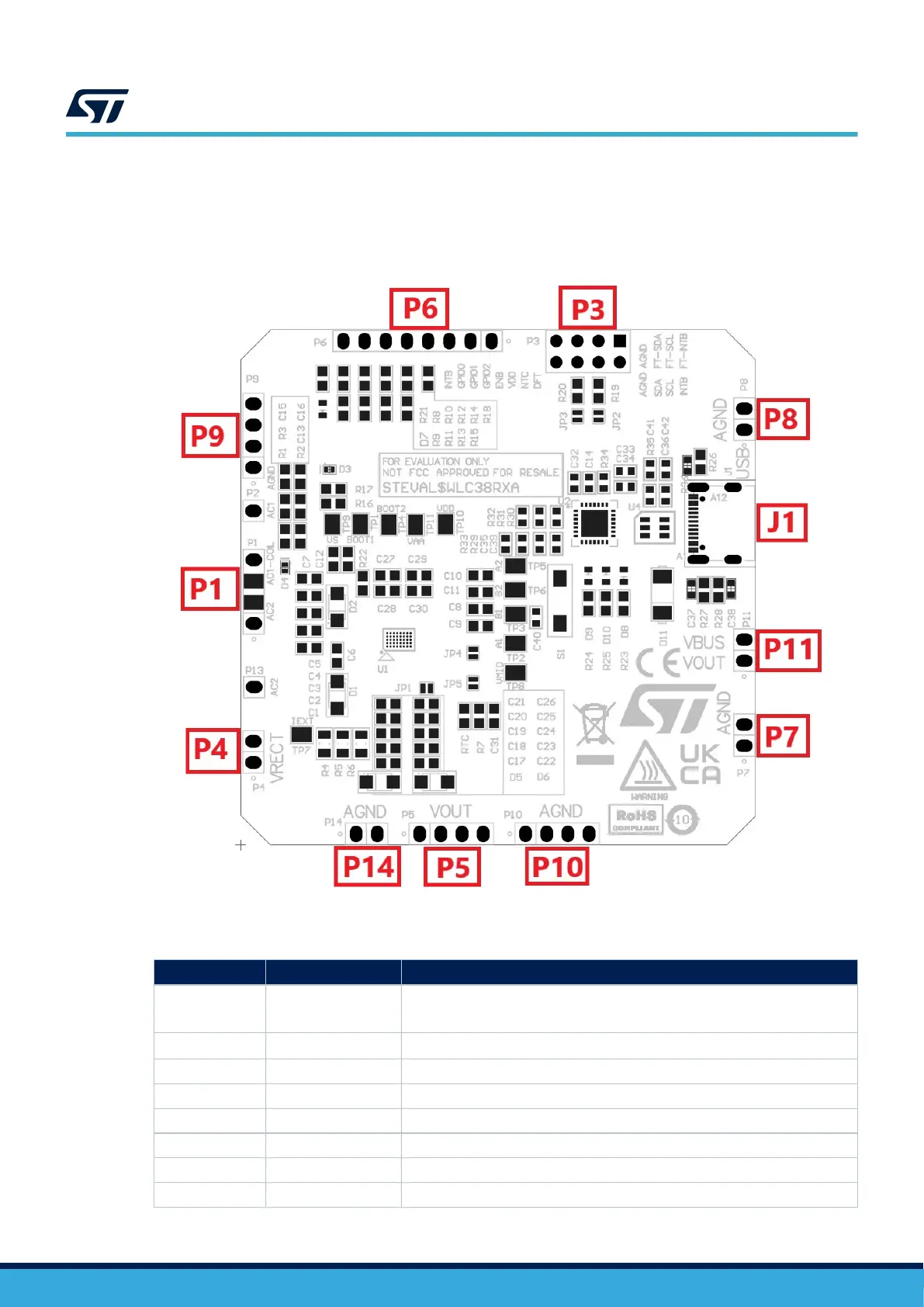

Figure 3. Headers and test points

Table 2. header and test point descriptions

Connector

Name Description

P1 Rx Coil

4-pin Header: for mounting External RX Coil:

Pin 1,2 AC2; Pin3,4 AC1_COIL

2x4 pin Header: AGND, SDA, SCL, INTB

P6 Control signals 8 pin Header: Programmable GPIOs, ENB, INTB, NTC

P4 VRECT 2-pin Header: VRECT output

P5 VOUT 4-pin Header: VOUT output

P7, P8, P14 GROUND 2-pin Header: Ground connection

P9, P10 GROUND 4-pin Header: Ground connection

P11 VBUS-VOUT 2 Pin Header: VBUS to VOUT Wire Jumper
