ST STEVAL-WLC38RX - Overtemperature Protections (OVTP); Figure 26. Firmware Overcurrent Rx Protection Threshold Setting; Figure 27. Firmware Overcurrent Rx Protection Settings

81 pages

Save Page as PDF

To Next Page

To Previous Page

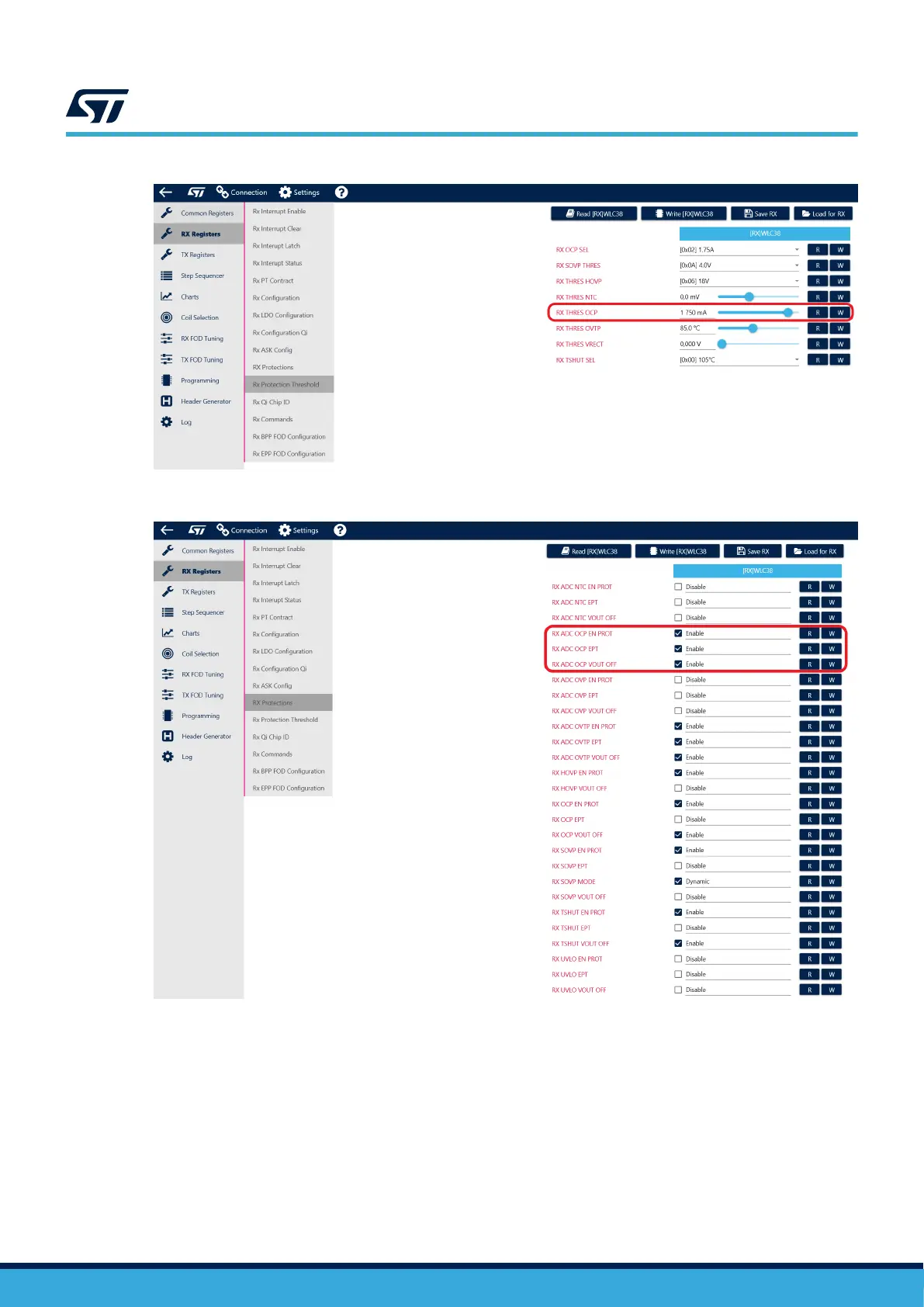

Figure 26. Firmware overcurrent Rx protection threshold setting

Figure 27. Firmware overcurrent Rx protection settings

5.9.5 Overtemperature protections (OVTP)

The STWLC38 IC is equipped with one overtemperature protection operated by hardware and one managed by

the firmware.

The hardware OVTP (called TSHUT) causes the AC1 and AC2 pins to be shorted to ground when triggered. The

default threshold value is set to 105 °C (released at 95 °C), however the threshold can be adjusted in the GUI (10

°C step).

UM3154

Protections overview

UM3154 - Rev 2

page 23/81
