74 MS 240, MS 260, MS 260 C

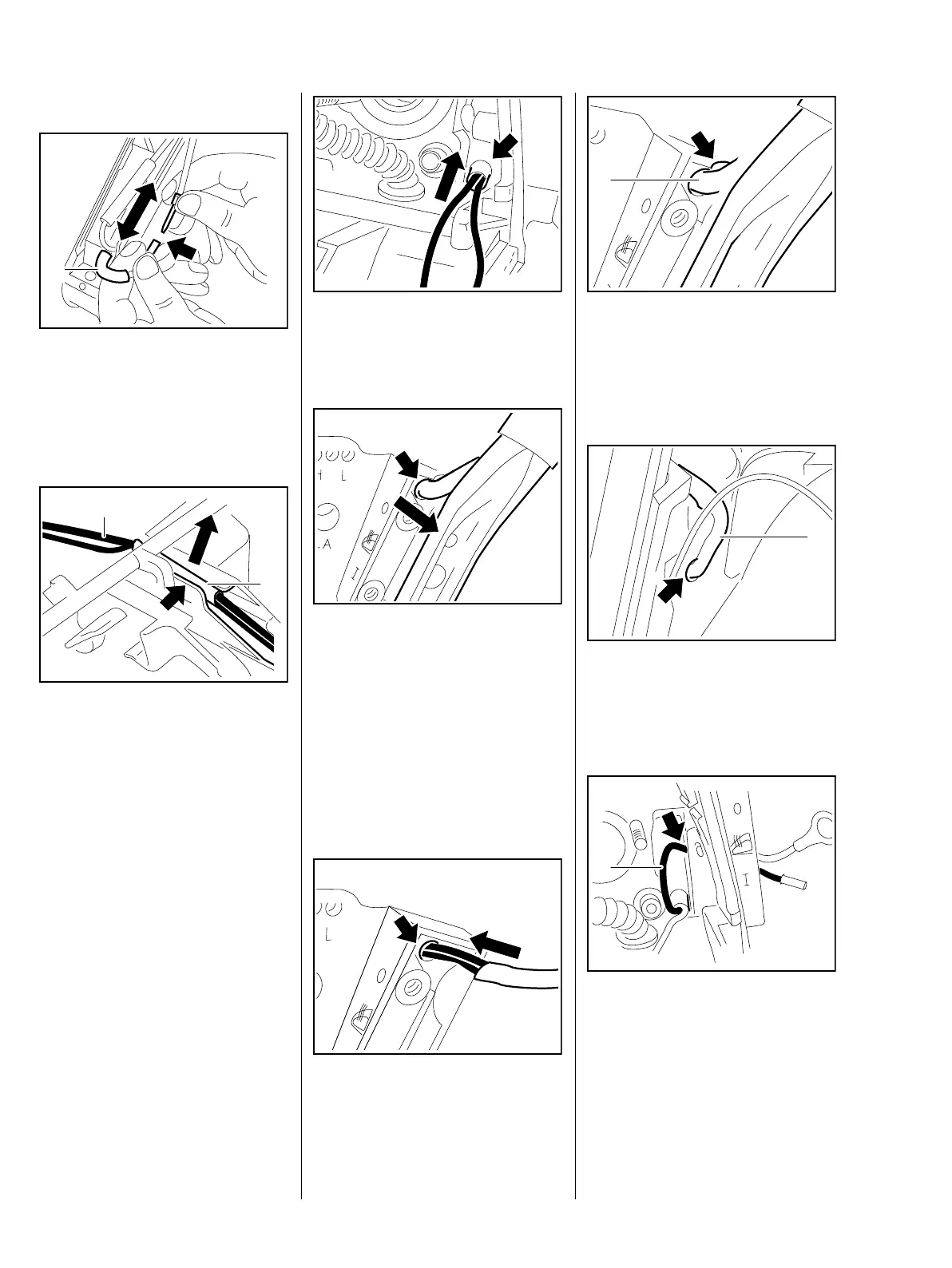

Removing the Handlebar
– Push the insulating tube (1) in the
directon of the heating element.
: Separate the pin and socket
connector (arrow).
: Take the wire (1) with insulating
tube (2) out of the guide (arrow).
– Pull the handle heating wire (1)
out of the insulating tube (2).
165RA268 TG
1
165RA269 TG
1
2
: Pull the wiring harness out of the
hole (arrow) in the housing in the
direction of the cylinder.
: Pull the wiring harness out of the
hole (arrow).
– Remove the handlebar, check it
and replace if necessary
– Test the handle heating system,
b 11.6
Installing the Handlebar
: Thread the wiring harness
through the hole (arrow).
165RA270 TG
165RA271 TG
165RA272 TG
: Place the handlebar in position
and continue pulling the wiring
harness (1) through the hole until
it is snugly seated in the recess
(arrow).
: Thread the wiring harness (1)
through the hole (arrow) until it
locates snugly against the tank
housing.
: Push the wire with connector
sleeve (1) through the hole
(arrow) and position it in the
guide.
– Install the heater switch, b 15.4
165RA273 TG
1
165RA274 TG
1
165RA275 TG
1
