Stihl TS 420 Instruction Manual

TS 410, TS 420
English
14

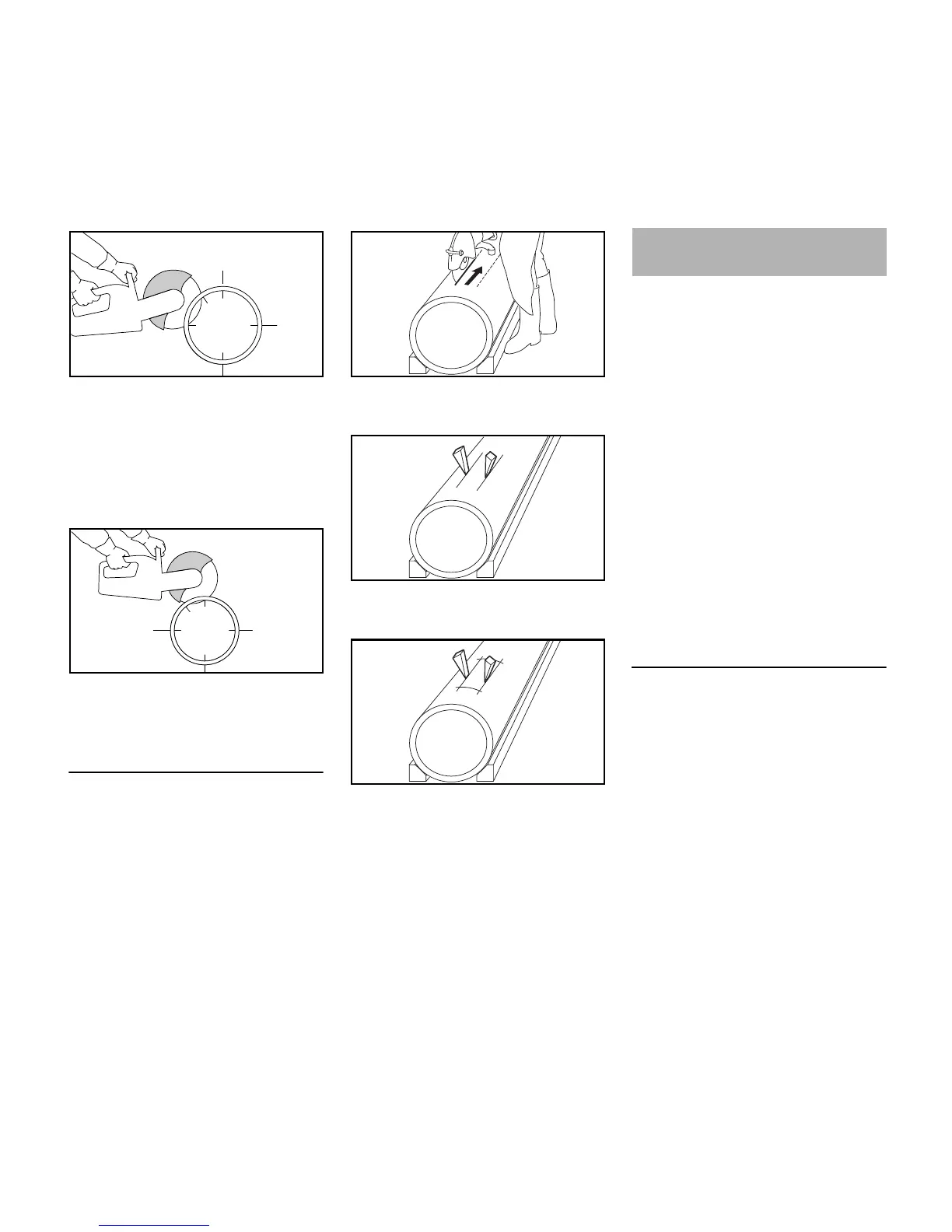

N Second lateral cut in the marked
area – never cut into the area of the
last cut, to ensure a firm hold on the
part of pipe to be cut
Only make the last top cut once all
bottom and lateral cuts have been
made.
N Last cut always from the top
(approx. 15% of the pipe
circumference)
Concrete pipe – cut recess
Sequence of cuts (1 to 4) is important:
N First, cut hard-to-reach areas
N Always make severing cuts so that
the abrasive wheel is not pinched
N Use wedges and/or leave ridges
that are broken after cutting
N If the severed part remains in the
recess after cutting (due to wedges,
ridges used), do not make any
further cuts – break the severed part
Abrasive wheels are exposed to
extremely high loads especially during
freehand cutting.
Therefore only for use of approved and
correspondingly labeled abrasive
wheels with hand-held machines as per
EN13236 (diamond) or EN12413
(composite resin). Note maximum
permissible speed of the abrasive wheel
– risk of accident!
The abrasive wheels, which have been
developed by STIHL in cooperation with
renowned manufacturers of abrasive
wheels, are of high quality and tailored
precisely to the respective intended use
as well as the engine performance of the
cut-off machine.
They are of consistently outstanding
quality.
Transport and storage
– Do not expose abrasive wheels to
direct sunshine or other thermal
stresses during transport and
storage
– Avoid jolting and impacts
– Stack abrasive wheels flat on a level
surface in the original packaging in
a dry place where the temperature
is as constant as possible
– Do not store abrasive wheels in the
vicinity of aggressive fluids
– Store abrasive wheels in a frost-free
place
002BA563 AM
002BA559 AM
1
2
180BA024 AM180BA025 AM180BA026 AM
3
4
Cutting Wheels

Stihl TS 420 Specifications

General

Engine Power	4.4 bhp
Weight	21.2 lbs
Arbor Size	20 mm
Maximum Wheel Size	350 mm
Maximum Cutting Depth	125 mm
Displacement	66.7 cc (4.1 cu. in.)
Fuel Capacity	710 cc
