Stihl TS 420 Instruction Manual

TS 410, TS 420
English
27

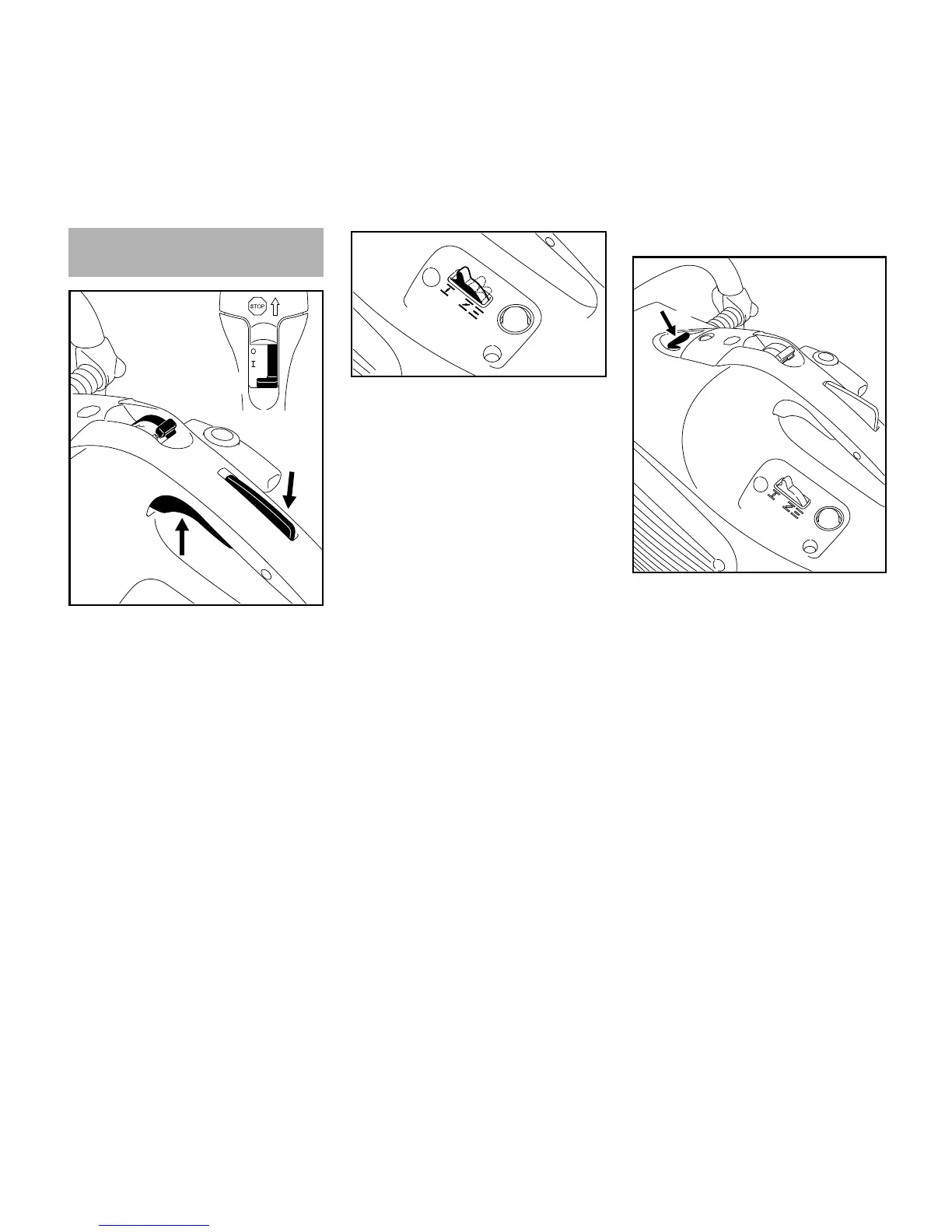

N Press throttle trigger lockout(1) and
throttle trigger(2) simultaneously
N Hold both triggers down
N Move the slide control(3) to START
and hold it in position too
N Release the throttle trigger, slide
control and throttle trigger lockout in
succession – starting throttle
position
N Set the choke(4) according to the
engine temperature
Versions with decompression valve
N Press the button(5) of the
decompression valve before each
starting procedure
Starting / Stopping the
Engine
START
1
3
3
370BA020 KN
2
c If engine is cold
e if the engine is warm (even if the
engine is already running but is still
cold or if the warm engine was shut
off for less than 5min)
f if the engine is hot (if the hot engine
was switched off for longer than
5min)
370BA055 KN
Choke
4
5
370BA101 KN

Stihl TS 420 Specifications

General

Engine Power	4.4 bhp
Weight	21.2 lbs
Arbor Size	20 mm
Maximum Wheel Size	350 mm
Maximum Cutting Depth	125 mm
Displacement	66.7 cc (4.1 cu. in.)
Fuel Capacity	710 cc
