Stihl TS 420 Instruction Manual

TS 410, TS 420
English
28
For all versions

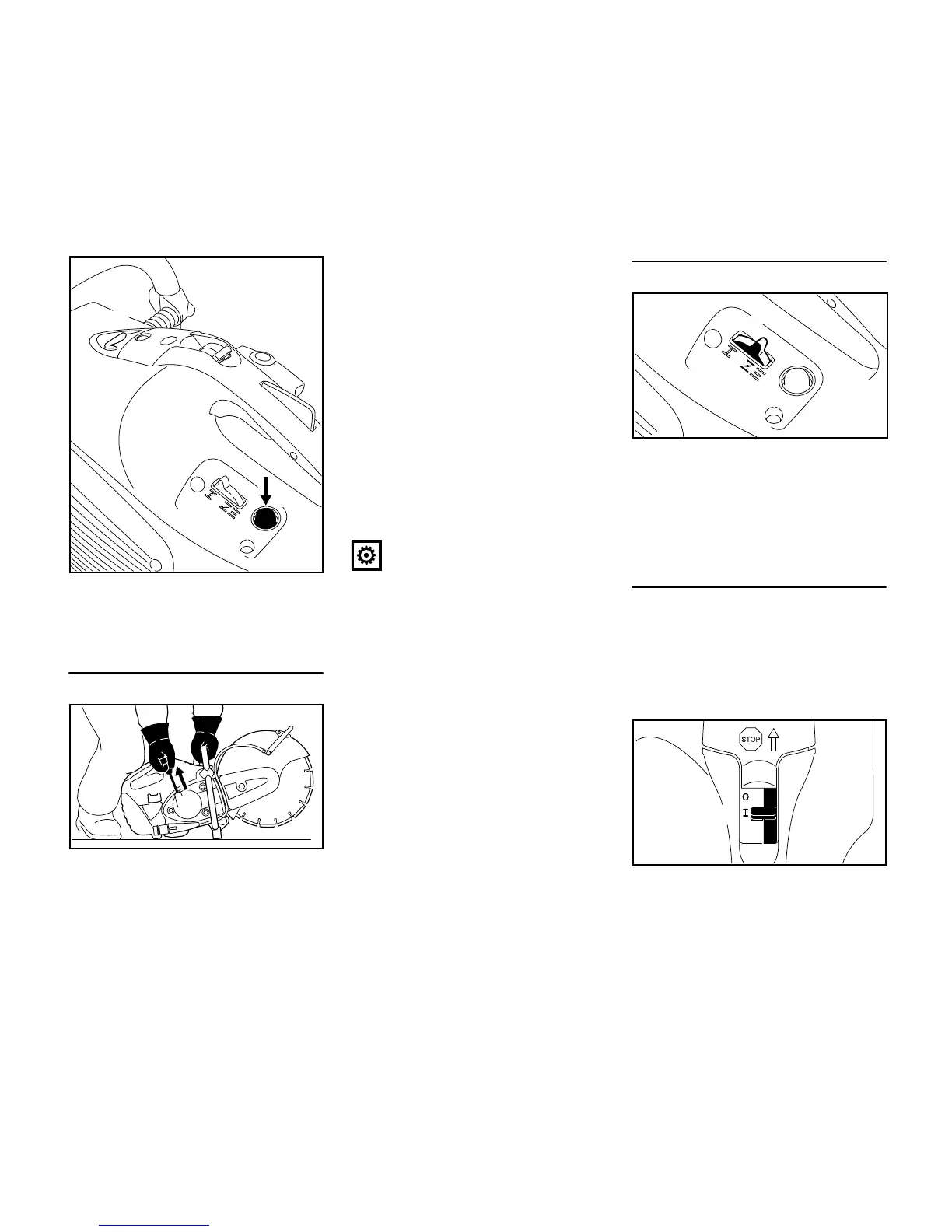

N Press the bulb(6) of the manual fuel
pump 7
-
10times – even when the
bulb is still filled with fuel
Starting
N Place the cut-off machine carefully
on the ground, ensuring that the
abrasive wheel cannot touch the
ground or any objects. There must
not be anyone within the swivel
range of the cut-off machine
N Make sure you have a firm footing
N Press the cut-off machine firmly
against the ground, holding the
handle with your left hand, thumb
wrapped round the handle
N Press the cut-off machine against
the ground with the right knee on the
shroud
N Pull the starter grip slowly with your
right hand until you feel it engage –
then give it a brisk strong pull – do
not pull out the starter rope all the
way
NOTICE
Do not let the starter grip snap back – it
may break! Guide it back into the
housing in the opposite direction so that
it can rewind properly.
When the engine has turned over for the
first time
N Set the choke lever(4) to f
N Press the button of the
decompression valve (depending
on version)
N continue cranking
Once the engine is running
N Squeeze throttle trigger fully and let
engine run at full throttle for
approx.30s
N When it has warmed up, set the
choke lever to e
N The slide control(3) moves to the
normal positionF when the throttle
trigger is squeezed
6
370BA102 KN
370BA092 KN
4
370BA057 KN
Choke
370BA058 KN
START
3

Stihl TS 420 Specifications

General

Engine Power	4.4 bhp
Weight	21.2 lbs
Arbor Size	20 mm
Maximum Wheel Size	350 mm
Maximum Cutting Depth	125 mm
Displacement	66.7 cc (4.1 cu. in.)
Fuel Capacity	710 cc
