Stihl TS 420 Instruction Manual

TS 410, TS 420
English
30

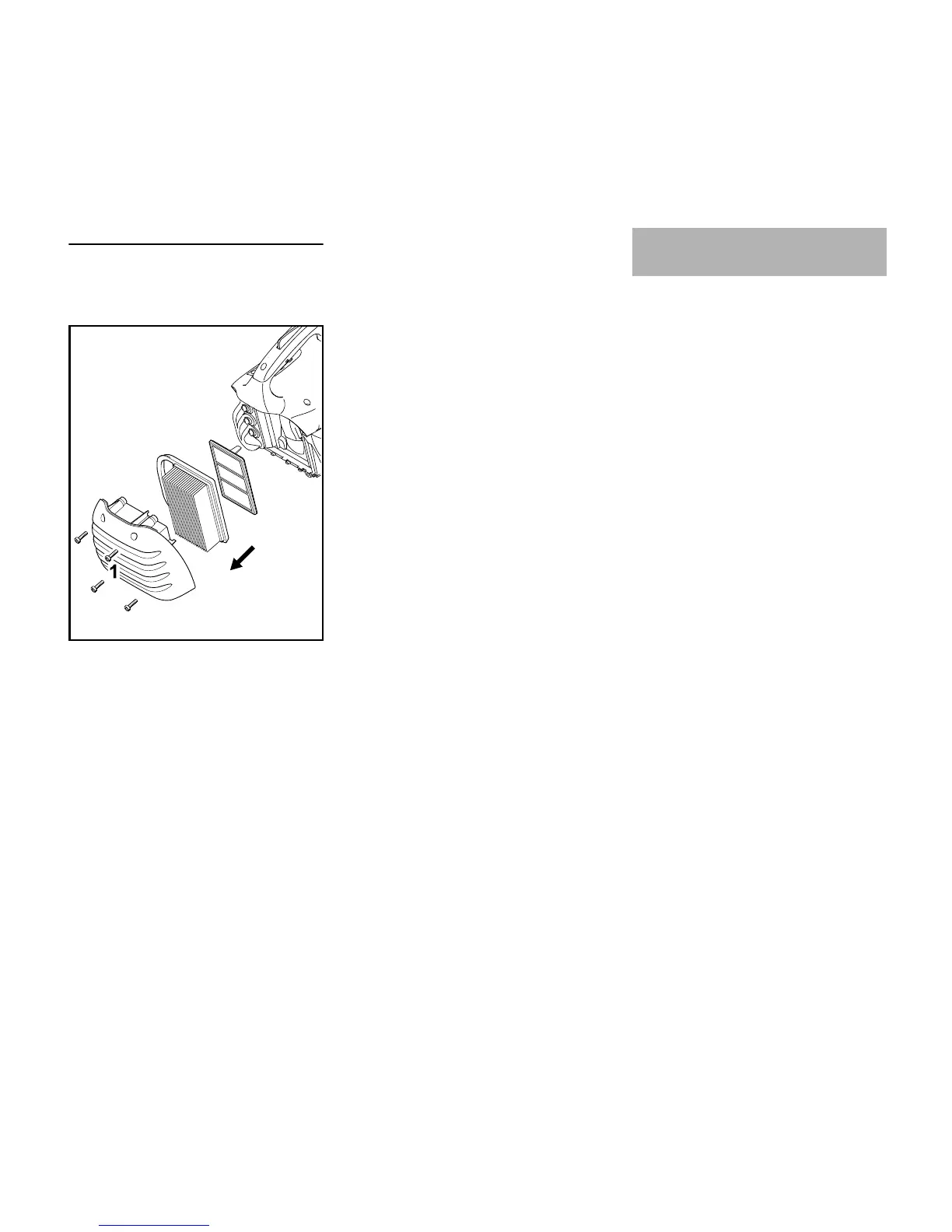

Replacing the air filter
Only if there is a noticeable loss of
engine power
N Choke lever to c
N Undo the screws(1).
N Remove the filter cover(2) and
clean it
N Remove the main filter(3)
N Remove the auxiliary filter(4) –
ensuring that dirt does not enter the
intake area
N Clean the filter area
N insert new auxiliary filter and new
main filter
N Refit the filter cover
N Tighten down the screws
Only high-quality air filters should be
used, to protect the engine against
ingress of abrasive dust.
STIHL recommends the use of genuine
STIHL air filters. The high quality of
these parts will ensure troublefree
operation, a long service life for the
engine and extremely long filter life.
Exhaust emissions are controlled by the
design of the engine and components
(e.g. carburation, ignition, timing and
valve or port timing).
1
2
3
4
370BA028 KN
1
1
Engine Management

Stihl TS 420 Specifications

General

Engine Power	4.4 bhp
Weight	21.2 lbs
Arbor Size	20 mm
Maximum Wheel Size	350 mm
Maximum Cutting Depth	125 mm
Displacement	66.7 cc (4.1 cu. in.)
Fuel Capacity	710 cc
