Stihl TS 420 Instruction Manual

TS 410, TS 420
English
34

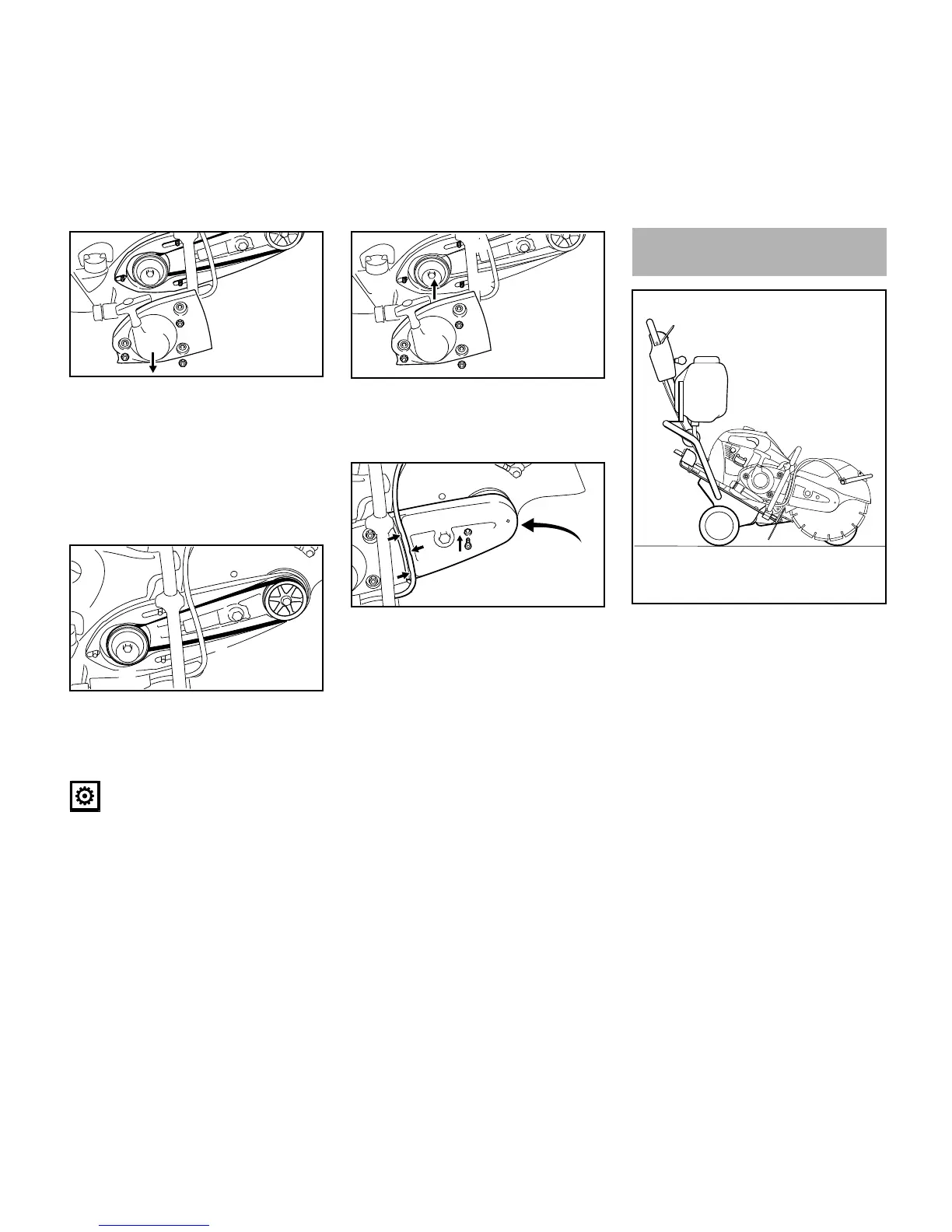

N Unscrew the nuts(1)
N Remove the starter cover(5)
N Do not remove the "cast arm and
guard"(6) – hold it in place on the
studs until the starter cover is fitted
back in position
N Remove the defective V
-
belt
N Carefully insert the new V
-
belt(7)
on the V
-
belt pulley(8) on the
engine and the front V
-
belt
pulley(9)
NOTICE
The belt action must run smoothly.
N Fit the starter cover(5) over the
studs(10)
N Tighten up the nuts(1) by hand
N Push the V
-
belt guard(4) into place
N Screw in the bolt(3) and tighten up
N Insert the water hose into the guide
in the V
-
belt guard (arrow) from the
shut-off cock towards the guard –
avoid tight radiuses
Continue as described in the chapter
“Tensioning the V
-
belt”.
The cut-off machine can be mounted on
the STIHL cut-off machine cart FW 20
(special accessory) in a few easy steps.
The cut-off machine cart makes it easier
to
– repair damaged roadways
– apply roadway markings
– cut expansion joints
6
370BA062 KN
1
5
1
1
7
8
370BA063 KN
9
10
1
10
10
370BA064 KN
1
5
1
4
3
370BA065 KN
Cut-off Machine Cart
1307BA027 KN

Stihl TS 420 Specifications

General

Engine Power	4.4 bhp
Weight	21.2 lbs
Arbor Size	20 mm
Maximum Wheel Size	350 mm
Maximum Cutting Depth	125 mm
Displacement	66.7 cc (4.1 cu. in.)
Fuel Capacity	710 cc
