Stihl TS 420 Instruction Manual

TS 410, TS 420
English
24
Removing a cutting wheel
N Use the combination wrench to
loosen and remove the hexagon
head screw(2)

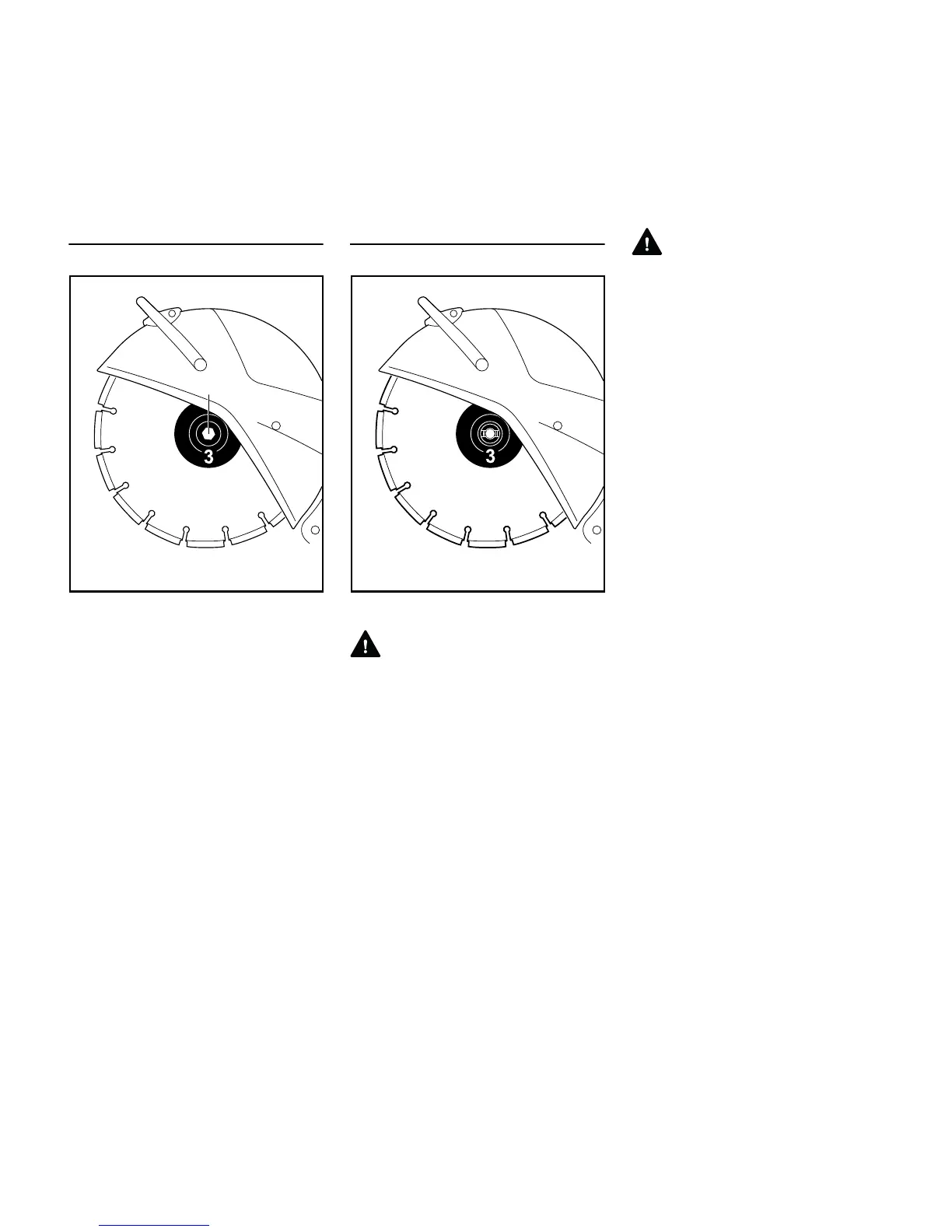

N Remove the front thrust washer(3)
from the shaft together with the
cutting wheel
Fitting a new cutting wheel
N Fit the new cutting wheel(4)
WARNING
Note the arrows indicating the direction
of rotation on diamond cutting wheels.
N Fit the front thrust washer(3). The
catches of the front thrust
washer(3) must engage in the shaft
grooves.
N Screw in the hexagon bolt and
tighten it with the combination
wrench – if using a torque wrench,
refer to the "Specifications" for the
tightening torque
N Draw the locking pin out of the
V
-
belt guard
WARNING
Never use two cutting wheels at the
same time. The uneven wear creates a
risk of breaking and an injury hazard!
2
370BA053 KN
370BA054 KN
4

Stihl TS 420 Specifications

General

Engine Power	4.4 bhp
Weight	21.2 lbs
Arbor Size	20 mm
Maximum Wheel Size	350 mm
Maximum Cutting Depth	125 mm
Displacement	66.7 cc (4.1 cu. in.)
Fuel Capacity	710 cc
