3: EXTERNAL DATA LINK led (red)
This led is red when external data link is selected
as External data link. It starts to blink when there
is data transfer ongoing.
4: GSM/WCDMA Network led (green):
The led is on when the network module is selected
as RTK data link. It starts to blink when receiving and
transforming data. (download in rover mode and
upload in base mode).
5: BLUETOOTH led (blue):
Once S10A is connected with the controller this led
will switch on.

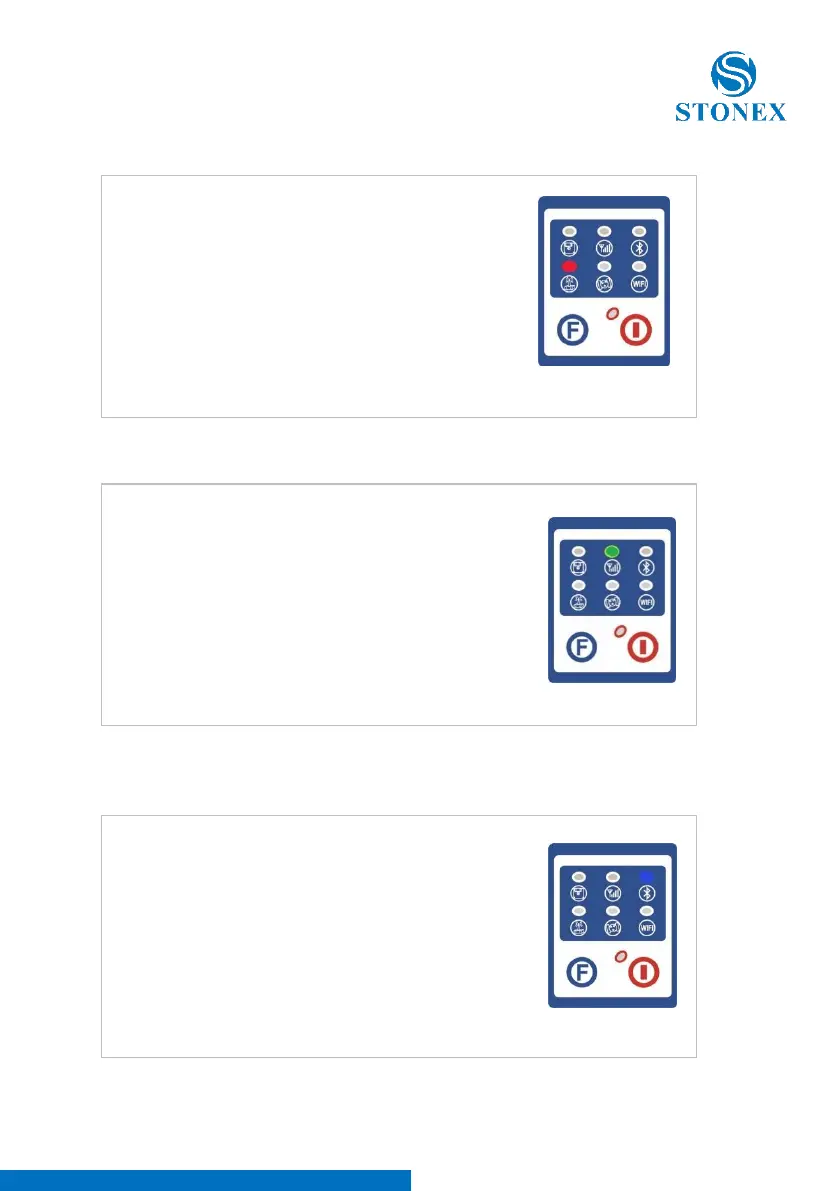

Fig. 2.6 - S10 Network led
Fig 2.7 - S10 Bluetooth led
Fig 2.5 - S10 External radio led
