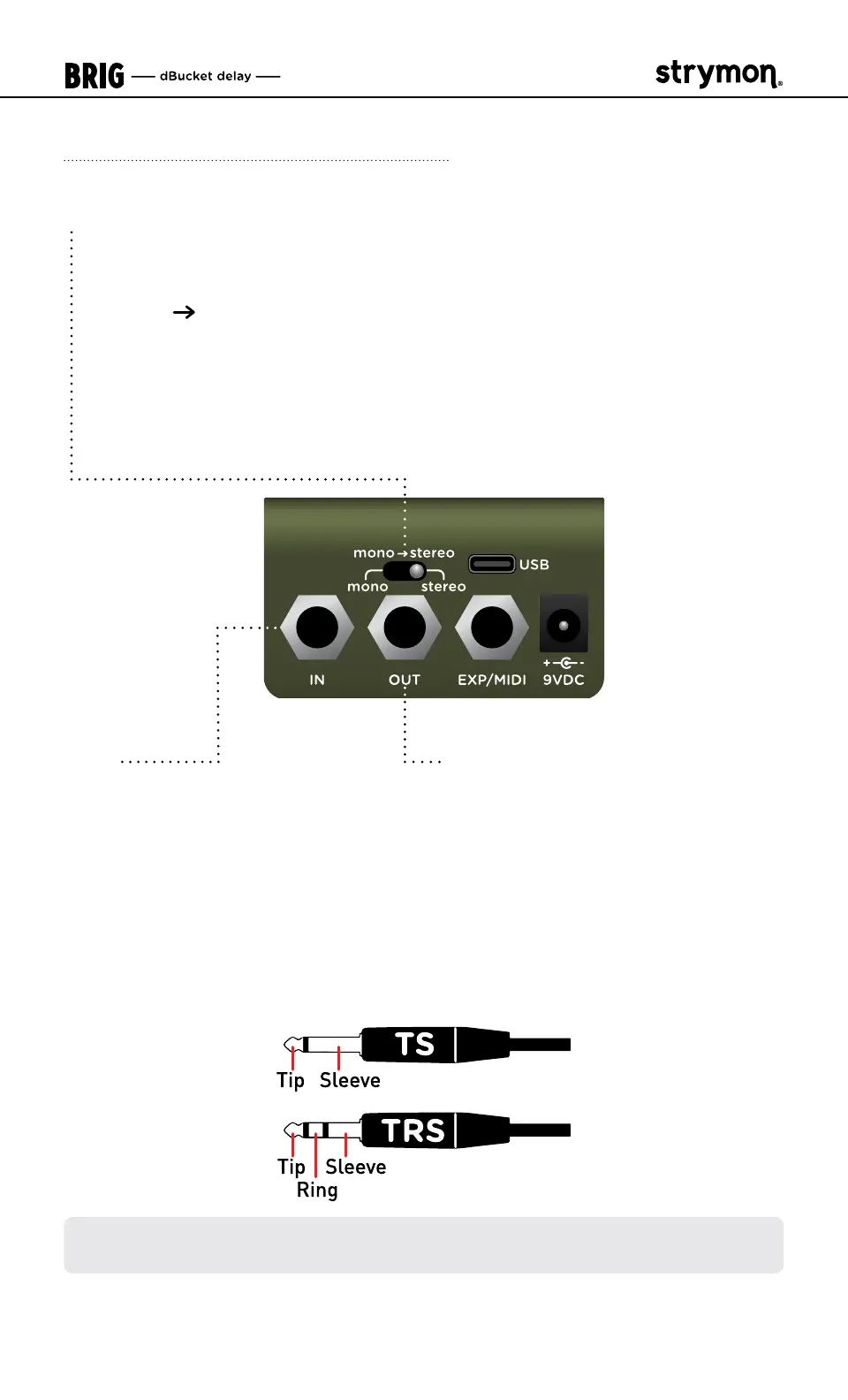

Rear Panel I/O and Control
I/O MODE SELECTOR
mono : (left position) use with a mono input signal, such as a guitar�
Output is mono� Defaults to True Bypass�
mono stereo : (middle position) use with a mono input signal�
Output is stereo� Bypass mode is Buffered Bypass�
stereo : (right position) use with a stereo input signal� Output is
stereo� Bypass mode is Buffered Bypass�
Stereo I/O requires a TRS adapter or cable� (See the following examples�)
IN
(TRS jack) High impedance,
ultra low-noise, discrete Class A
JFET stereo preamp�
OUT
(TRS jack) Low impedance
stereo output�
Mono and Stereo I/O Cable Connections
The Brig IN and OUT jacks can accept either TS or TRS type 1/4” cables
for mono or stereo connections, respectively:
NOTE: With a TRS stereo connection, the Tip carries the left signal and the
Ring carries the right
signal�
