Micro Series
Micro Series 1-5
Document generated:29.06.17
SW V1.1

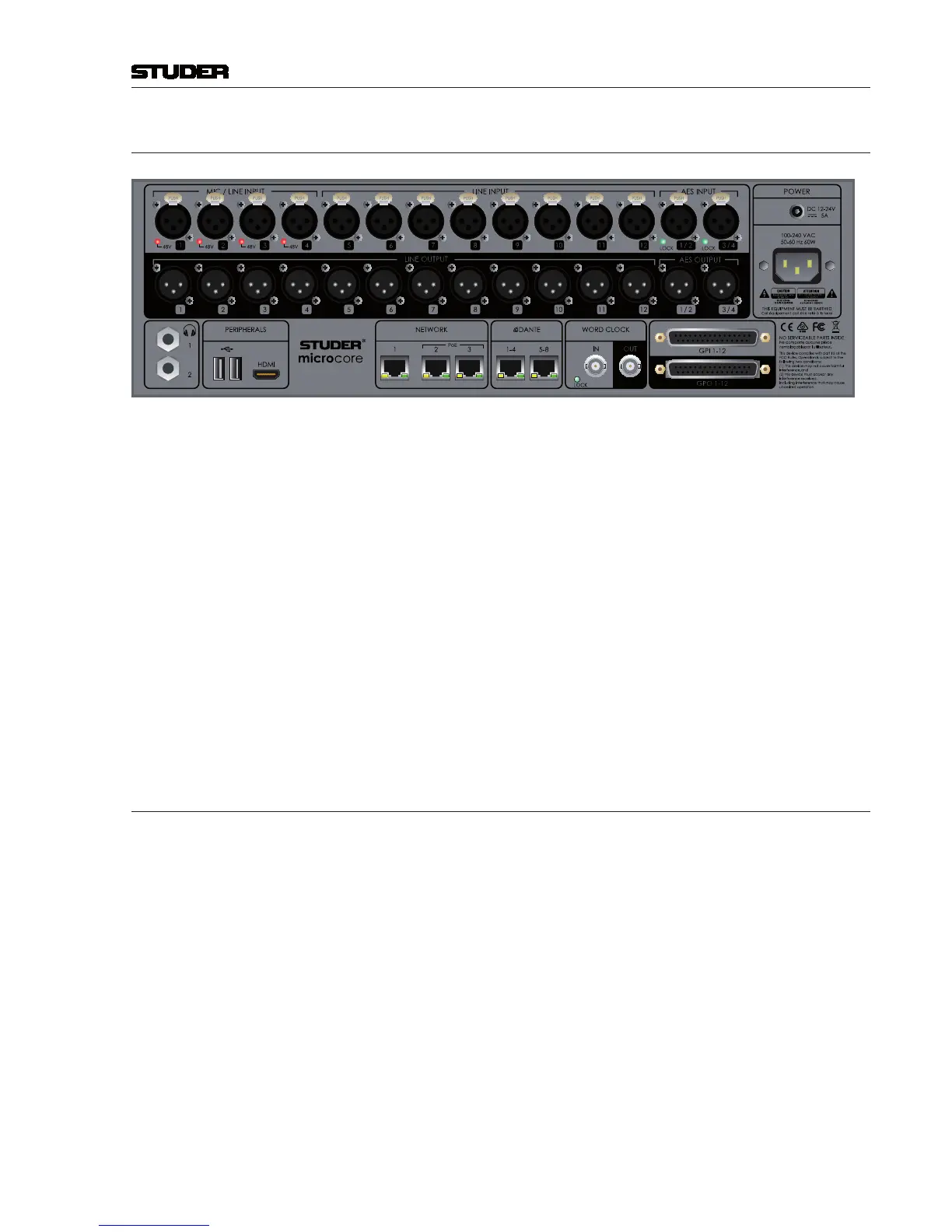

1.2.1.3 Rear side connectors
Discrete audio inputs 4 x balanced HQ Mic/Line inputs on XLR
8 x balanced Line inputs on XLR
2 x AES3 with SFC on XLR
Discrete audio outputs 12 x balanced line out XLR
2 x AES3 on XLR
2 x stereo headphones
Networked audio I/O 2 x AES67/Dante (4 audio channels each)
Other connectors Mains power
DC Power
Word Clock In and Out
GPIO
Ethernet
HDMI and 2x USB for GUI
2x RJ45 including PoE for Micro Fader modules
1.2.1.4 Mains Power
The Micro Core is primarily powered by an integrated wide-range AC power
supply with IEC type standard connector.
For mobile use (automotive battery) or power redundancy an additional DC
power input with lockable connector can also be found just above the AC
connector.
