1.7.3 Hookup Diagram Application 3 - Post Production
Analogue Audio
Digital Audio
Dante
GPIO
Ethernet
CR Mon
Speaker
CR Mon
Speaker
Micro Core
Word Clock
Control PC
R 128
Meter
DAW 1 DAW 2
WLAN Router
Tablet
Voice Over
Booth
Codec
Reverb

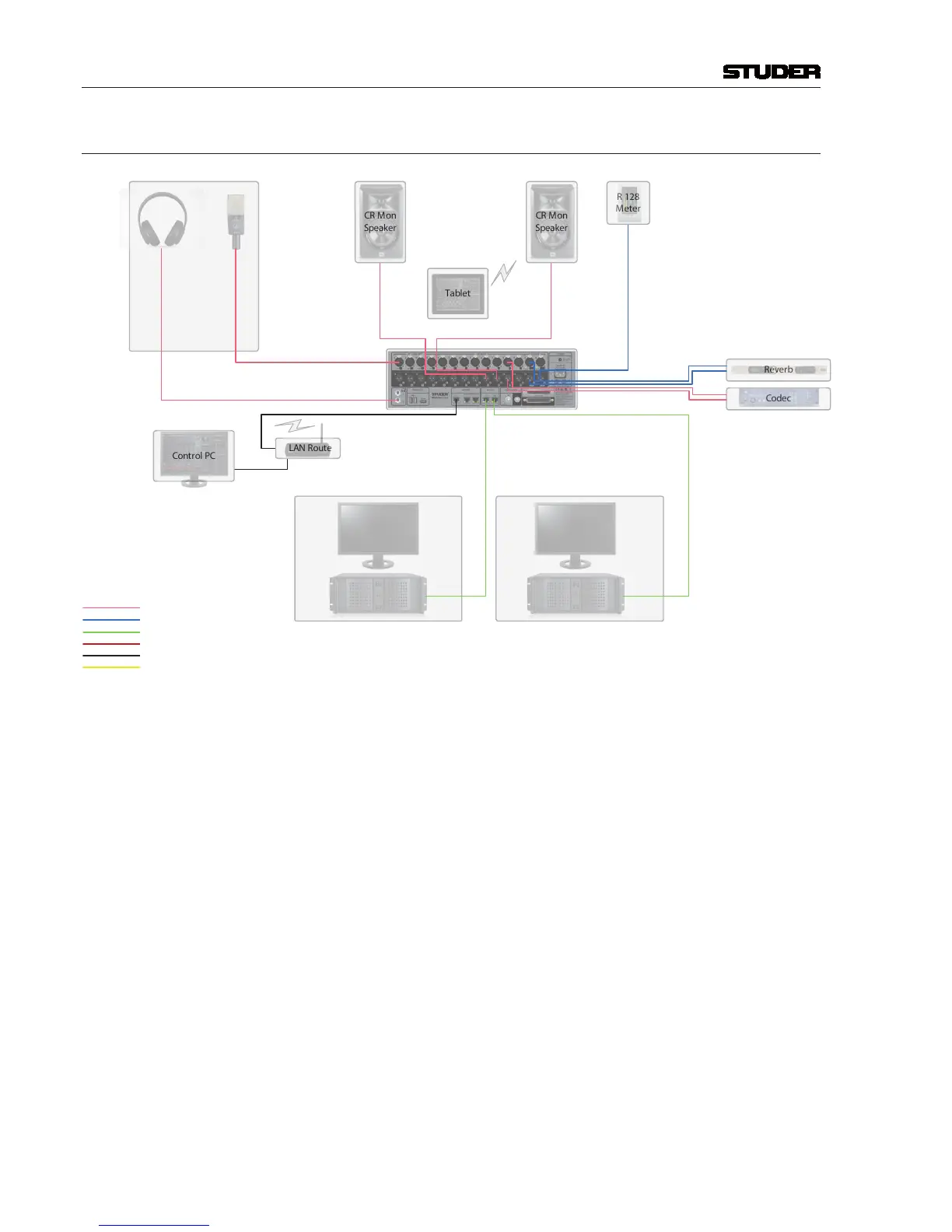

The diagram above shows an example of how the Micro Core could be con-
nected in a typical Post Production environment.
