2.1.9.3 TB External
There is one TB target, called TB to Extern. This target can be assigned to
any of the physical output ports. This can be done in one of the Bus Config
pages. See chapter 2.3.2.
Please note that more than one output port can the target for TB to Extern.
One the other hand - there is exactly one External TB Input. This External
TB source can be configured in the CR Config page, under the tab Source,
TB from Extern. See chapter 2.3.3.

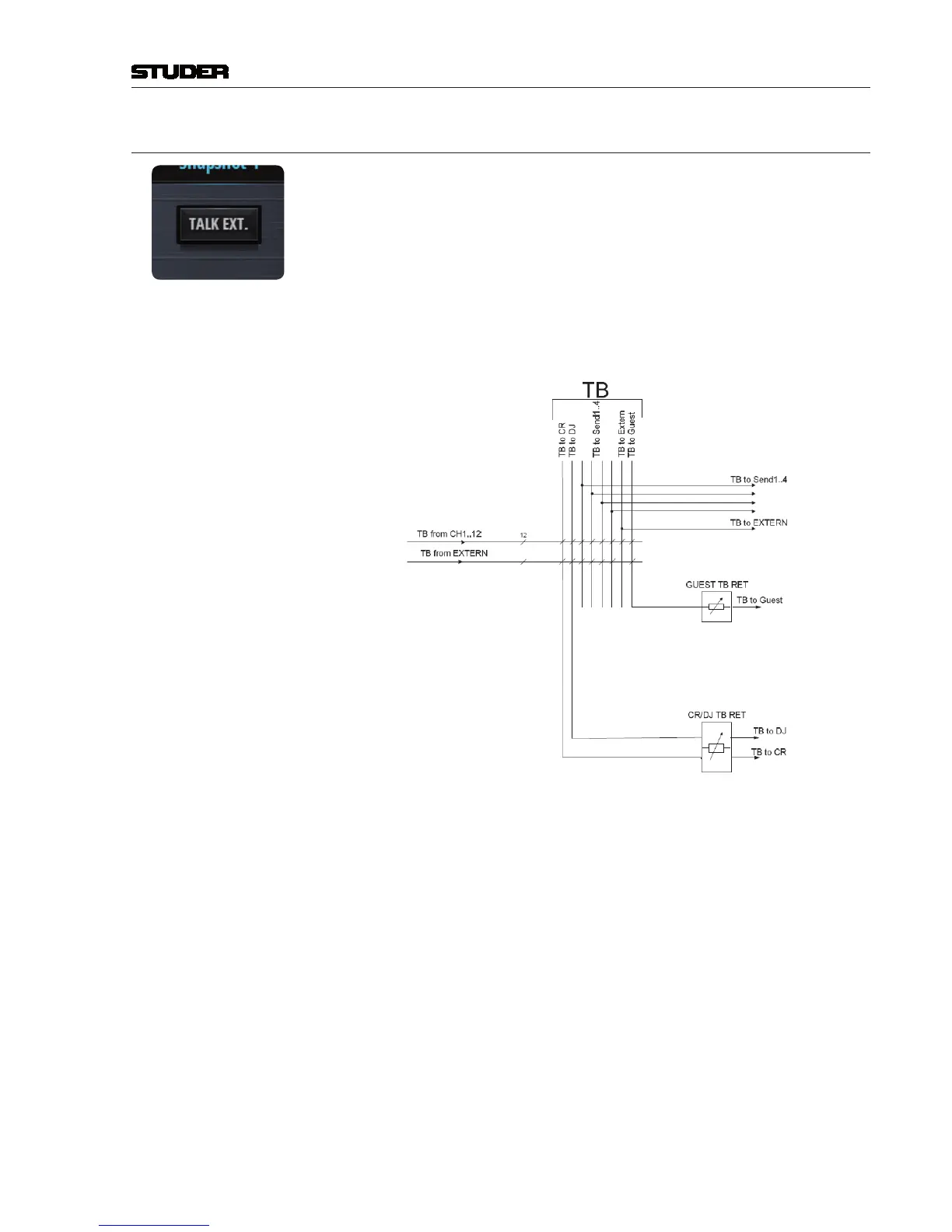

As an overview, here the TB blockdiagram is shown :
