2.3 L3 - The configuration level
2.3.1 Channel config

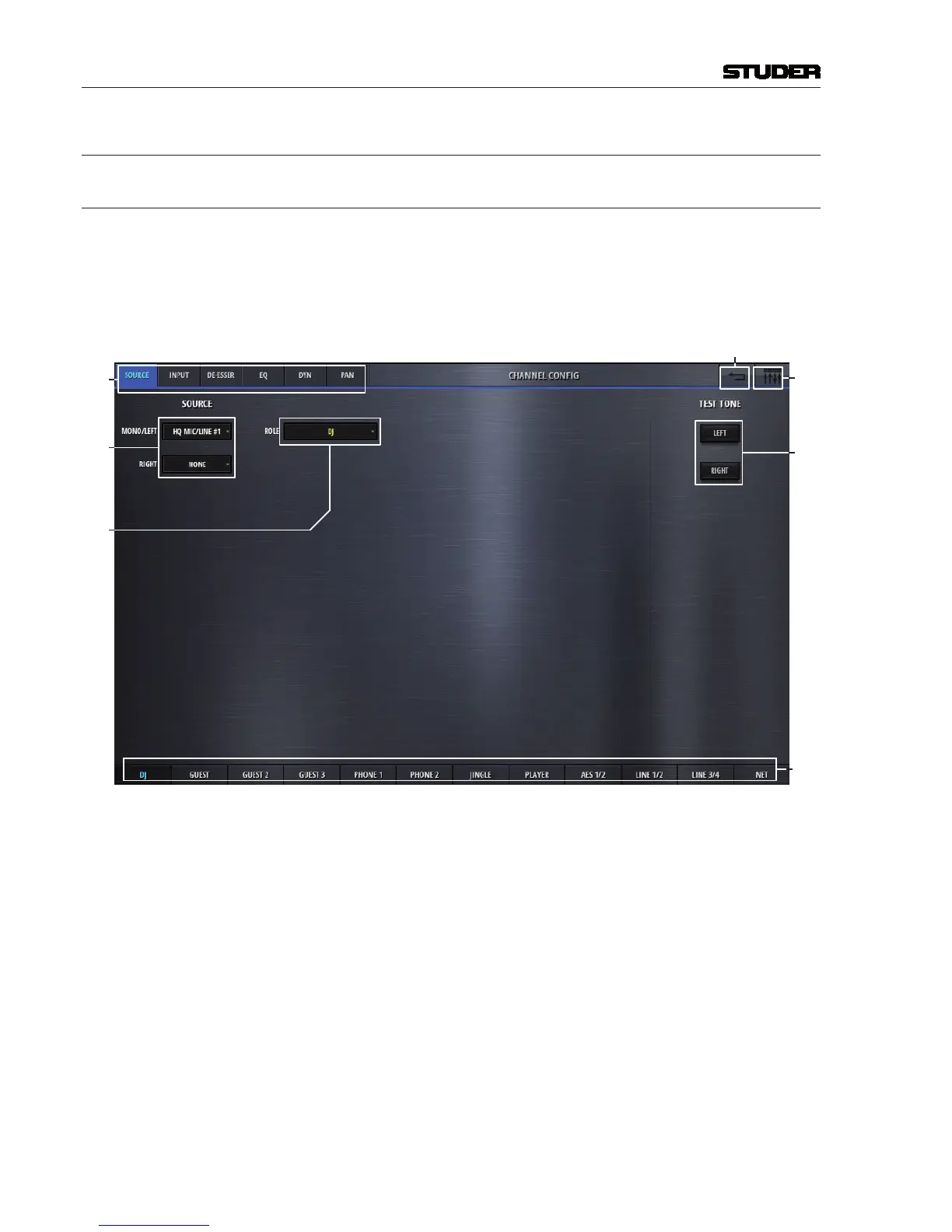

Clicking/touching the Config button in the channel options view allows
access to the channel config page. Six processing block selection tabs navi-
gate to a channels different processing sections.
The config page of the channels source section holds control elements nece-
sarry to set the channels source selection.
[1]
[2]
[4]
[7]
[6]
[3]
[5]
[1] Processing tabs These tabs lets the operator navigate to the desired processing block of a
channel.
[2] Source selection With these two pull-down menues, the source for the left channel leg, and
the source for the right channel leg can be selected. If for the right channel
leg the selection remains on “None”, then the channel is a mono channel. An
exception are the sources “USB” and “AES” - these sources are always stereo
sources and are only selected on the first pull-down menu.
[3] Channel role Here the role of the channel is defined. The choice is as follows :
Default - for a simple input channel, no special behaviour
DJ - for a mic source located in the control room (CR)
Guest - for a mic source located in the control room (CR)
Input for send 1 - the bus owner of a N-1 bus
Input for send 2 - the bus owner of a N-1 bus
Input for send 3 - the bus owner of a N-1 bus
Input for send 4 - the bus owner of a N-1 bus
