1.6 Hookup possibilites direct GUI Control
The simplest way of controlling the Micro Core is using the peripherial
interface where a screen and mouse and keyboard can be connected, without
any network in between.
OnAir Micro Base Unit
Screen with HDMI Input
USB Keyboard
USB Mouse
Note : Please pay attention that the external screen with HDMI input is able to show
the full image, and no ‘overscan’ is applied.
1.7 Applications
1.7.1 Hookup Diagram Application 1 - Radio OnAir Production
Dante Unit
Codec
Tel Hybrid 1
Intercom Matrix
Panel
Tuner
Flash Recorder / Player
CD Recorder / Player
OnAir
Redlight
Control PC
WLAN Router
Tablet
Headphone Headphone Headphone
Mic
Tel Hybrid 2
Mic
Mic
DJ GUEST 1 GUEST 2
Dante Unit
Analogue Audio
Digital Audio
Dante
GPIO
Ethernet
PSTN
Panel
Panel
Internet
HP
AMP
Faderstart
TB Button TB Button
CR Mon
Speaker
CR Mon
Speaker
Micro Core

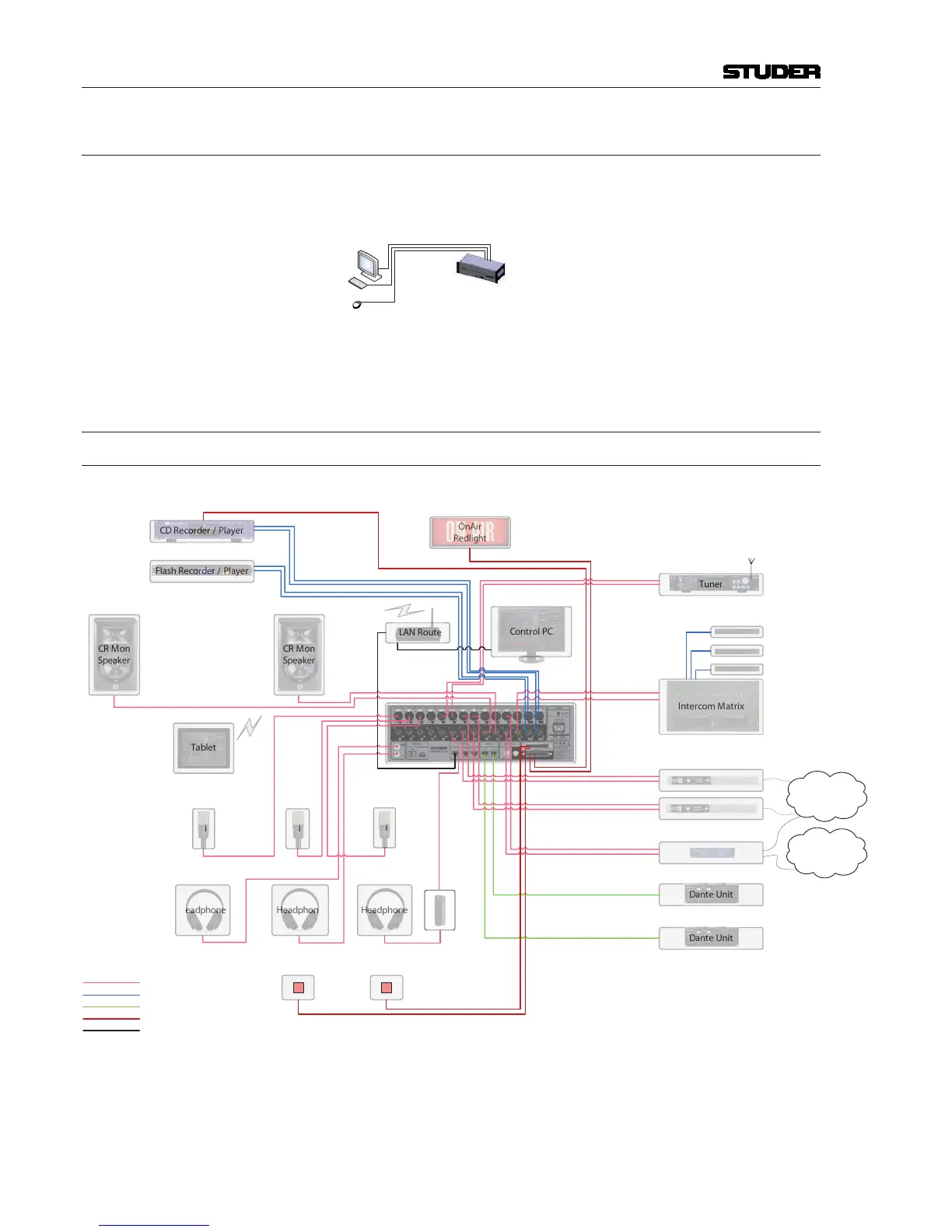

The diagram above shows an example of how the Micro Core could be con-
nected in a typical OnAir Radio production environment.
