Micro Series
Micro Series 1-31
Document generated:29.06.17
SW V1.1
2.1.9.2 User Snapshots
A User Snapshot contains all parameters of the system, except from the
parameters of the Settings section.

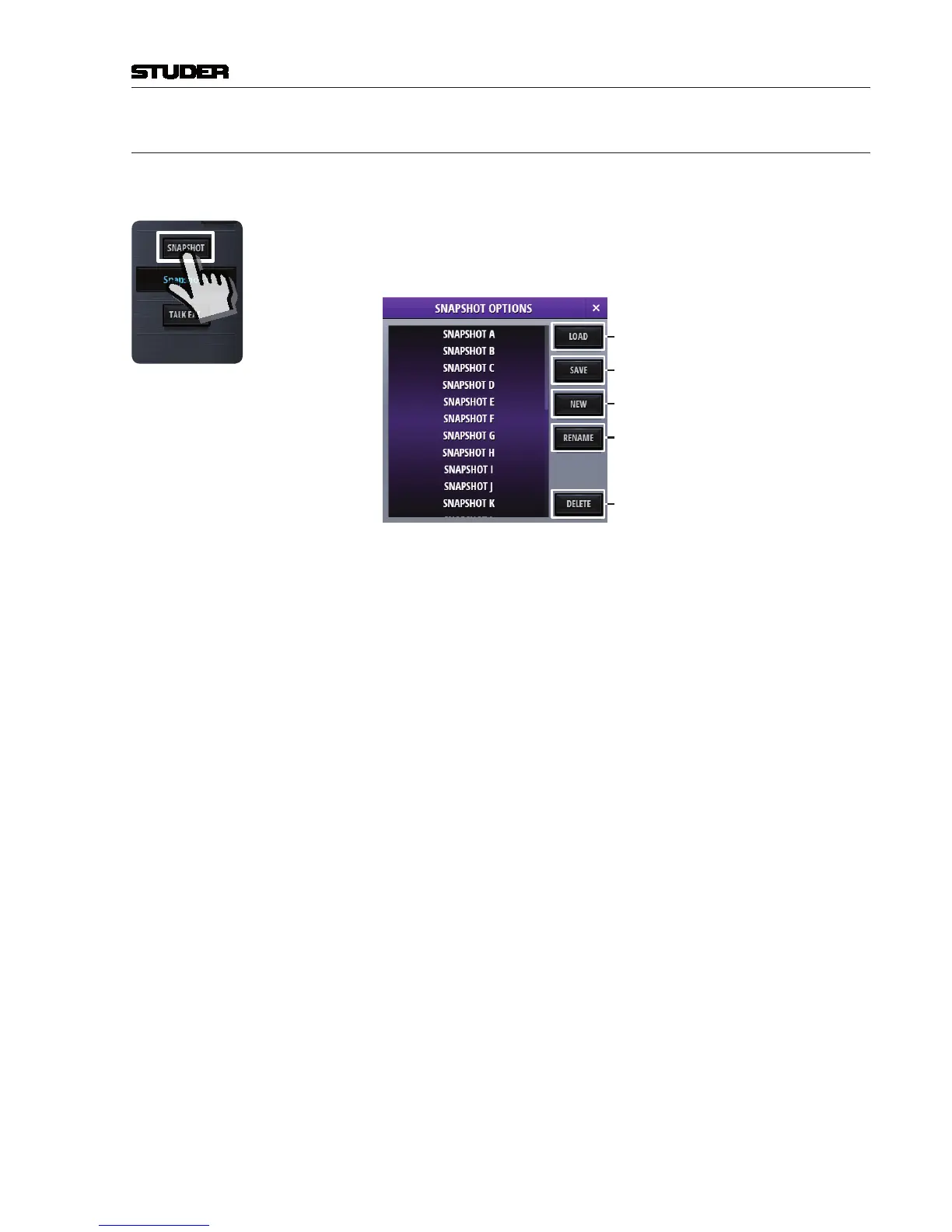

By Clicking/touching the Snapshot button, the snapshot options window
opens and allows to load or save snapshots.
With the buttons on the right side, snapshots can also be renamed or deleted.
[1]
[2]
[3]
[4]
[5]
[1] Load Recalls the selected User Snapshot and applies all parameters to the Micro
Core where channels that are currently OnAir are not affected. The button is
greyed out if no User Snapshot is selected.
[2] Save Overwrites the currently selected User Snapshot. The button is greyed out if
no User Snapshot is selected.
[3] New Creates a new User Snapshot capturing all parameters . A dialog opens asking
the user for a name for the new User Snapshot. If this name is already used,
the user has to confirm overwriting this snapshot in a further dialog
[4] Rename Renames the selected User Snapshot. The button is greyed out if no User
Snapshot is selected. A dialog opens asking the user for a new name.
[5] Delete Deletes the selected User Snapshot.
Pending Channels A channel that is On-Master cannot be overwritten by a User Snapshot. Such
a channel that should be updated from he snapshot, but is currently OnAir or
On-Master is called a pending channel.
Only after this channels fader is closed, or after deassigning it from the master
bus, the channels parameter are overwritten by the User Snapshot.
As soon as such a pending channel is no longer on a master bus, channel
parameters of the most recently loaded User Snapshot are applied to that
channel. This covers the case where subsequent User Snapshots are loaded
while channels are still pending and makes sure that the most recently loaded
User Snapshot is consistent.
Pending channels are indicated to the user in different ways:
•Inthechannellabeldisplay,thebluebackgroundcolourflashesonallpend-
