2.1.7 Meter View

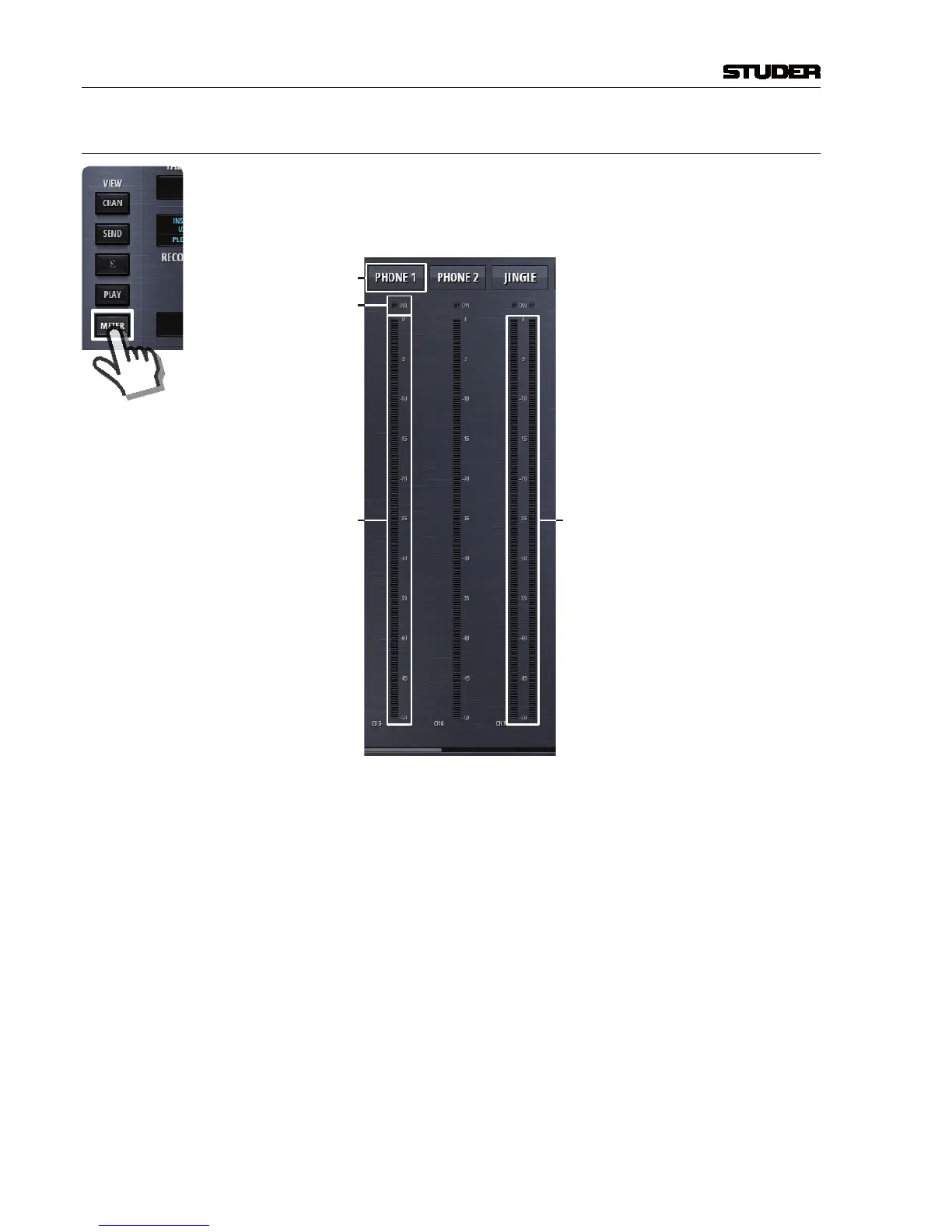

The meter view shows the meter bargraphs of all input channels. Navigation
is similar to navigating with the channel faders.
[1]
[2]
[3] [4]
[1] Label The label display shows the send channels name. This name can be entered
in the Options page of the send channel.
[2] OVL Indicator The overload indicator is used to indicate analogue input clipping (A/D con-
verter), which means overload is never illuminated for digital sources. For
channels with analogue inputs, OVL is illuminated as soon as the input level,
before input calibration, reaches 0dBFS.
[3] Mono Meter The meter of a mono input channel. The meter scale is digital with 0dBFS at
the top.
[4] Stereo Meter The meter of a stereo input channel. The meter scale is digital with 0dBFS at
the top.
