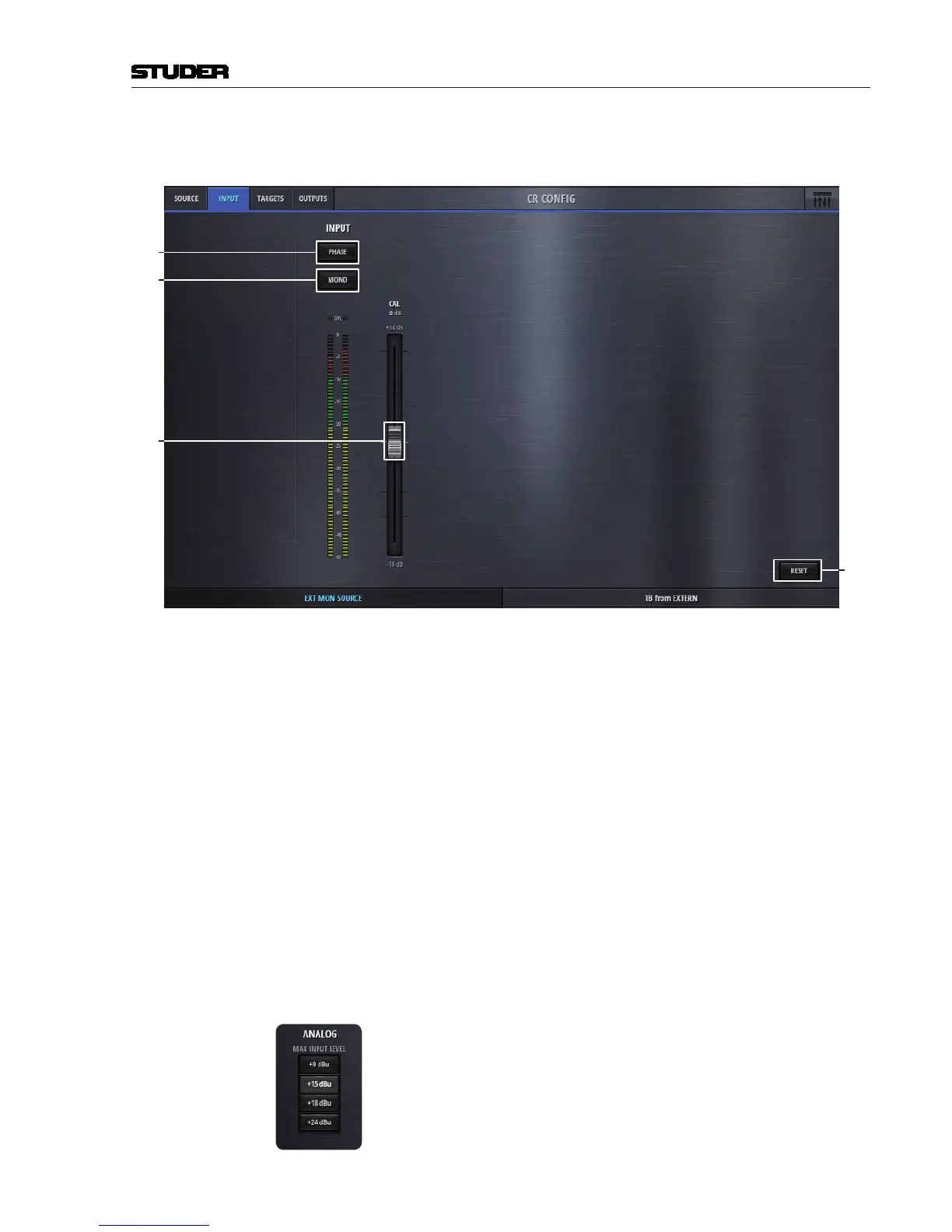

On the Input tab of the CR Config page, the input parameters of the two
selected source-signals can be set.
[1]
[4]
[3]
[2]
[1] Phase If the selected source signal is a stereo signal, the Phase button is available.
This button inverts the phase of the left chanel.
[2] Mono Also for stereo sources - the Mono button mixes down the stereo signal to a
mono signal.
[3] Input Calibration The Cal fader allows to calibrate the signal within a range of +/- 18dB.
[4] Reset This button sets all values of this processing block to the default values.
If the channels source selection is a Mic source, then three more elements are
provided on the left side of the page. These are :
48V
Highpass Filter
Mic Gain
On channels with Line inputs as source, other control elements are displayed
in place of the Mic control elements.
Max Level The Max Level setting defines the systems reference line level for 0dBFS.
This is a global setting found on the Settings-page. But it can also be set on
a channel by channel basis. This setting needs to correspond with the actual
level calibration of the analogue input- and output interfaces. As a standard,
the Micro Core is shipped with all analogue levels calibrated to +9dBu. This
means that the highest possible analog signal that leaves the mixer is +9dBu.
And it also means, that signals which are higher than +9dBu will clip the A/D
converters.
