1.5 Hookup possibilities via Network

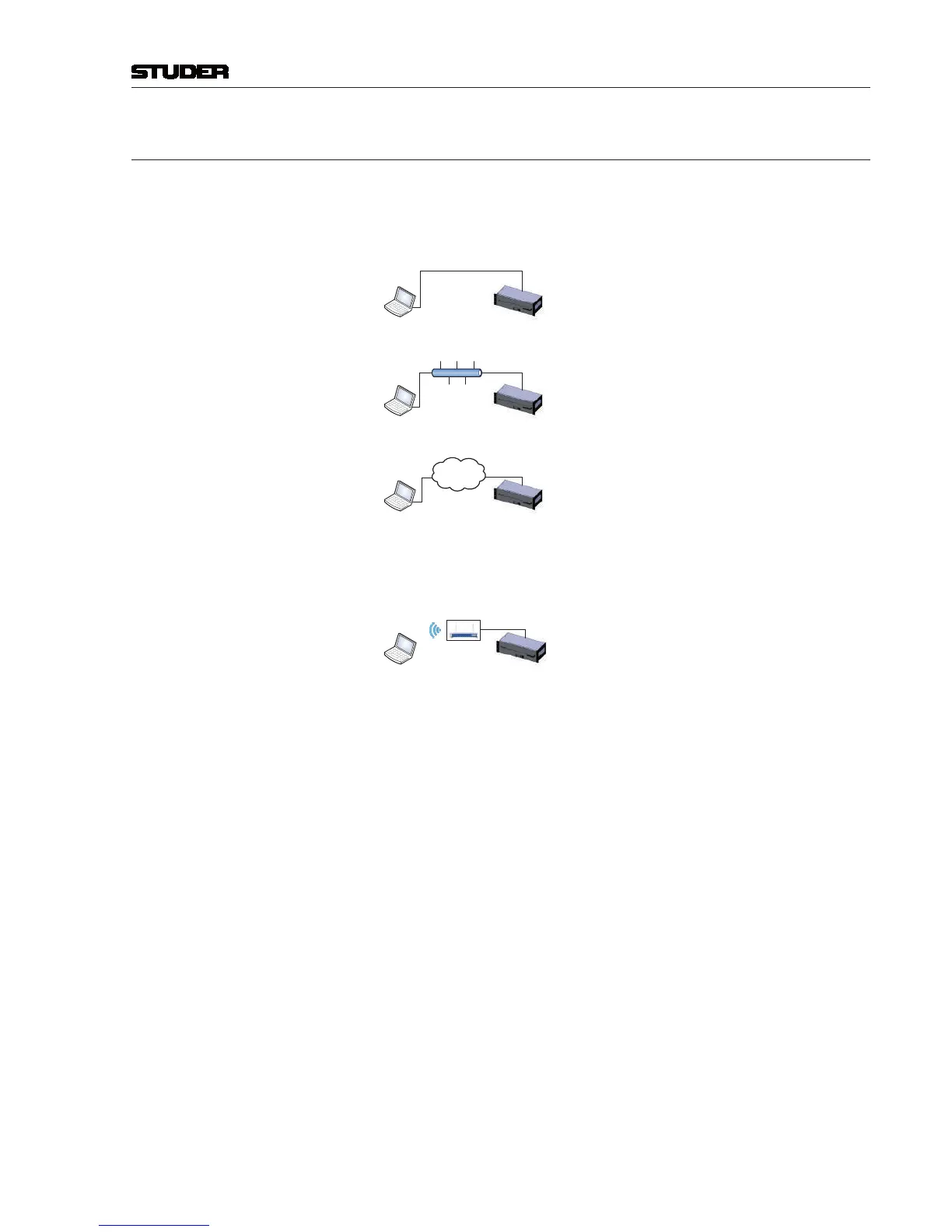

Ethernet A very secure way to control the Micro Core is to use a wired LAN connec-
tion. An ethernet cable between your control PC/Laptop and the Micro Core’s
network port 1 is all that is needed. This connection can also be made via a
corporate network, or even via Internet.
Corporate Network
Internet
OnAir Micro Base Unit
Control device
OnAir Micro Base Unit
Ethernet cable
Control device
OnAir Micro Base Unit
Control device
Of course the Micro Core can also be controlled by a wireless device when
connecting an external WLAN router to the Micro Core’s network port.
OnAir Micro Base Unit
Control device
WLAN Router
WLAN (not enabled in SW V1.0)
Internal Hotspot (not enabled in SW V1.0)
