2.3.3 CR Monitoring Config
Clicking/touching the Config button in the CR Monitoring options view
allows access to the CR config page. Five selection tabs navigate to the dif-
ferent sections.

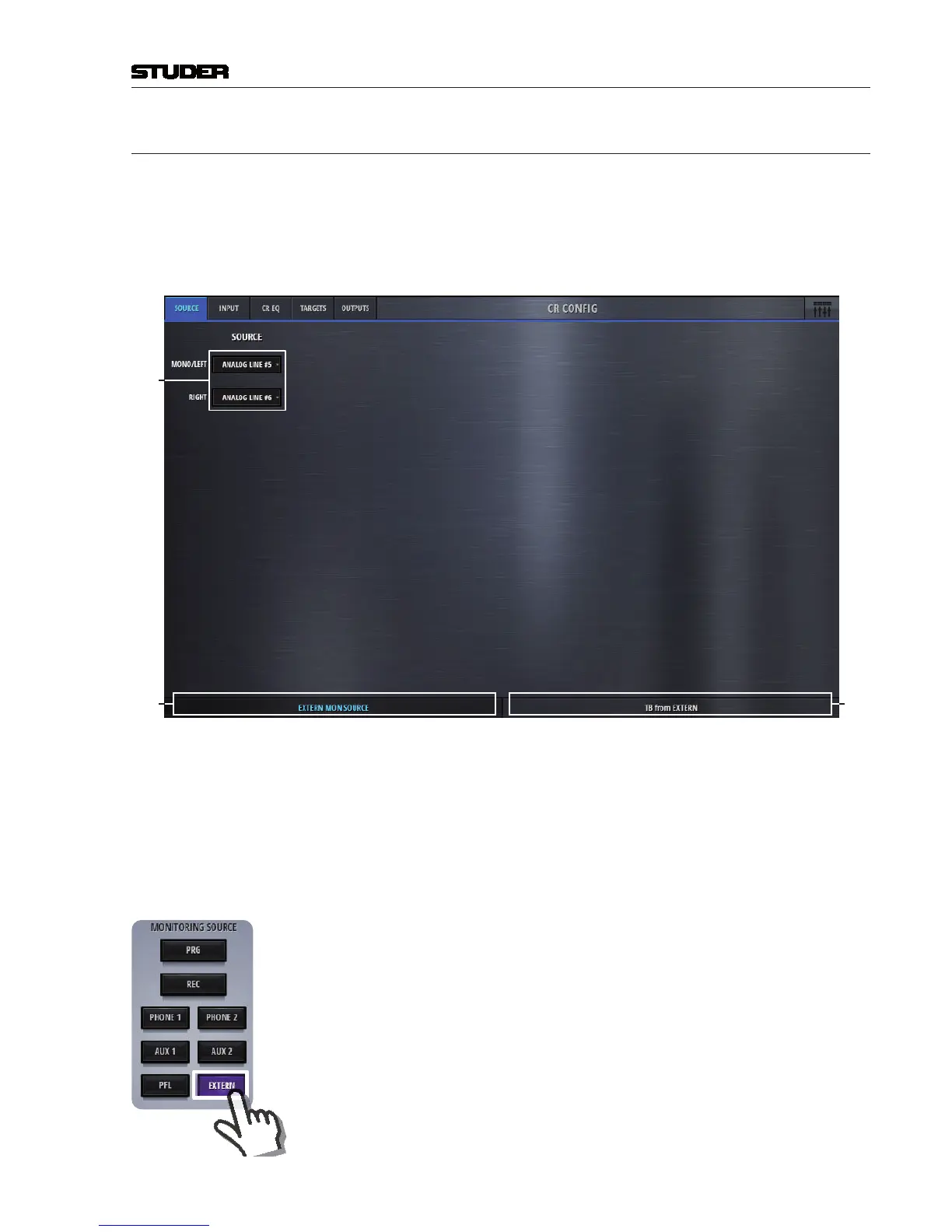

The config page of the Source section holds control elements necesarry to
selecte a source for two different purposes.
[1]
[3]
[2]
[1] Source Here, a mono or stereo source can be chosen for two different purposes :
External Monitoring Source
TB from Extern
Depending on the selected tab :
[2] External Monitoring Source The signal that is selected here becomes the external monitoring source. It
will be active on the CR monitor when the corresponding button is pressed.
