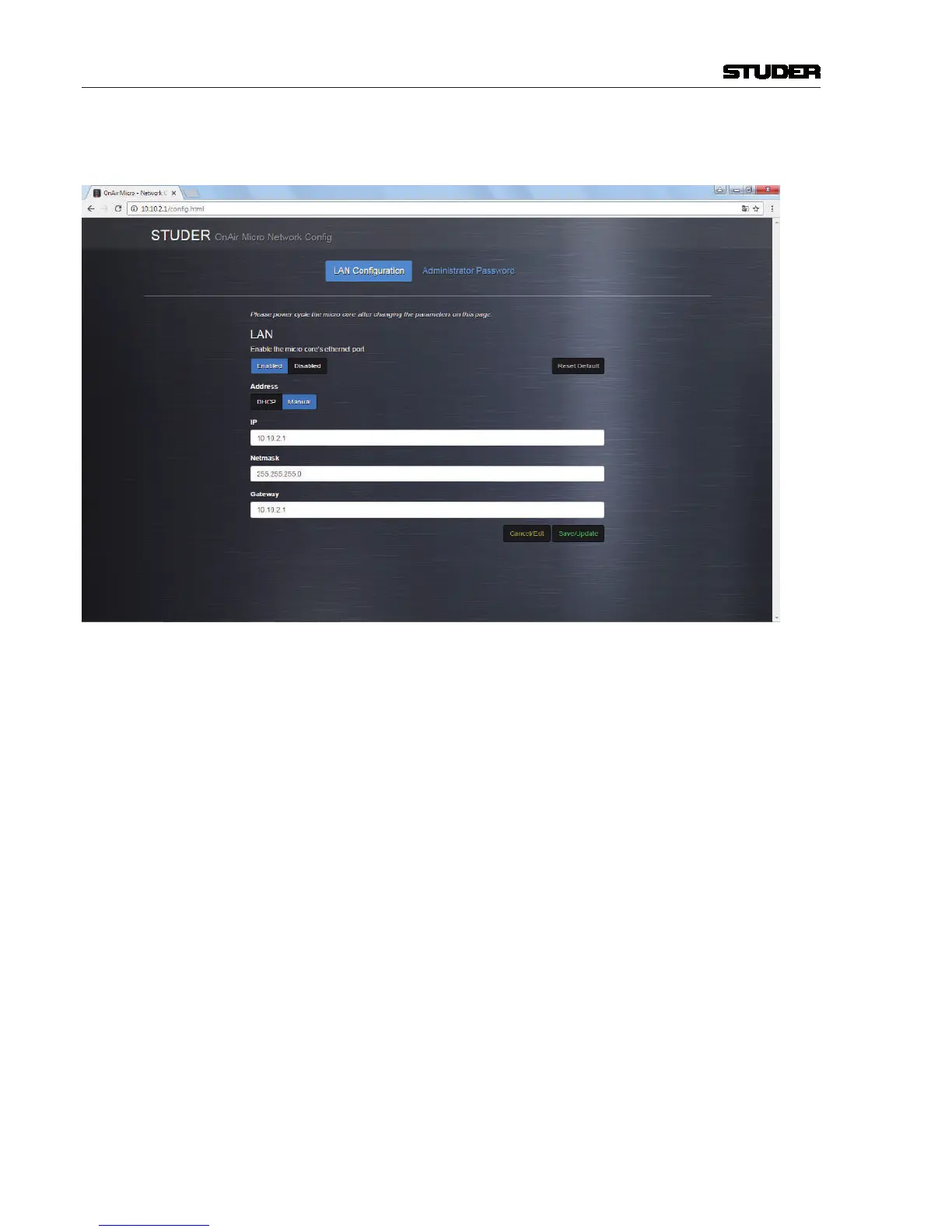

LAN Configuration Page
Enable/Disable This page allows to enable or disable the LAN network. The LAN section
can be active in addition to the Hotspot/Wi-Fi section.
Address Lets you chose wether the IP address is automatically received from the net-
work (DHCP), or wether it is a manually entered, fixed address.
IP If a manuall IP address is chosen, it must be entered here.
Netmask This is the submask of the manually enetered IP address (normally
255.255.255.0 )
Gateway Here a gateway address can be entered if needed.
Please note that the network section of the computer device that is used to
control the Micro Core must be configured to match the LAN settings that are
entered here. The IP address must be different from the Micro Core’s address,
but ist must be in the same subnet.
Example : When the Micro Core’s IP address and netmask is : 10.10.2.1 / 255.255.255.0
, then the computers address could be 10.10.2.5 - where the first three num-
bers of this address must be identical to the Micro Core’s address : 10.10.2.
