Micro Series
Micro Series 1-83
Document generated:29.06.17
SW V1.1
GPO’s There are many mixer internal functions and states that can activate a GPO :
Mixer internal functions that can switch a GPOutput are called Output Func-
tions.
Please refer to the table in chapter 2.4 for a complete description of all Output
Functions.

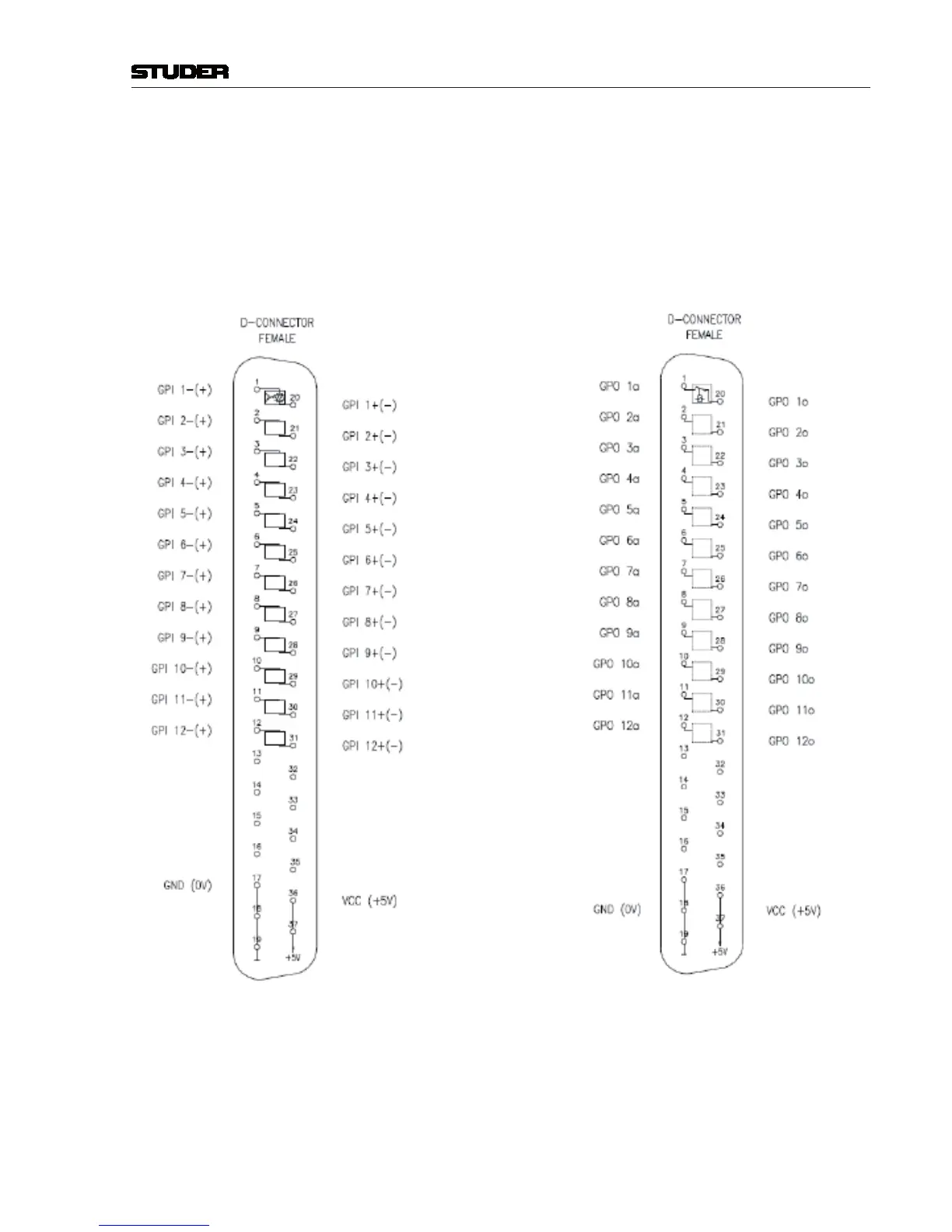

Connector Pinout :
