From the Operation Settings, you can choose a view of the fibers for the 5 stages of
the splicing process. (See ＊ marks in the picture below.)
・Fiber Insertion Screen
・Pre-Fusion Screen
・Arc Screen
・Post-Fusion Screen
・Est. Loss Screen

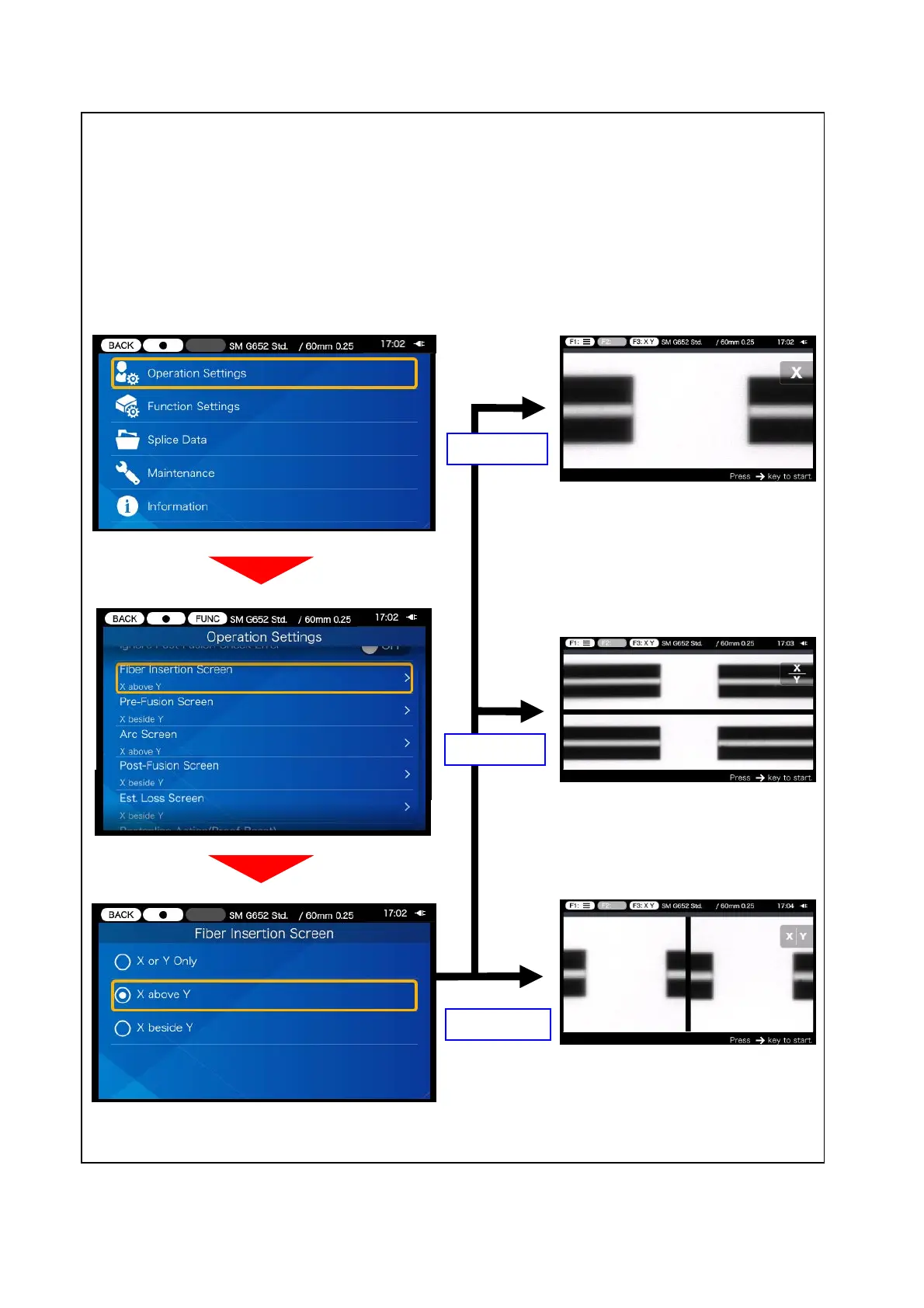

If “X or Y only” is selected, X
or Y screen is displayed on
the screen.
If “X above Y” is selected, X
and Y screens are vertically
displayed on the screen.
If “X beside Y” is selected, X
and Y screens are horizon-
tally displayed on the
screen.
<Screen indication>
X or Y onl
y
X above Y
X beside
Y
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
