SummaCut cutter User’s Manual
Setup 1-2
1.1.2 Setting up the machine with a stand
1. Verify that the stand and basket come with all the accessories.
The box containing the stand should contain following:
a. 2 legs
b. 2 feet
c. 1 horizontal panel
d. Bag of 4 casters, screws and other accessories to mount the stand

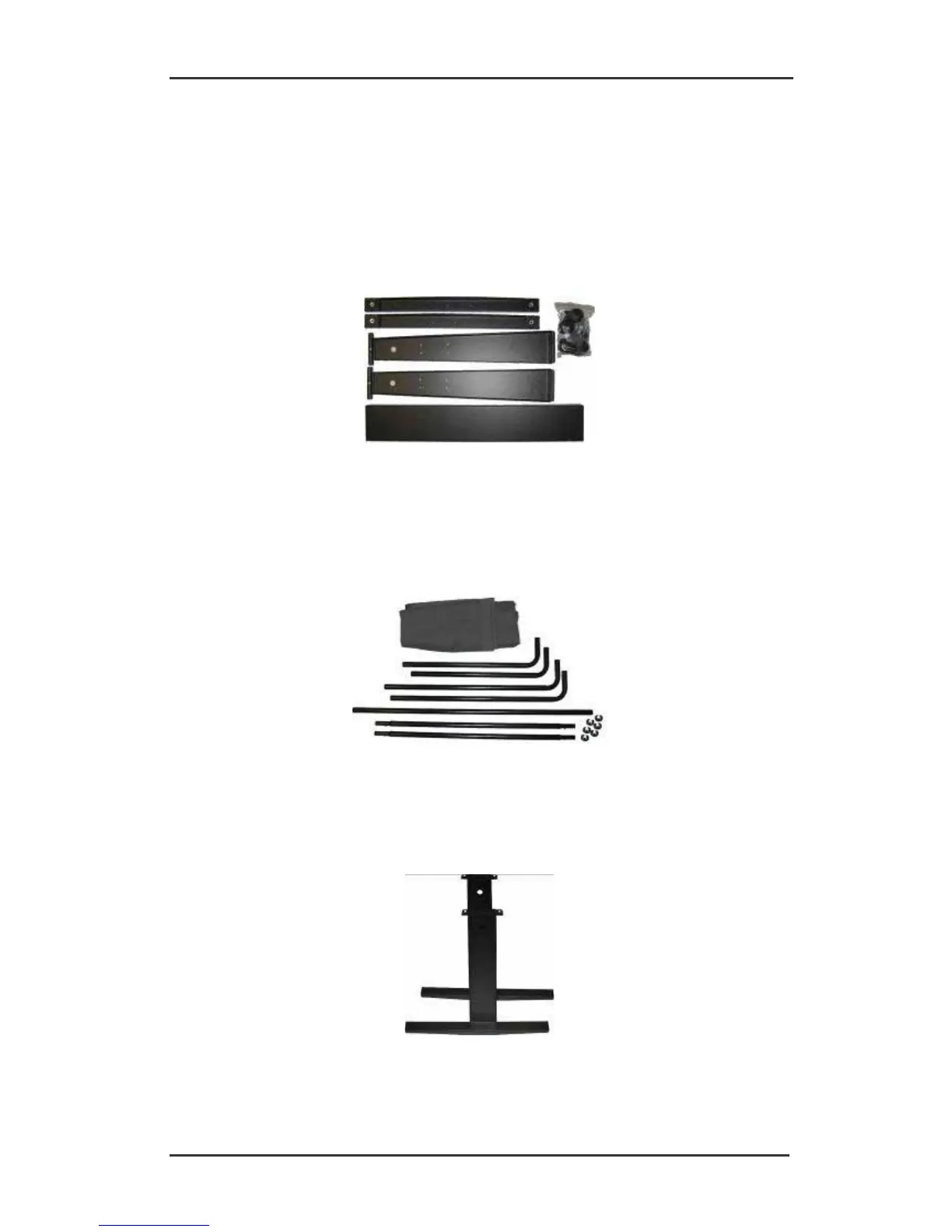

FIG 1-2
1-2 CONTENTS OF BOX STAND
2. The box containing the basket should contain following:
a. Total of 7 tubes for [media basket
b. Linen media basket
c. Bag of accessories to mount the basket
FIG 1-3
1-3 CONTENTS OF BOX BASKET
3. Mount on each leg a foot. Make sure that, if the legs are orientated the same way, on
one leg the long end is pointing in one direction and on the other one in the other
direction.
FIG 1-4
1-4 MOUNTING HORIZONTAL PANEL
