SummaCut cutter User’s Manual
Setup 1-20
1.6 Tool Installation
SAFETY WARNING: The SummaCut cutters use razor-sharp knives. To avoid serious injury,
use caution when installing, removing or otherwise handling the knife!
1.6.1 Knife installation
A knife has been pre-installed in the cutter.
For safety reasons, the knife depth has been set to zero. Simply turn out the knife (see fig 1-
22 yellow arrow clockwise) to start cutting. Below is the complete description of the knife
removal and knife installation.
¾ Removing the drag knife
1. Loosen the head clamp screw (1), swing the clamp arm back and remove the knife
holder from the clamp (2).

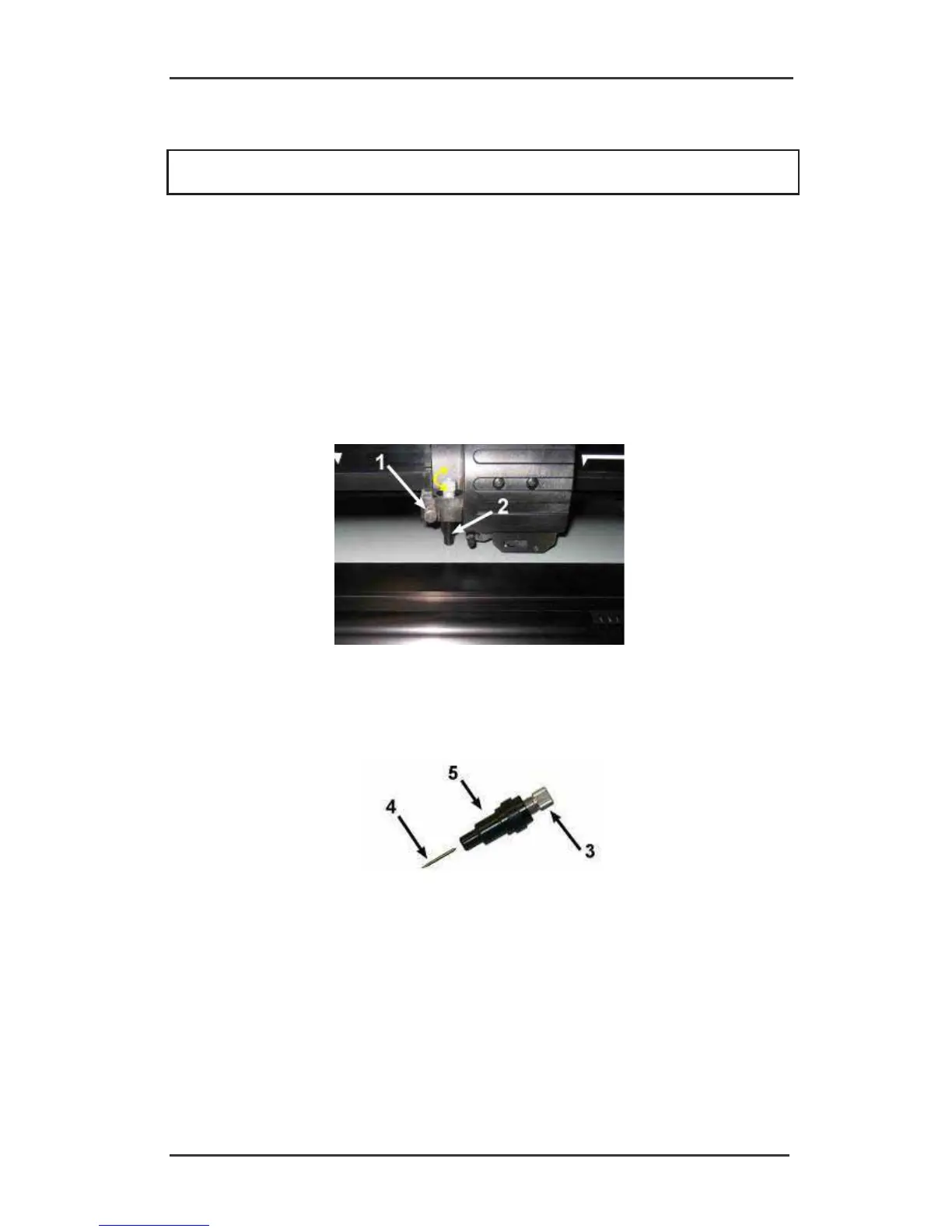

FIG 1-22
1-22 REMOVING THE DRAG KNIFE HOLDER FROM THE CLAMP
2. Turn the knurled adjustment knob (3) clockwise to push the knife (4) out of the holder
(5).
FIG 1-23
1-23 REMOVING THE KNIFE FROM THE STANDARD DRAG KNIFE HOLDER
3. Carefully pull the knife from the holder.
