SummaCut cutter User’s Manual
Setup 1-3
4. Mount the horizontal panel. Make sure that the hollow side is orientated to the same
side as the long ends of the feet (this would then be the rear).

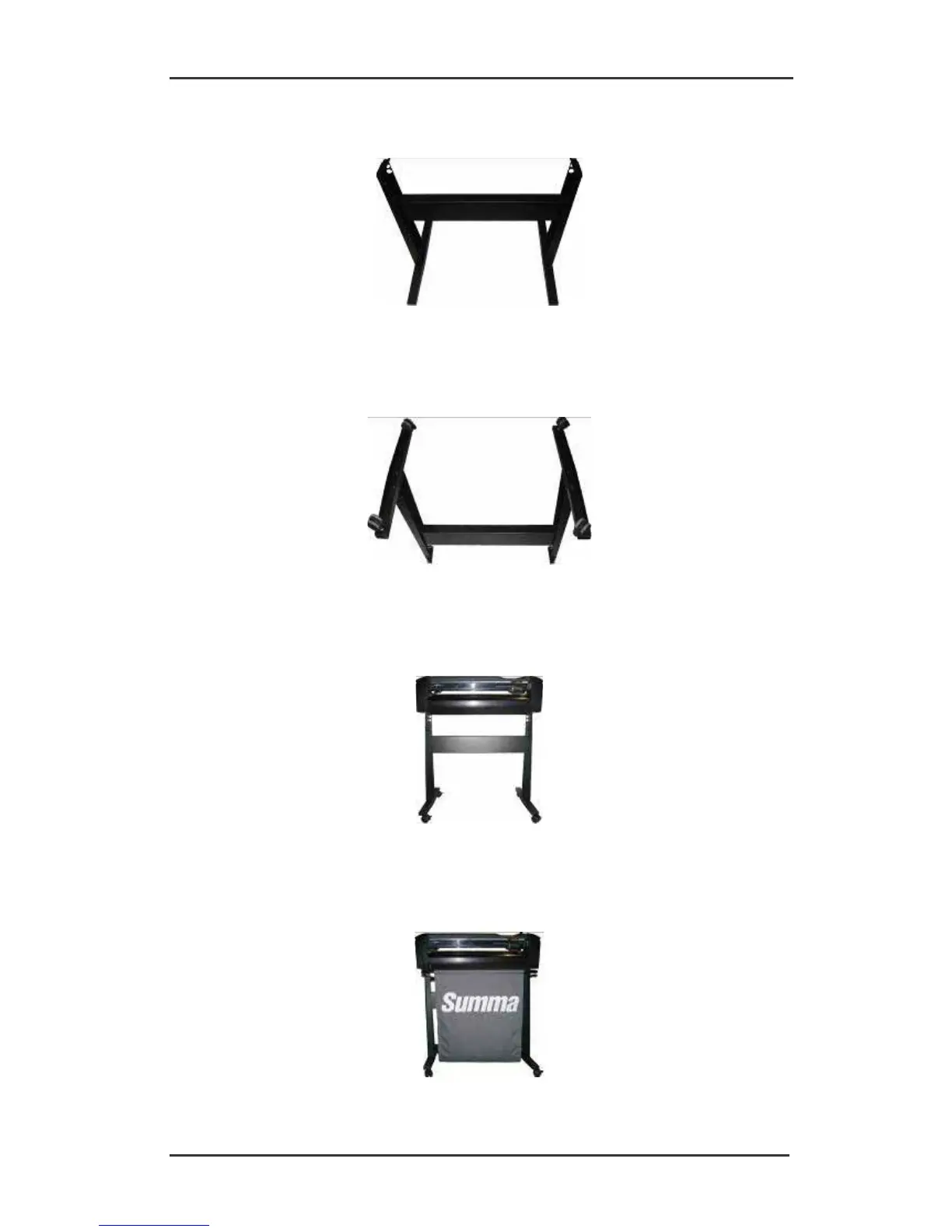

FIG 1-5
1-5 MOUNTING HORIZONTAL PANEL
5. Turn the stand upside down and mount the 4 casters (put the nut first in the casters,
then use the 12mm wrench.
FIG 1-6
1-6 MOUNTING THE 4 CASTERS
6. Turn the stand the right way up again and put the machine on the stand and secure
with 4 screws.
FIG 1-7
1-7 MOUNTING THE CUTTER ON THE STAND
7. Mount the basket. Make sure the long tubes are used at the rear. Put a saddle clip to
keep tubes in their place.
FIG 1-8
1-8 INSTALLING THE BASKET
