C300 series of non-sensor current vector-control inverter manual
[F2.0]
VC input
[F2.5]
Initial setting freq.
[F2.4]
[F2.1]
Actual setting freq.
Initial setting freq.
[F2.5]
[F4.8]
[F4.9]
t
Jog Freq.
[F4.10]
Jog signal
Jog Dec time
[F4.22]
Jog Freq.
[F4.10]
Jog Acc time
[F4.21]
Jog Acc time
[F4.22]
f
t
Jog signal
Jog Dec
[F4.2
1
Jog running is special running method of inverter.
Whatever the initial state of inverter stop or run, the jog signals will be received.
The transition form initial running freq. to jog freq. is act according to parameters
F4.21 and F4.22.
F4.10 Jog frequency Setting range：0.0 ~ Upper limit frequency

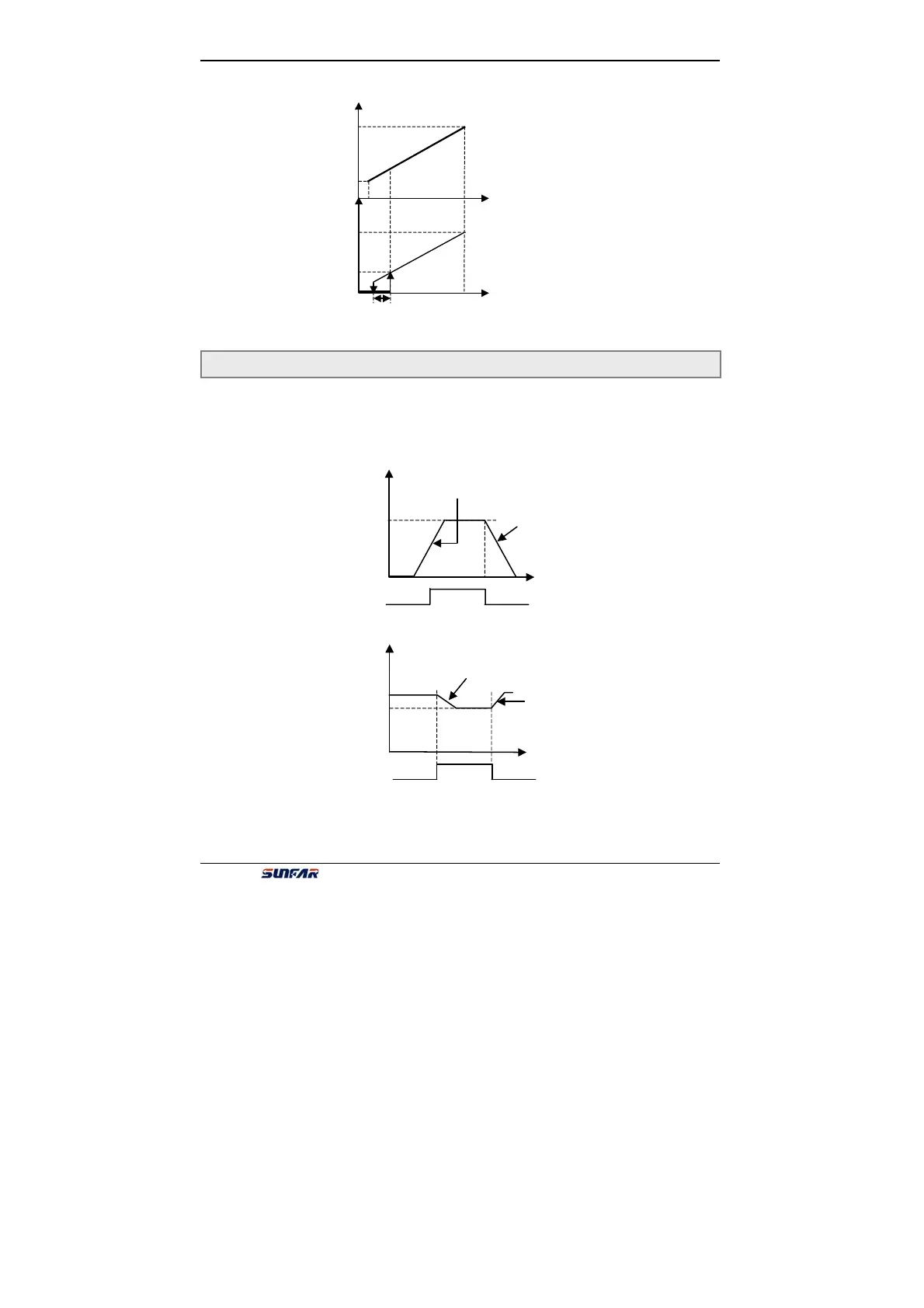

Fig6-17 freq. zero-crossing curve
Fig6-18 Jog running
