SINGLE PHASE HI 10/12kW | User Manual15
Battery Connection
For safe operation and compliance, a separate DC over-current protector or disconnect device is required
between the battery and the inverter. Switching devices may not be required in some applications, but
over-current protectors are still required. Refer to the typical amperage in the table below for the required
fuse or circuit breaker size.
Model Wire Size Cable (mm
2
) Torque Value (Max.)
10kW / 12kW 0AWG 55 24.5N.m

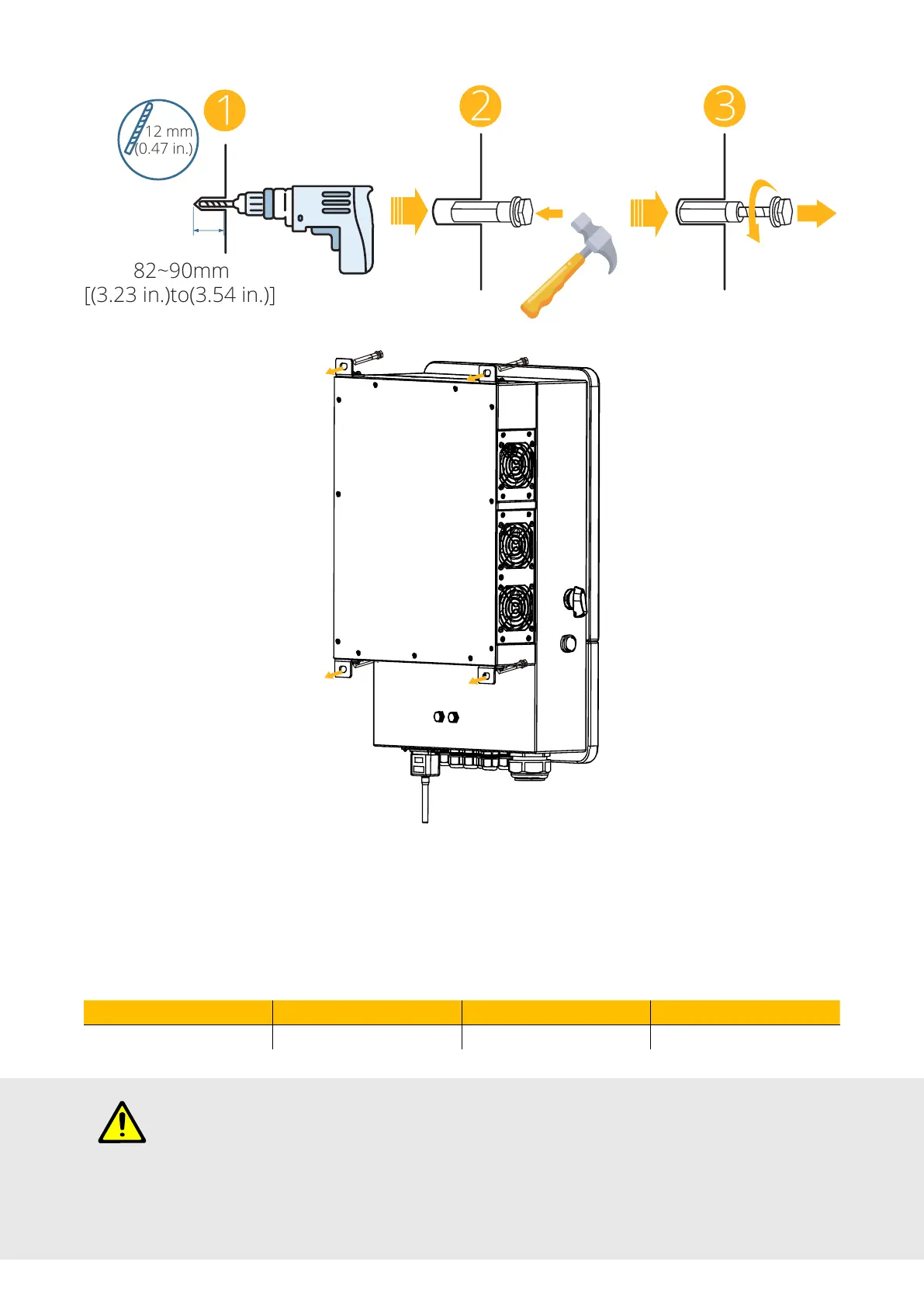

12 mm
82~90mm
[(3.23 in.)to(3.54 in.)]
(0.47 in.)
1
2 3
WARNING
All wiring/connecting must be performed by qualied personnel. Before making the nal DC
connection or closing the DC Breaker/disconnection device, ensure the inverter unit is wired
correctly. A reverse-polarity connection on the battery will damage the inverter.
To Next Page
