Please follow the below steps to implement battery connection:
Please choose a suitable battery cable with the correct connector which can well t into the battery
terminals.
Use a suitable screwdriver to unscrew the bolts and t the battery connectors in, then fasten the bolt
with the screwdriver, ensuring the bolts are lightened with a torque of 24.5 N.m in a clockwise direction.
Make sure the polarity at both the battery and inverter is correctly connected.
In case of children touching or insects entering the inverter. Please make sure the inverter connector is
fastened to a waterproof position by twisting it clockwise.
WARNING
Reverse Polarity.
Before making the nal DC connection or closing DC breaker/disconnect, be sure positive (+) must
be connected to the positive (+) and negative (-) must be connected to the negative (-). A reverse
polarity connection on the battery will damage the inverter.
DC Battery Input

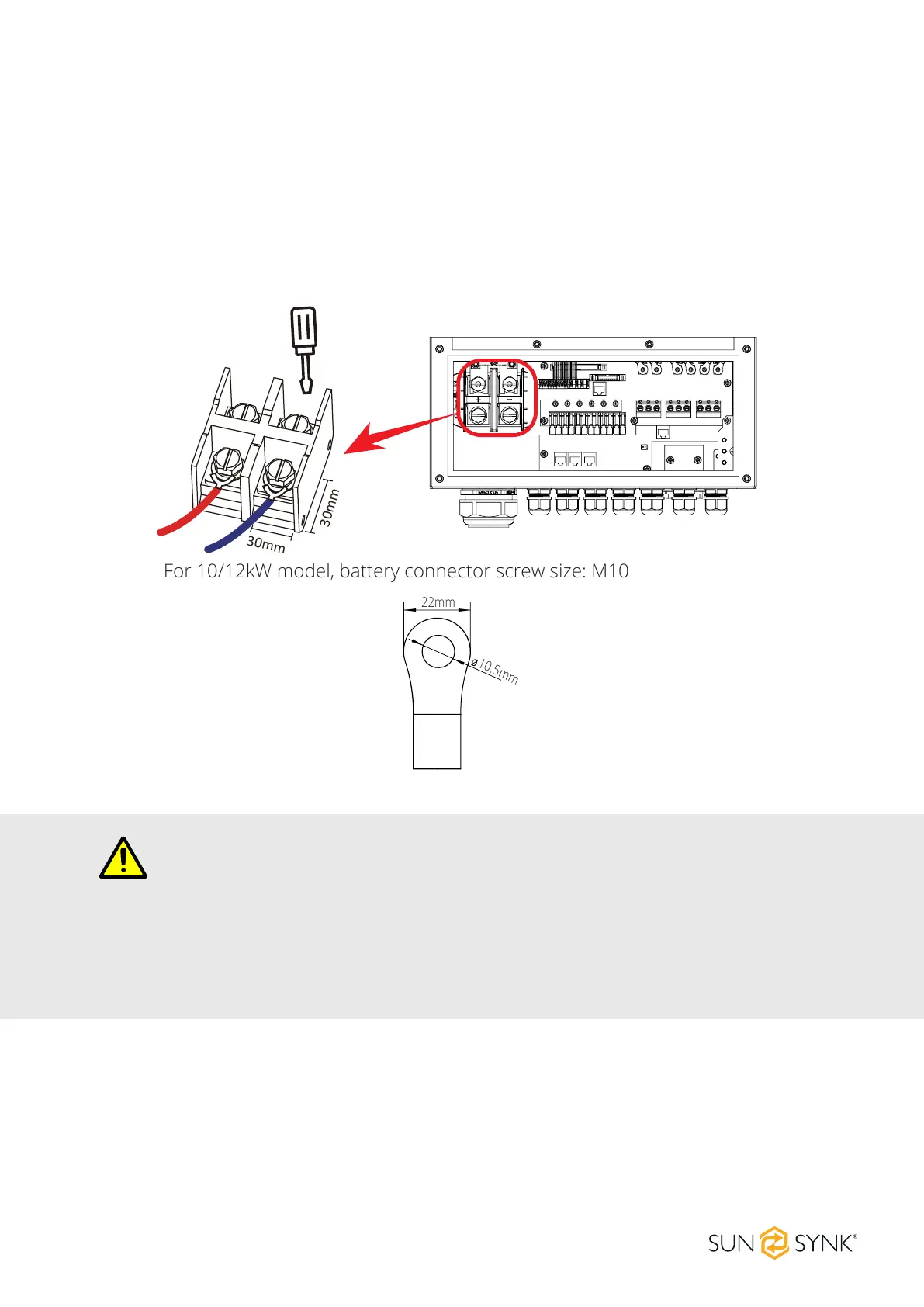

For 10/12kW model, battery connector screw size: M10
30mm
30mm
