SunSynk SUNSYNK-10K-SG02LP1 - METER CONNECTION; Meter Diagram and Earth Connection

SINGLE PHASE HI 10/12kW | User Manual24
An Earth Cable shall be connected to the earth plate on the grid size in order to prevent electric shock if the
original protective conductor fails.
Meter Connection
System Connection for the CHNT Meter
Earth Connection (MANDATORY)
DDSU666 DIN-RAIL METER
230V 5(60) A 800imp/kWh
2
56
1
4
7
8
3
Inverter
N L
Grid
AC
Breaker

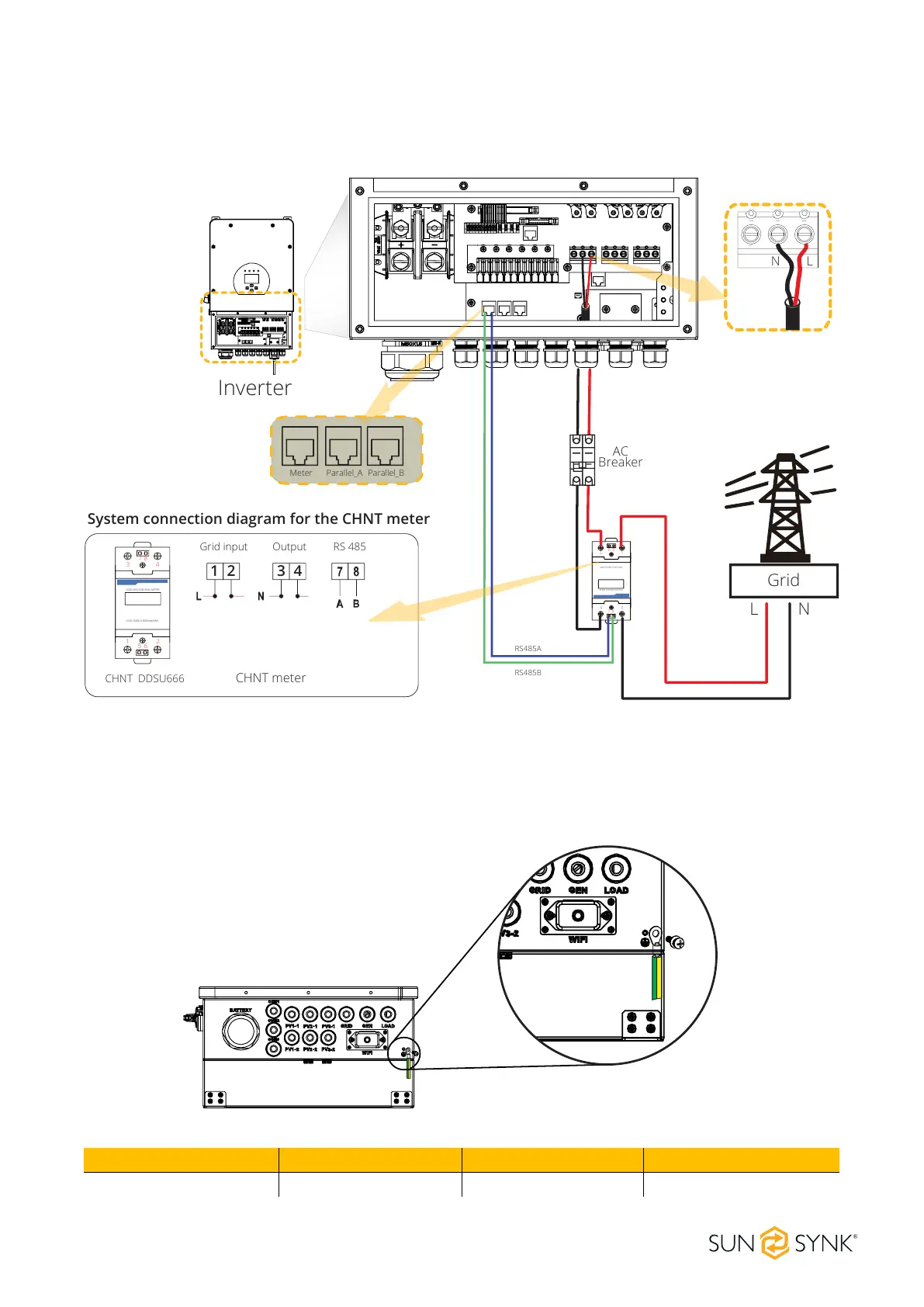

System connection diagram for the CHNT meter
21 43
CHNT DDSU666
DDSU666 DIN-RAIL METER
230V 5(60) A 800imp/kWh
2
5 6
1
4
7 8
3
Output
RS 485
Grid input
CHNT meter
L
N
RS485B
RS485A
Meter Parallel_A Parallel_B
Model Wire Size Cable (mm
2
) Torque Value (Max.)
10kW / 12kW 5AWG 16 1.2N.m
