SunSynk SUNSYNK-10K-SG02LP1 User Manual

SINGLE PHASE HI 10/12kW | User Manual27

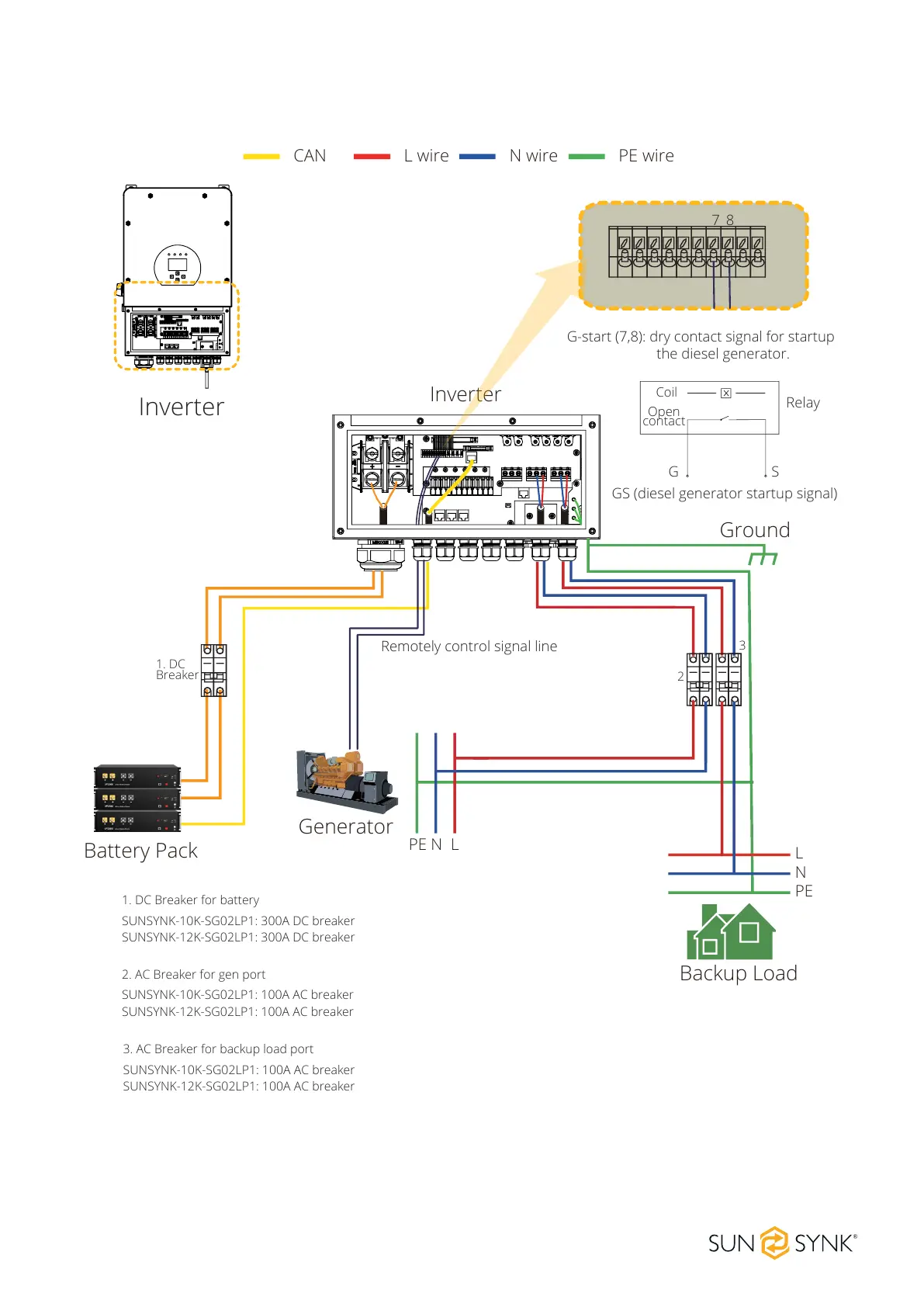

Typical Application of Diesel Generator
L wireCAN N wire PE wire
Inverter
Battery Pack
1. DC
Breaker
Backup Load
L
N
PE
LNPE
Ground
Generator
7 8
Inverter
G-start (7,8): dry contact signal for startup
the diesel generator.
GS (diesel generator startup signal)
Relay
Coil
Open
contact
G S
Remotely control signal line
1. DC Breaker for battery
SUNSYNK-10K-SG02LP1: 300A DC breaker
SUNSYNK-12K-SG02LP1: 300A DC breaker
2. AC Breaker for gen port
SUNSYNK-10K-SG02LP1: 100A AC breaker
SUNSYNK-12K-SG02LP1: 100A AC breaker
3. AC Breaker for backup load port
SUNSYNK-10K-SG02LP1: 100A AC breaker
SUNSYNK-12K-SG02LP1: 100A AC breaker
2
3
