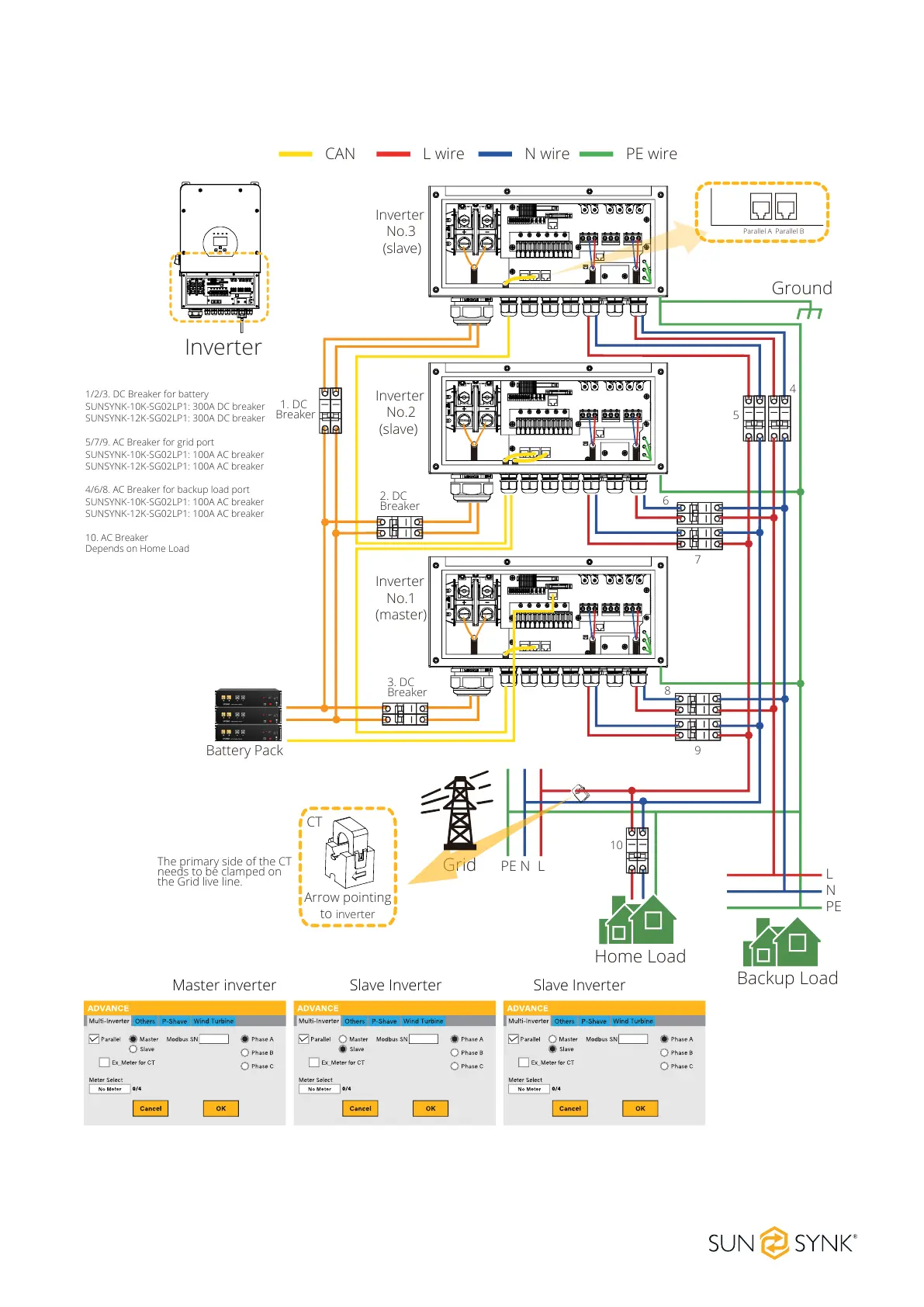

Single-Phase Parallel Connection
L wireCAN N wire PE wire
Master inverter Slave Inverter Slave Inverter
Parallel A Parallel B
Inverter
No.3
(slave)
Inverter
No.2
(slave)
Inverter
No.1
(master)
Battery Pack
1. DC
Breaker
2. DC
Breaker
3. DC
Breaker
Grid
Backup Load
L
N
PE
LNPE
Ground
Home Load
4
6
9
10
7
5
8
CT
Arrow pointing
to
inverter
The primary side of the CT
needs to be clamped on
the Grid live line.
Inverter
1/2/3. DC Breaker for battery
SUNSYNK-10K-SG02LP1: 300A DC breaker
SUNSYNK-12K-SG02LP1: 300A DC breaker
5/7/9. AC Breaker for grid port
SUNSYNK-10K-SG02LP1: 100A AC breaker
SUNSYNK-12K-SG02LP1: 100A AC breaker
4/6/8. AC Breaker for backup load port
SUNSYNK-10K-SG02LP1: 100A AC breaker
SUNSYNK-12K-SG02LP1: 100A AC breaker
10. AC Breaker
Depends on Home Load
01 02 03
