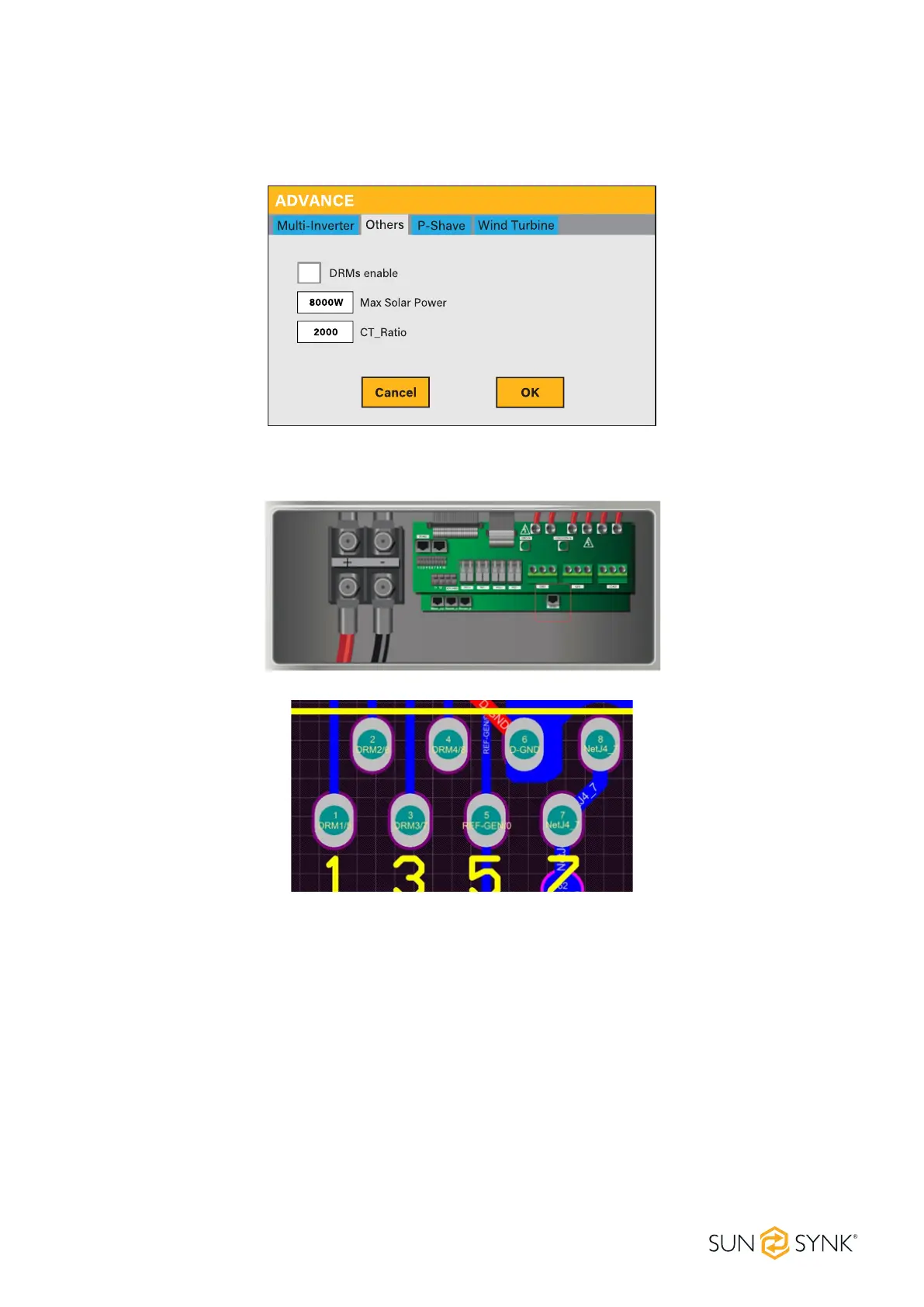

SINGLE PHASE HI 10/12kW | User Manual61
Connecting the DRM’s
This can be selected under advance settings.
This can be selected under advance settings.
1. DRM 1/5
2. DRM 2/6
3. DRM 3/7
4. DRM 4/8
5. Ref 0
6. D Ground
7. Net J 4-7
8. Net J 4-7
