SINGLE PHASE HI 10/12kW | User Manual39
What this page displays:
Battery capacity in (Ah): For non-BMS-batteries the range allowed is 0-2000Ah, while for lithium-ion,
the inverter will use the capacity value of the BMS.
Charge/Discharge Amps: The Max battery charge/discharge current (0-220A for 10kW model, 0-250A
for 12kW model).
Lithium Mode: This is BMS protocol. Please reference the document (Approved Battery).
AGM V: Use battery voltage for all settings (V).
AGM %: Use battery SOC for all settings (%).
No batt: Tick this box if no battery is connected to the system.
Active battery: This feature will help recover a battery that is 100% discharged by slowly changing from
the solar array. Until the battery reaches a point where it can change normally.
TEMPCO settings: The temperature coecient is the error introduced by a change in temperature.

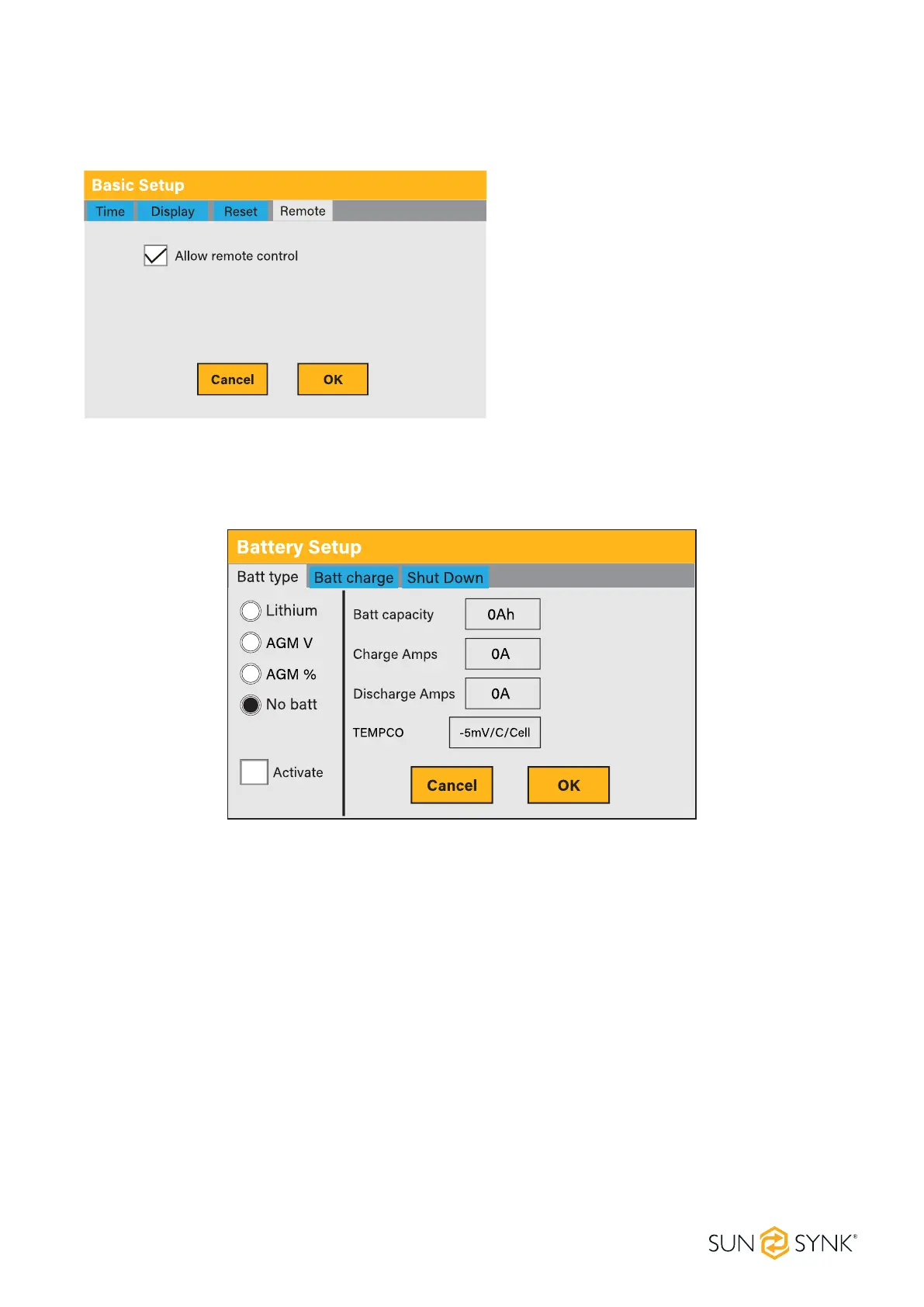

Remote control option.
What this page displays:
Allows remote control of the inverter.
What you can do from this page:
Battery Setup Page
To congure battery settings, click on the BATTERY icon and then on ‘Batt type’.
Inverter Remote Control
To control the inverter remotely, tick the box that allows it.
