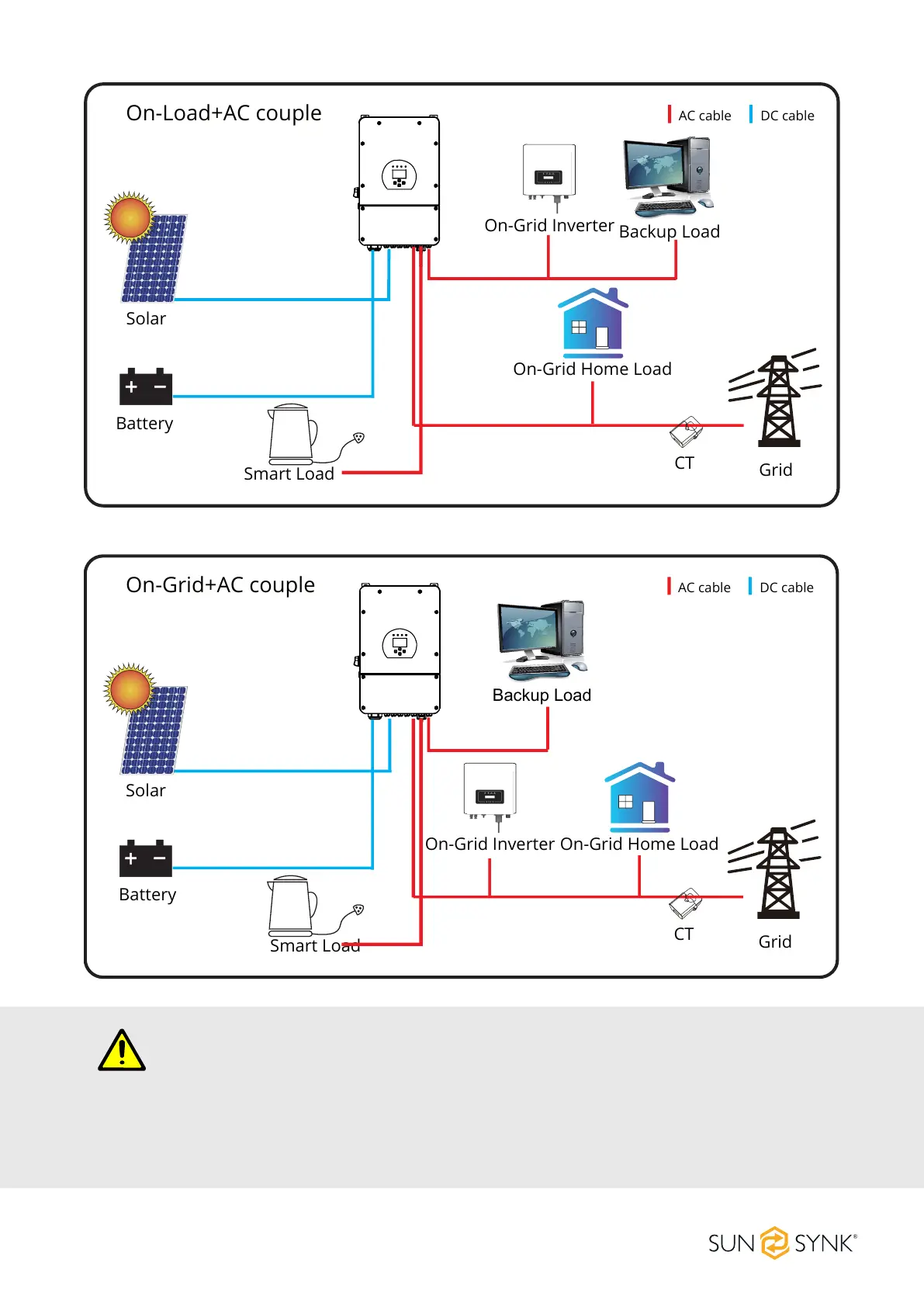

On-Load+AC couple
AC cable DC cable
CT
Battery
Solar
Grid
Backup Load
On-Grid Home Load
On-Grid Inverter
Smart Load
On-Grid+AC couple
AC cable DC cable
CT
Battery
Solar
Grid
Backup Load
Smart Load
On-Grid Inverter On-Grid Home Load
WARNING
The 1st priority power of the system is always the PV power, then 2nd and 3rd priority power will be
the battery bank or grid according to the settings. The last power backup will be the Generator if it is
available.
