SUNWARD SWE90UF-2PB - 6.4 CIRCUIT DIAGRAM

SWE90UF-2PB Operation & Maintenance Manual
145

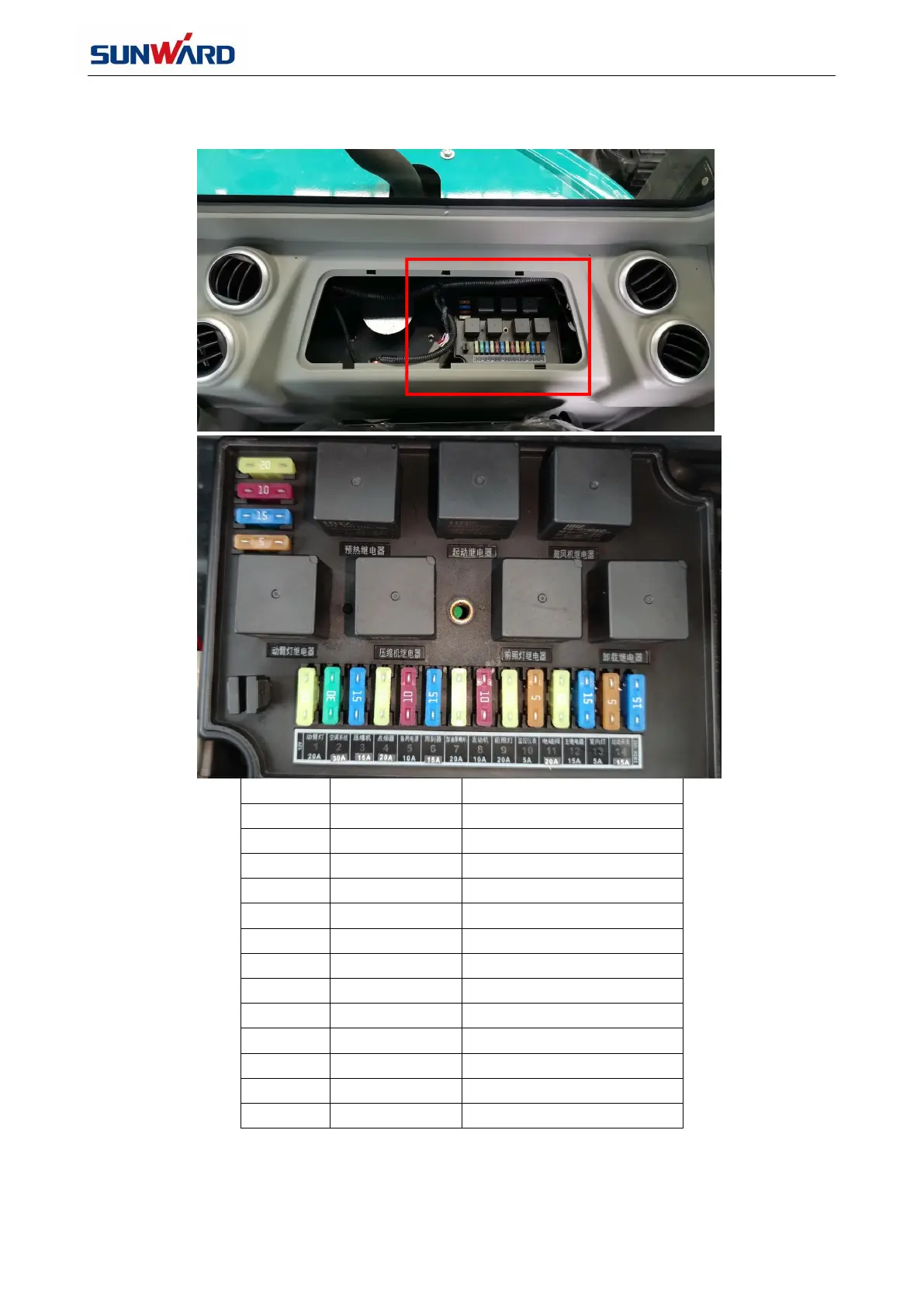

Fuse Position and Function
1
20A
Boom light
2
30A
Air conditioning system
3
15A
Compressor
4
20A
Cigar lighter
5
10A
Reserve power supply
6
15A
Wiper
7
20A
Oil pump horn
8
10A
Engine
9
20A
Front light
10
5A
Monitor
11
20A
Solenoid valve
12
15A
Main relay
13
5A
Indoor light
14
15A
Starting switch
（
Sequence: start from left
）
