4.4 TRAVEL CONTROL
Travel with foot pedal
(1) Straight travel: Step on two pedals forward at the same time.
(2) Straight backing: Step on two pedals downward at the same time.
(3) Turning in one point
a) Turn left (As FIG. 4.4.2): Step on right pedal forward and left pedal
downward.
b) Turn right (As FIG. 4.4.3): Step on right pedal downward
and left pedal forward.
In order to protect travel mechanism, turning should be
avoided while backing.
Travel with handle control
If traveling should be adjusted slightly, operate that by handle
control. This method is safe and reliable and fit for loading and
unloading the machine to a trailer (As FIG. 4.4.5).
(1) Straight travel: Push two handles forward at the same time.
(2) Straight back: Pull two handles backward at the same time.
(3) Turning in one point
Left turning: Push right handle forward and pull left handle
backward.
Right turning (FIG. 4.4.3): Pull right handle backward and push
left handle forward.
(4) Turning with one side crawler
Left turning: push right handle forward.

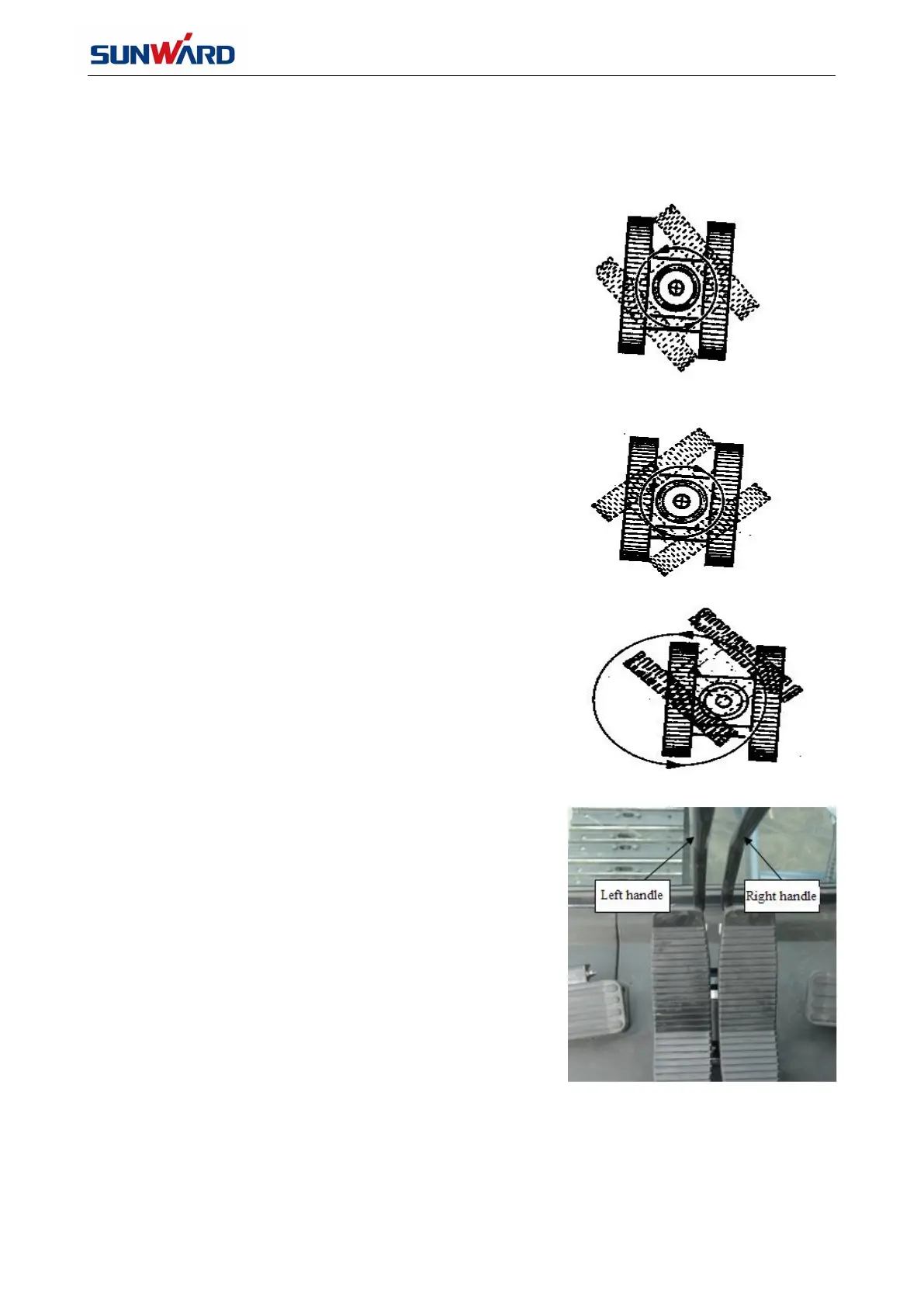

FIG. 4.4.2
FIG. 4.4.3
Figure 4.4.5
