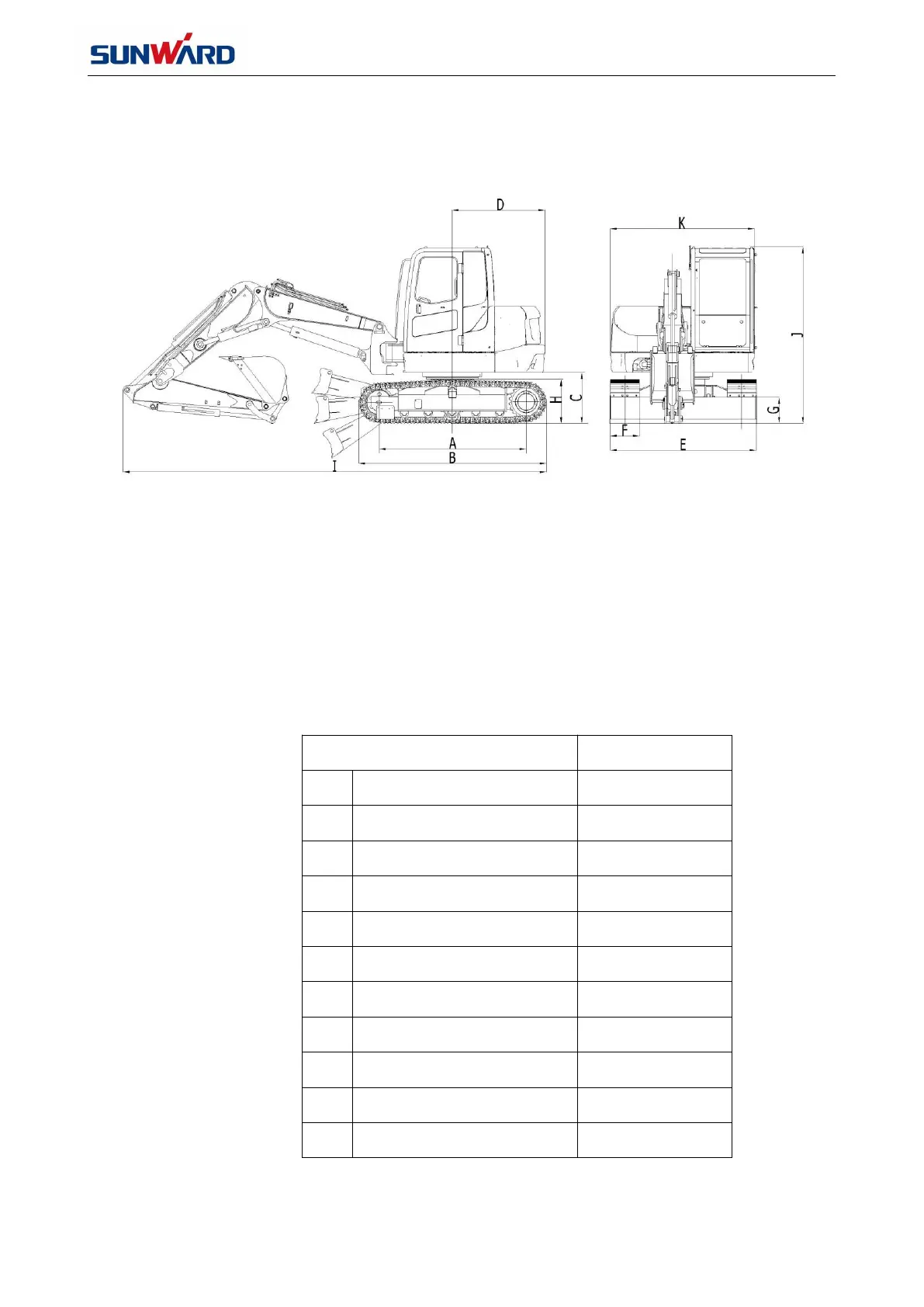

6.2 DIMENSION
Machine Model
SWE90UF-2PB
A
Tumbler distance
2270
B
Overall length of crawler
2900
C
Platform ground clearance
800
D
Tail swing radius
1430
E
Chassis width
2250
F
Track shoe width
450
G
Chassis ground clearance
380
H
Crawler height
678
I
Overall length
6535
J
Overall height of cab
2735
K
Upper-structure width
2220
Unit: mm
