SWE90UF-2PB Operation & Maintenance Manual
b. boom fall
c. backhoe bucket load, or clamshell bucket load
d. backhoe bucket dump, or clamshell bucket dump

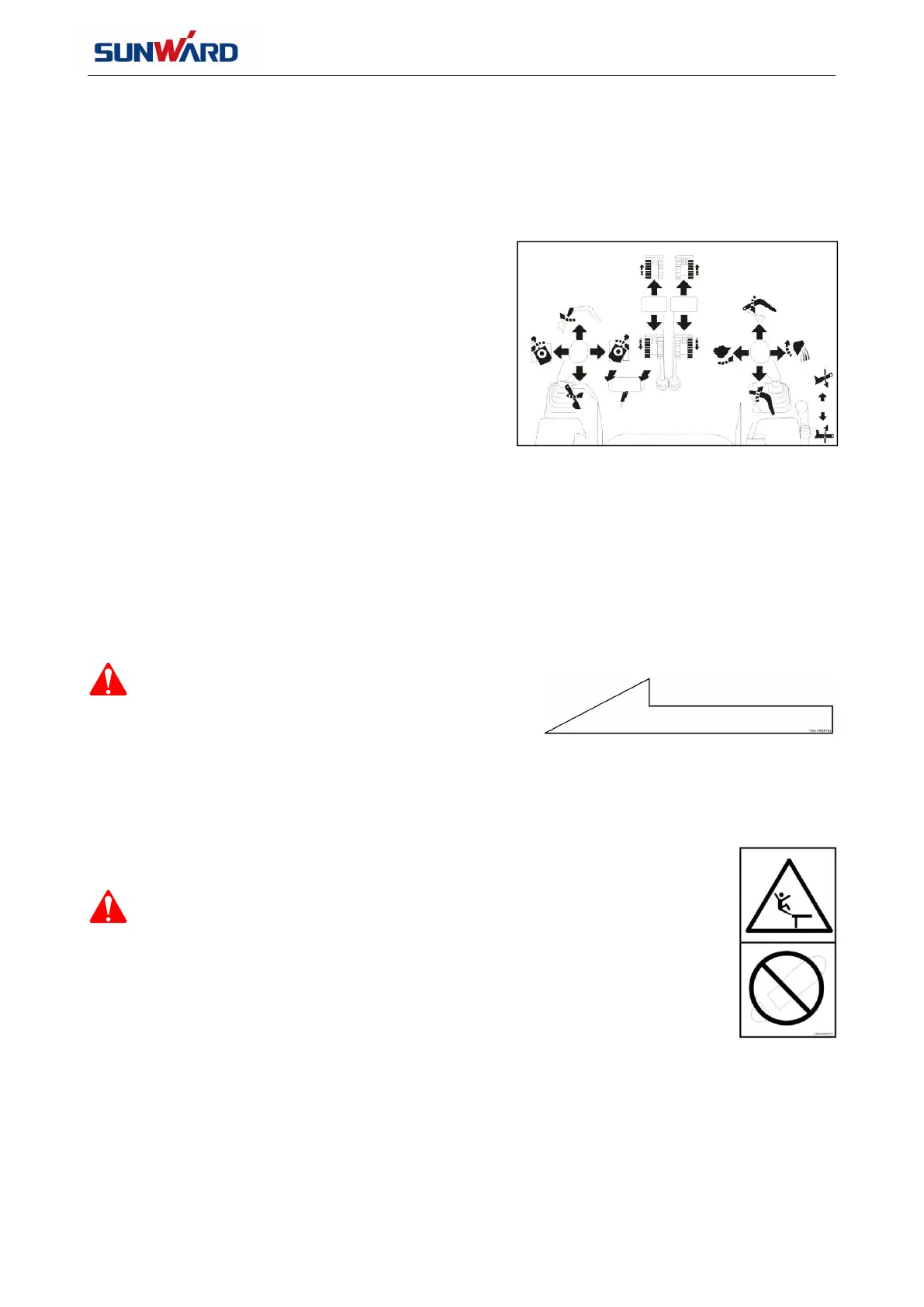

Left pilot handle controls motion as below
：
e. upper-structure rotate anticlockwise
f. upper-structure rotate clockwise
g. arm out
h. arm in
Operation together with two pilot handles can also
take compound motion. In addition, horn switch
button is fixed on the handle.
Two travel control lever control forward motion,
reverse motion and steering of the machine.
（
17
）
Direction Label
This label indicates travel direction of machine when
“travel control lever is pushed forward”.
Warning
In case that driving wheel is located underneath cab,
machine will travel rearward when pushing “travel
control lever” forward. (On this occasion, symbol
indicates backward).
(18) No Stepping Label
Warning
Stay clear of operation area of working device.
