2-3 Processor and Heatsink Installation
Warning: When handling the processor package, avoid placing direct pressure on the
label area of the fan.
Important:
• Always connect the power cord last, and always remove it before
adding, removing or changing any hardware components. Make sure
that you install the processor into the CPU socket before you install
the CPU heatsink.
• If you buy a CPU separately, make sure that you use an Intel-certied
multi-directional heatsink only.
• Make sure to install the system board into the chassis before you
install the CPU heatsink.
• When receiving a server board without a processor pre-installed,
make sure that the plastic CPU socket cap is in place and none of
the socket pins are bent; otherwise, contact your retailer immediately.
• Refer to the Supermicro website for updates on CPU support.

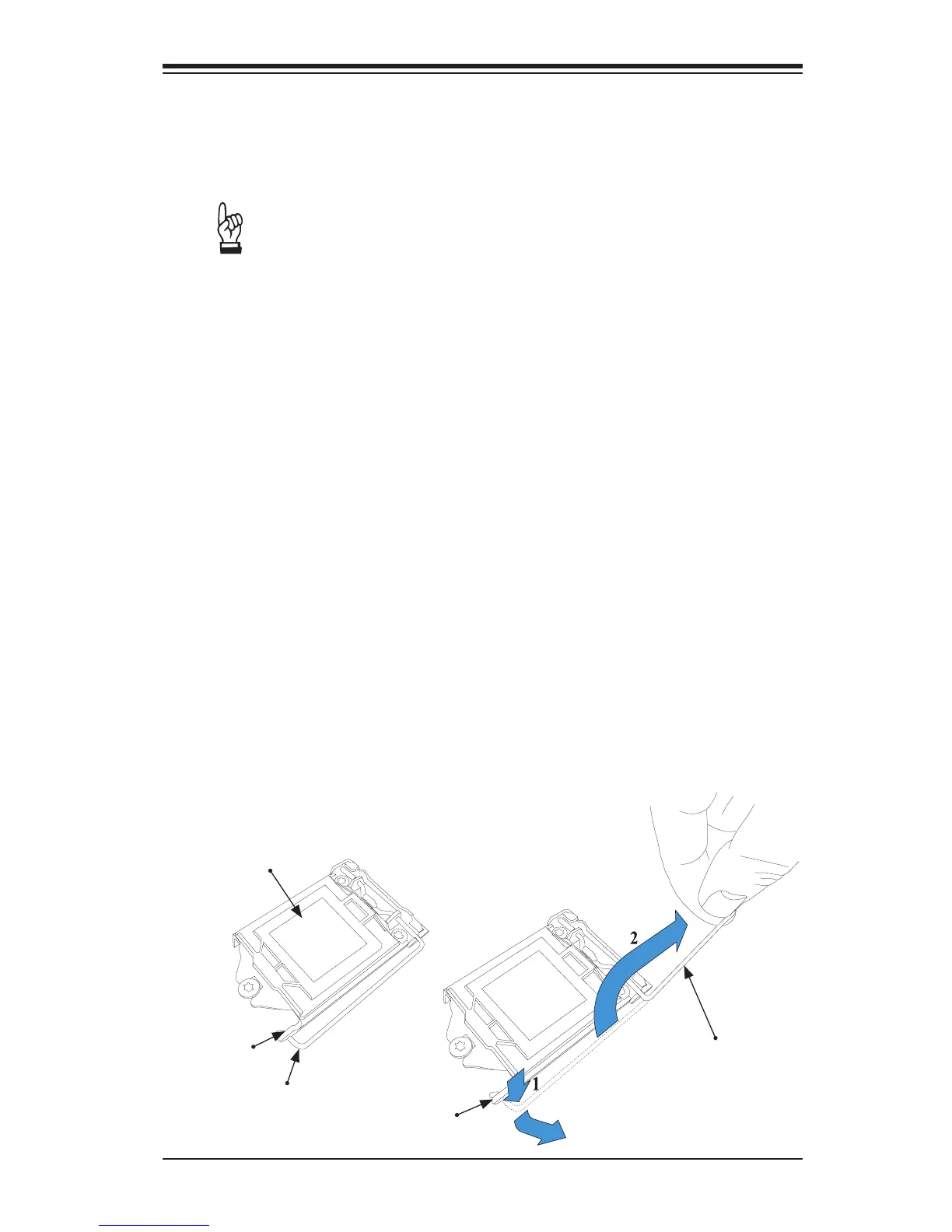

Installing the LGA1150 Processor
1. Gently press down the load plate handle and push it outward (to the right
side) to unlock it.
2. Once the load plate handle is unlocked, gently lift the handle to open the
load plate.
Load Plate Handle
Load Plate
Handle Lock
Handle Lock
Load Plate Handle
