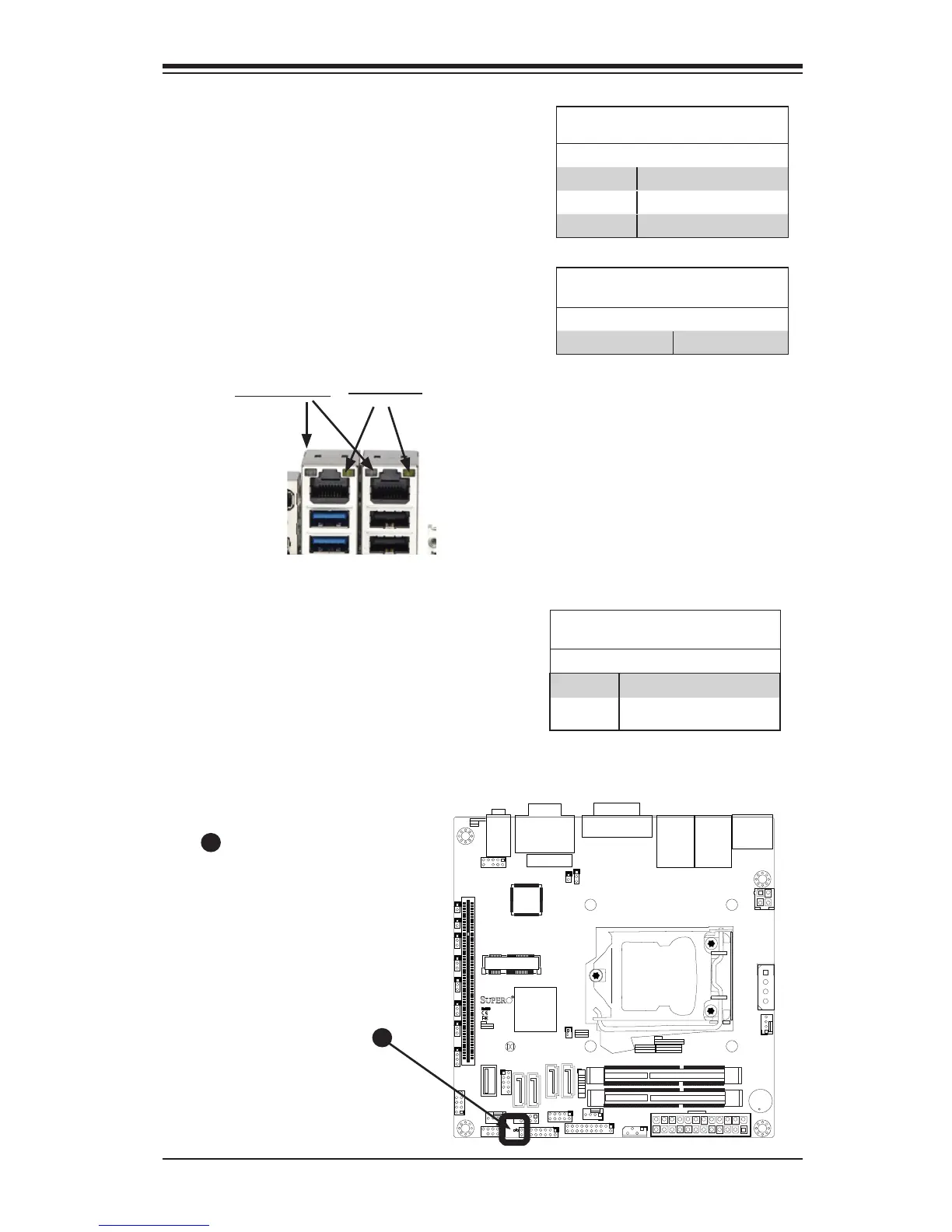

Chapter 2: Installation
2-35
A
LAN Port LEDs
Two LAN ports are located on the I/O
Backpanel. Each Ethernet LAN port has
two LEDs. The yellow Activity LED (right,
see below) indicates activity, while the Link/
Speed LED (left) may be green, amber or
off to indicate the speed of the connection.
See the tables at right for more information.
2-9 Onboard Indicators
GLAN Activity LED Indicator
Color Denition
Yellow (Flashing) ConnectionActive
GLAN Link/Speed LED Indicator
LED Color Denition
Off No Connection or 10 Mbps
Green (On) 100 Mbps
Amber (On) 1 Gbps
Activity LED
Link/Speed LED
Standby Power LED (LED1)
An Onboard Power LED is located at
LED1 on the motherboard. When LED1
is on, the AC power cable is connected
and the power supply hard switch is
on. The system may be on standby or
running.
Onboard PWR LED (LED1)
LED Status
Status Denition
Off System Off (Soft Switch)
On Power is Detected
A
Standby Power LED
