X10SLV/-Q Motherboard User's Manual

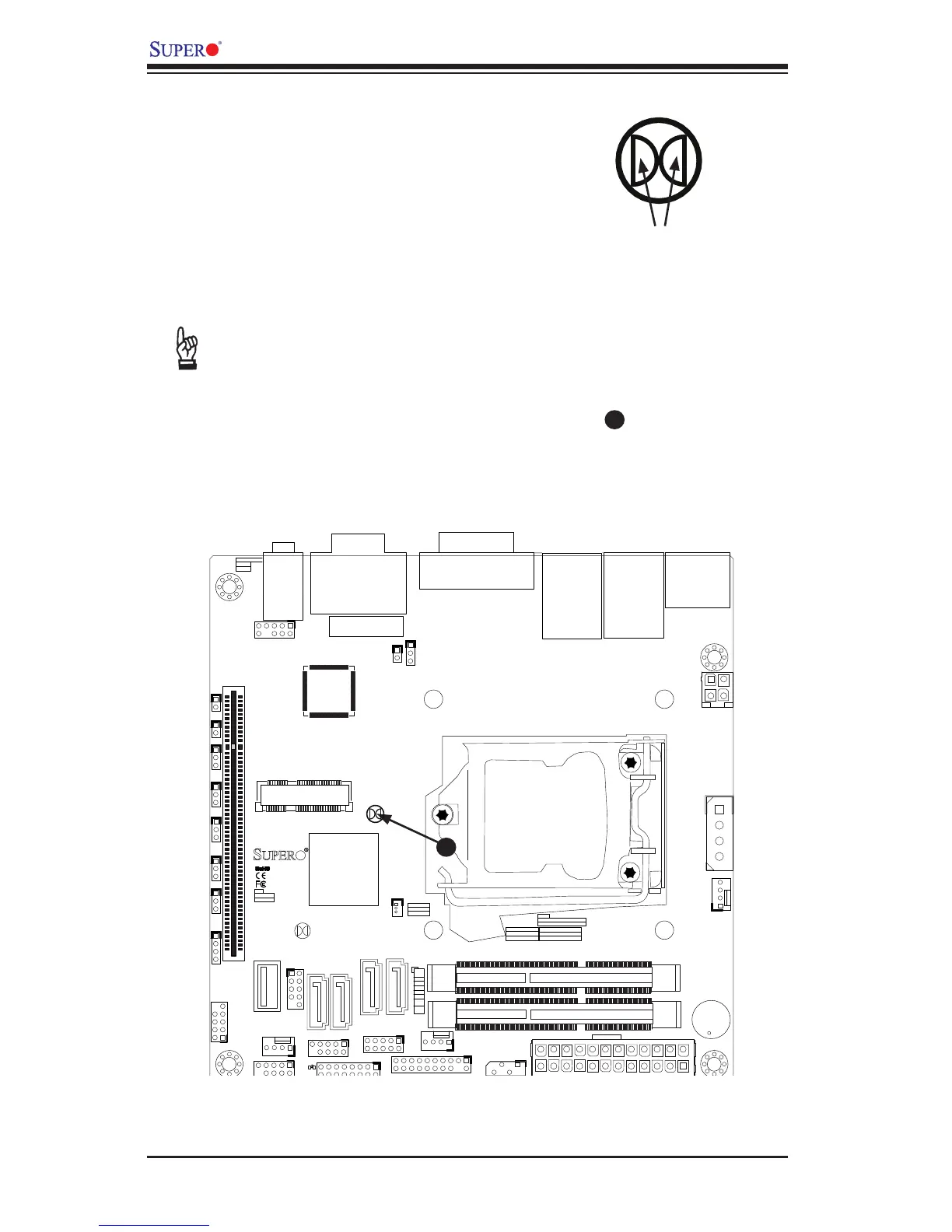

Clear CMOS (JBT1)
JBT1 is used to clear the CMOS. Instead of
pins, this "jumper" consists of contact pads
to prevent accidental clearing of CMOS. To
activate, use a metal object such as a small
screwdriver to touch both pads at the same
time, to short the connection. Always remove
the AC power cord from the system before
clearing CMOS.
Important: For an ATX power supply, you
must completely shut down the system,
remove the AC power cord and then short
JBT1 to clear CMOS.
