X10SLV/-Q Motherboard User's Manual
Watch Dog Reset (JWD1)
Watch Dog (JWD1) is a system monitor that
can reboot the system when a software ap-
plication hangs. Close pins 1~2 to reset the
system if an application hangs. Close pins
2~3 to generate a non-maskable interrupt
signal for the application that hangs. See the
table on the right for jumper settings. Watch
Dog must also be enabled in the BIOS.
Watch Dog
Jumper Settings
Jumper Setting Denition
Pins 1-2 Reset
(default)
Pins 2-3 NMI
Open Disabled

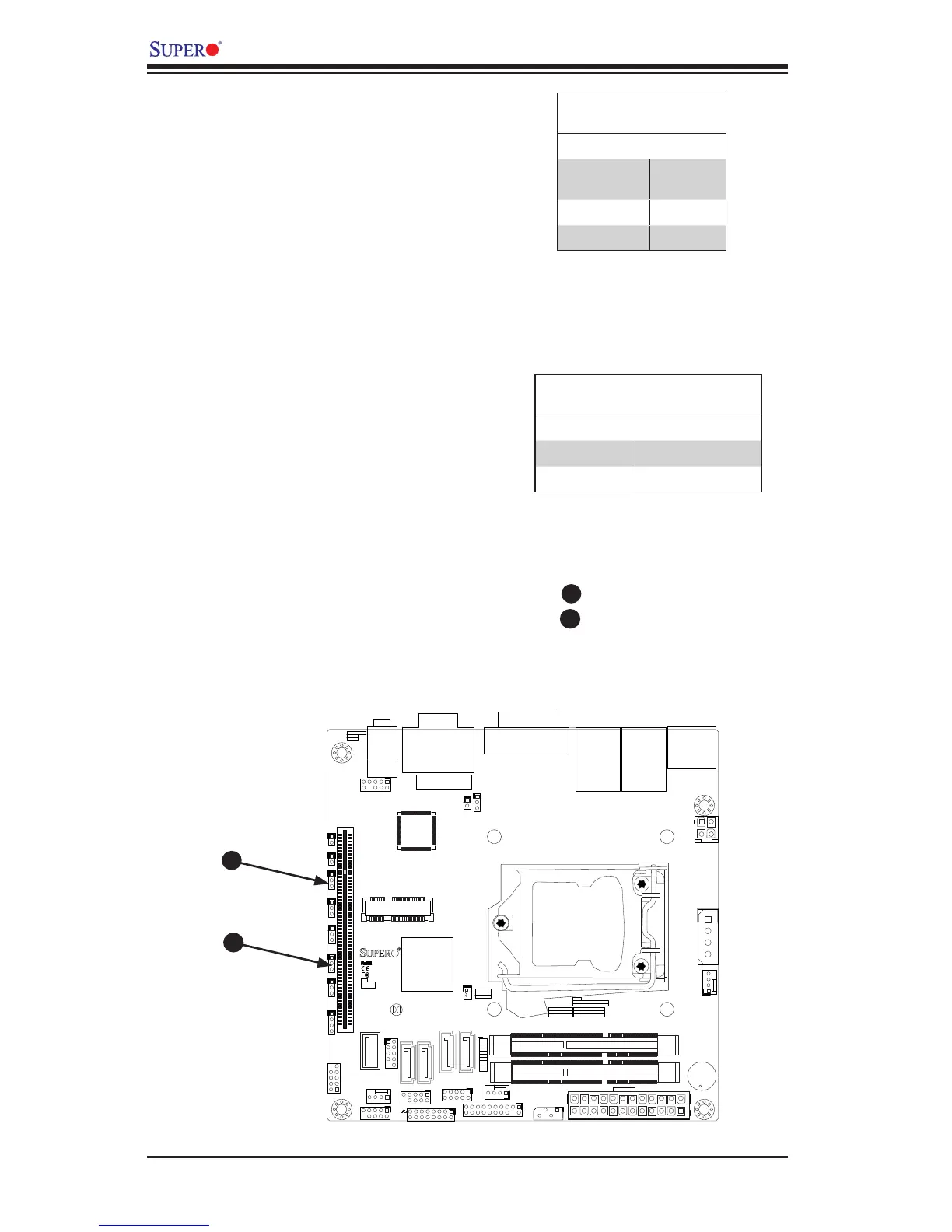

A
A
Watch Dog Reset
ME Manufacturing Mode
B
ME Manufacturing Mode (JPME2)
Close Pin 2 and Pin 3 of Jumper JPME2
to bypass SPI ash security and force the
system to operate in the Manufacturing
mode, allowing the user to ash the system
rmware from a host server for system set-
ting modications. See the table on the right
for jumper settings
ME Manufacturing Mode
Jumper Settings
Jumper Setting Denition
Pins 1-2 Normal (Default)
Pins 2-3 Enabled
B
