Supero X10SLV User Manual

Chapter 2: Installation
2-23

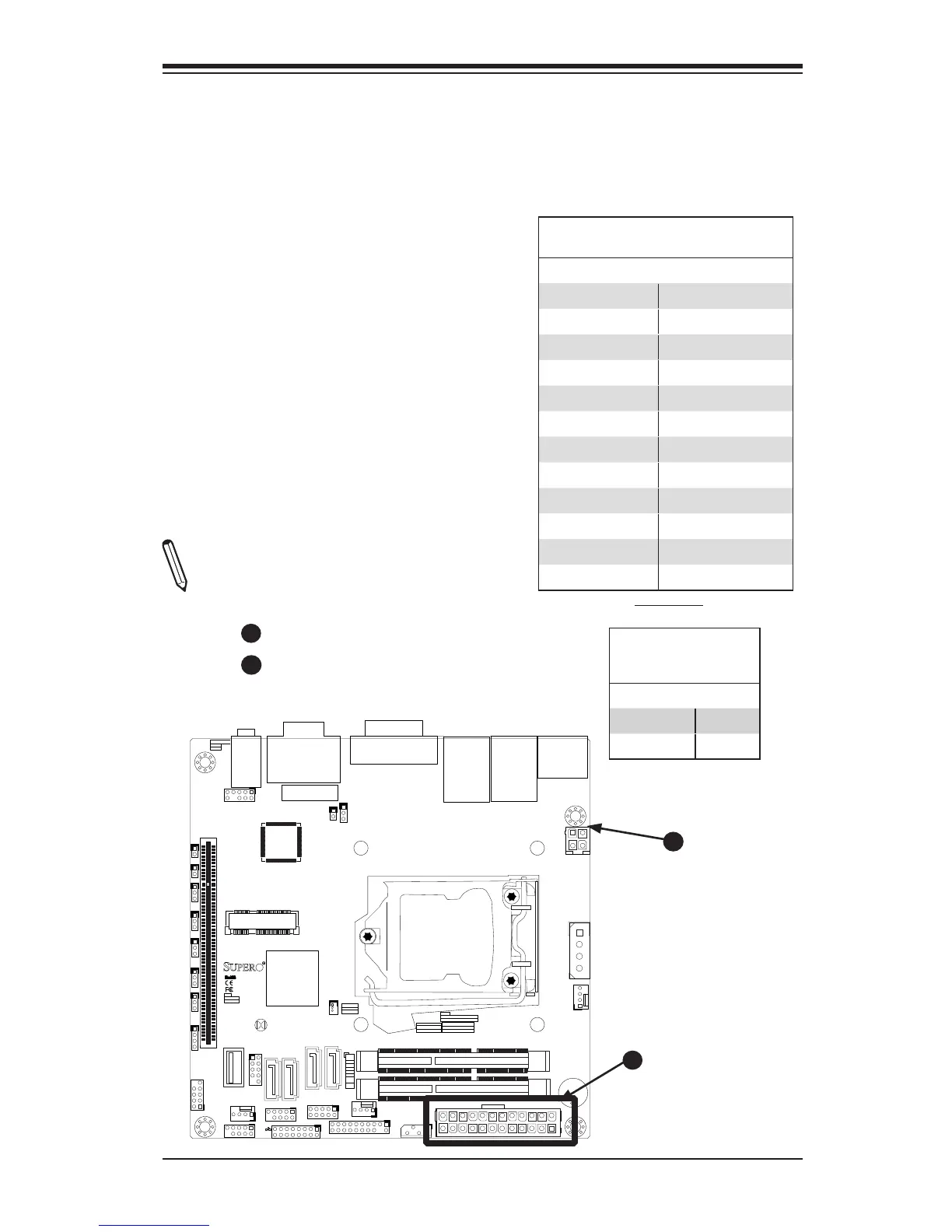

2-7 Connecting Cables
This section provides brief descriptions and pin-out denitions for onboard power
connectors. Be sure to use the correct cable for each header or connector.
24-pin PWR
4-pin Auxilliary Power
ATX Power 24-pin Connector
Pin Denitions (JPW1)
Pin# Denition Pin # Denition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
24-pin ATX Power Connector (JPW1)
The 24-pin power connector is used
to provide power to the motherboard.
This connector meets the SSI EPS 12V
specication. See the tables on the right
for pin denitions.
A
B
A
(Required)
B
ATX 4-pin CPU Power
Connector
Pin Denitions
Pins Denition
1 and 2 Ground
3 and 4 +12V
4-pin ATX Power Connector (JPW2)
The 4-pin ATX power connector is
used to provide additional power to the
CPU. See the table on the right for pin
denitions.
Note: Either JPW1 or JPW2 may be
used as the main power input
