Supero X10SLV User Manual

Chapter 2: Installation
2-29
B
A

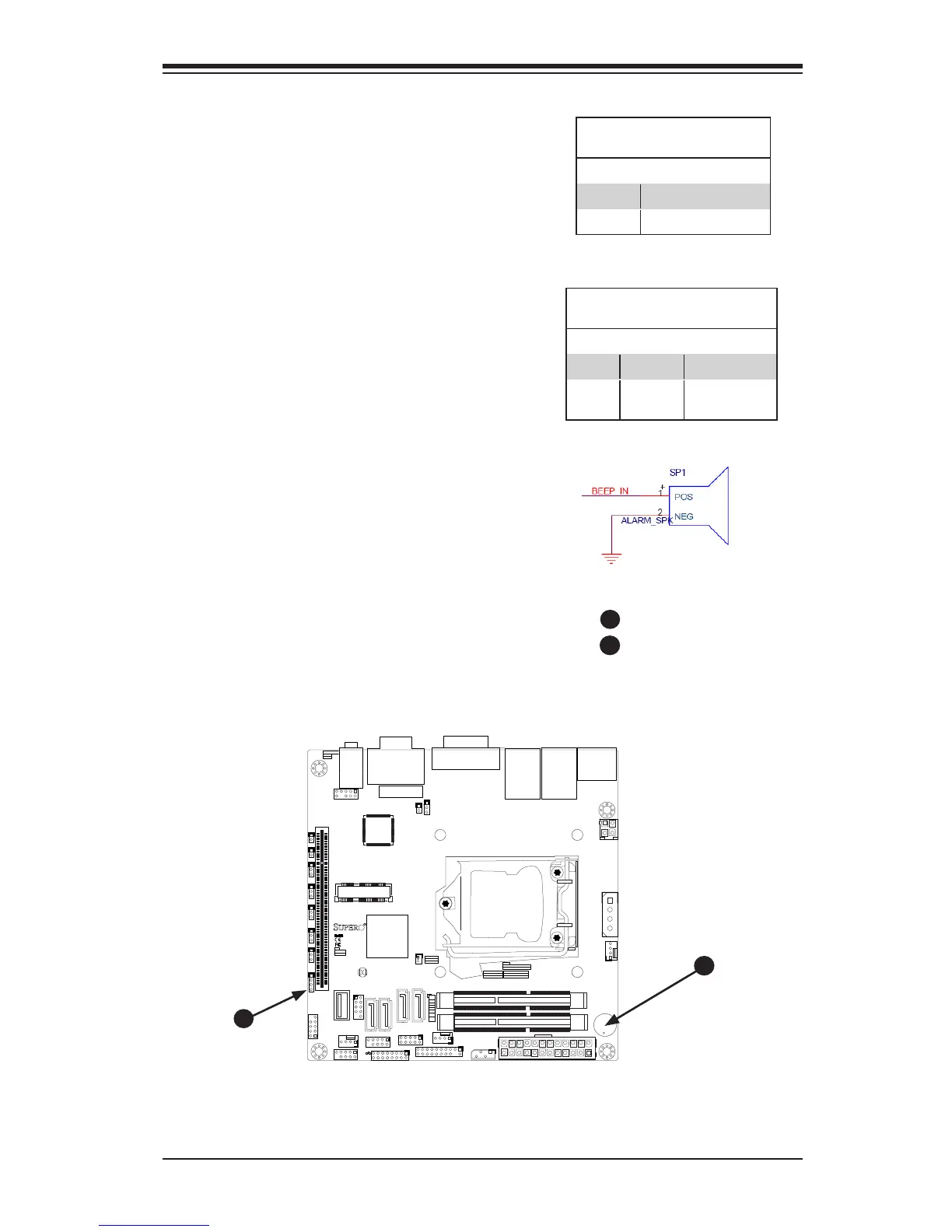

Speaker (JD1)
On the JD1 header, Pins 3-4 are used
for the internal speaker. Close Pins 3-4
with a cap to use the onboard speaker.
If you wish to use an external speaker,
attach the external speaker cable to Pins
1-4. See the table on the right for pin
denitions.
Speaker Connector
Pin Denitions
Pin Setting Denition
Pins 3-4 Internal Speaker
Pins 1-4 External Speaker
Internal Speaker/Buzzer (SP1)
The Internal Speaker on SP1 can be
used to provide audible indications for
various beep codes. See the table on
the right for pin denitions. Refer to
the layout below for the locations of
the Internal Buzzer (SP1).
Internal Buzzer
Pin Denition
Pin# Denitions
Pin 1 Pos. (+) Beep In
Pin 2 Neg. (-) Alarm
Speaker
PWR LED/SPKR
Internal Speaker/Buzzer
A
B
