Chapter 2: Installation
2-17
5

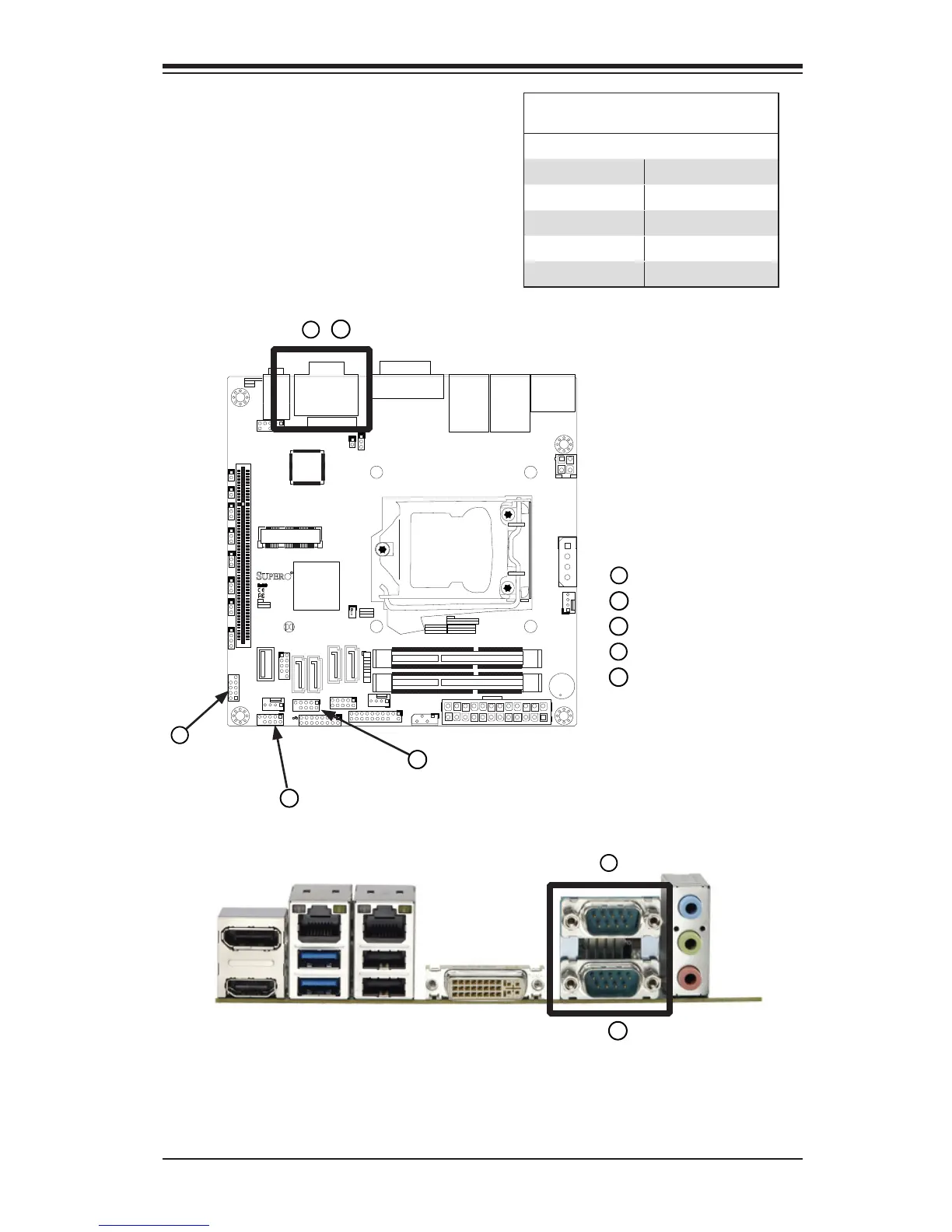

Serial Ports (COM1~COM5)
T
wo
COM
ports
(COM1,
COM2)
are
located
on
the
motherboard's
I/O
back
panel.
COM3,
COM4
and
COM5
are
headers and are located near the I-SA
T
A
ports to provide additional onboard serial
ports. See the table on the right for pin
denitions.
Serial Ports COM1~COM5
Pin Denitions
Pin # Denition
Pin # Denition
1
DCD
6
DSR
2
RXD
7
RTS
3
TXD
8
CTS
4
DTR
9
RI
5
Ground
10
N/A
(Backpanel)
COM2
(Backpanel)
COM1
COM3
Header
COM4
Header
COM5
Header
1
1
2
Back Panel Connectors
1
3
4
3
4
2
5
2
40
42
