Front Control Panel

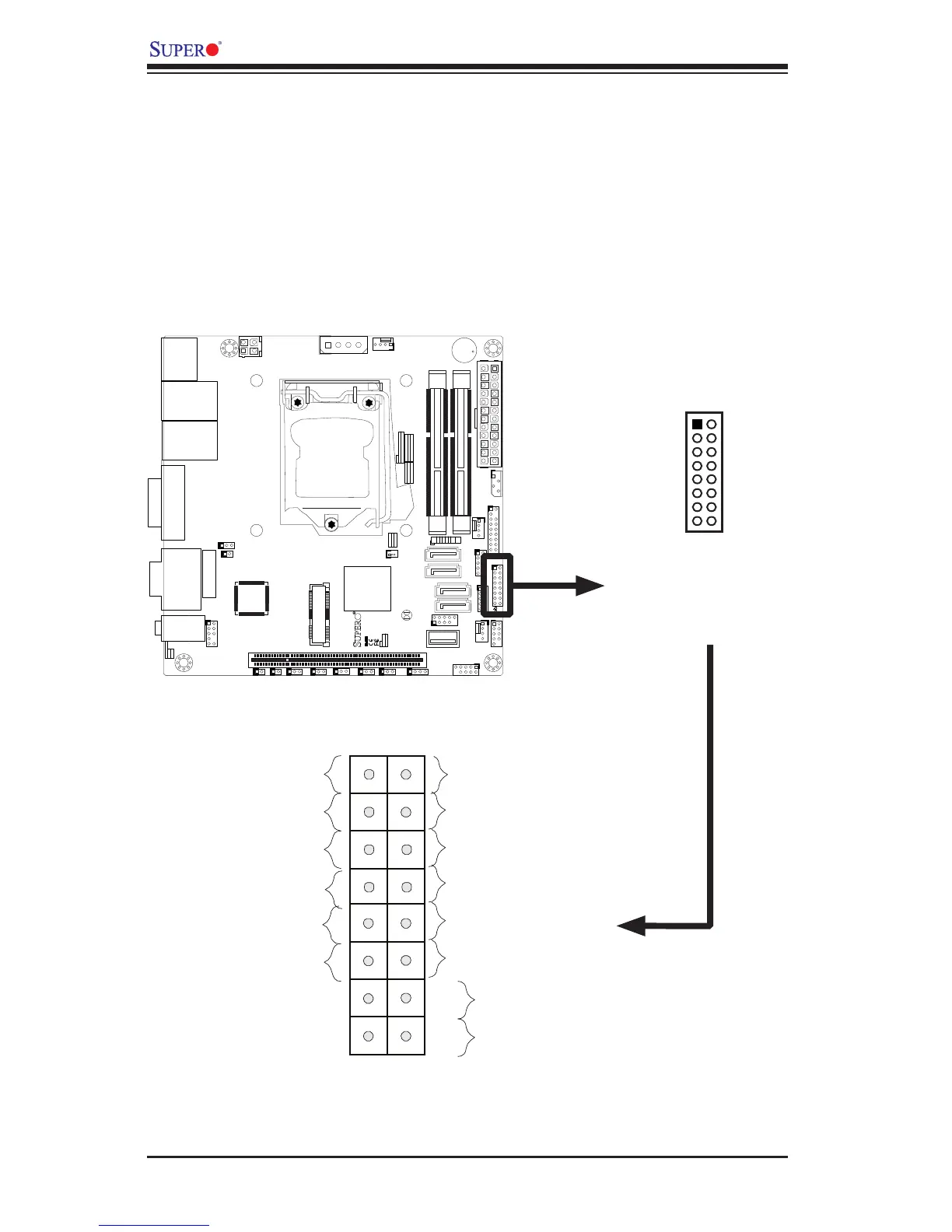

JF1 contains header pins for various buttons and indicators that are normally lo-

cated on a control panel at the front of the chassis. These connectors are designed

specically for use with Supermicro server chassis. See the gure below for the

descriptions of the various control panel buttons and LED indicators. Refer to the

following section for descriptions and pin denitions.

JF1 Header Pins

Power Button

OH/Fan Fail LED

NIC1 LED

Reset Button

HDD LED

Power LED

Reset

PWR

LED_Anode+

Ground

NIC2 LED

LED_Anode+

Pin 16

Pin 1

Pin 2

(Motherboard rotated 90 degrees)

Pin 15
