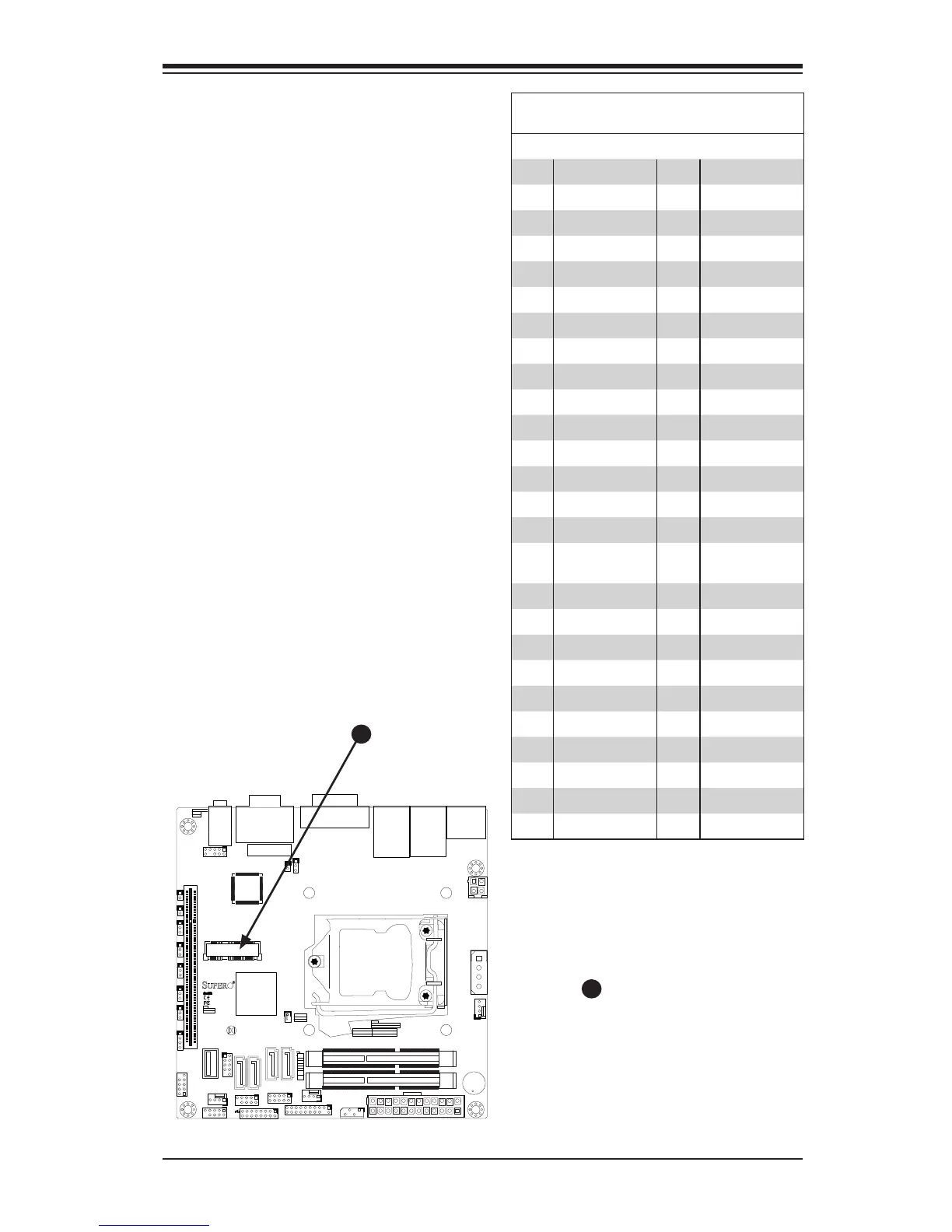

Mini PCIe Slot
A
A
Mini PCI-E Slot (Mini PCIE)
The Mini PCI-E slot is used to install a
compatible Mini PCI-E device. Refer to
the table on right for pin denitions.
The mSATA feature leverages the speed
and reliability of the SATA interface to
provide a high performance, cost-effec-
tive storage solution for smaller devices
like notebooks and netbooks.
The specication maps SATA signals
onto an existing small form factor con-
nector, enabling more compact integra-
tion in a wide variety of applications for
both hard disk (HDD) and solid state
drives (SSDs). The mSATA connector
allows companies to increase the stor-
age offerings of their products without
compromising valuable space.
Mini PCI-E
Pin Denitions
Pin# Denition Pin# Denition
51 NC 52 +3.3Vaux
49 NC 50 GND
47 NC 48 +1.5V
45 NC 46 NC
43 NC 44 NC
41 +3.3Vaux 42 NC
39 +3.3Vaux 40 GND
37 GND 38 USB_D+
35 GND 36 USB_D-
33 PETp0 34 GND
31 PETn0 32 SMB_DATA
29 GND 30 SMB_CLK
27 GND 28 +1.5V
25 PERp0 26 GND
23 PERn0 24 +3.3Vaux
21 DET_CARD_
PLUG
22 PERST#
19 NC 20 W_DISABLE#
17 NC 18 GND
15 GND 16 NC
13 REFCLK+ 14 NC
11 REFCLK- 12 NC
9 GND 10 NC
7 CLKREQ# 8 NC
5 NC 6 1.5V
3 NC 4 GND
1 WAKE# 2 3.3Vaux
