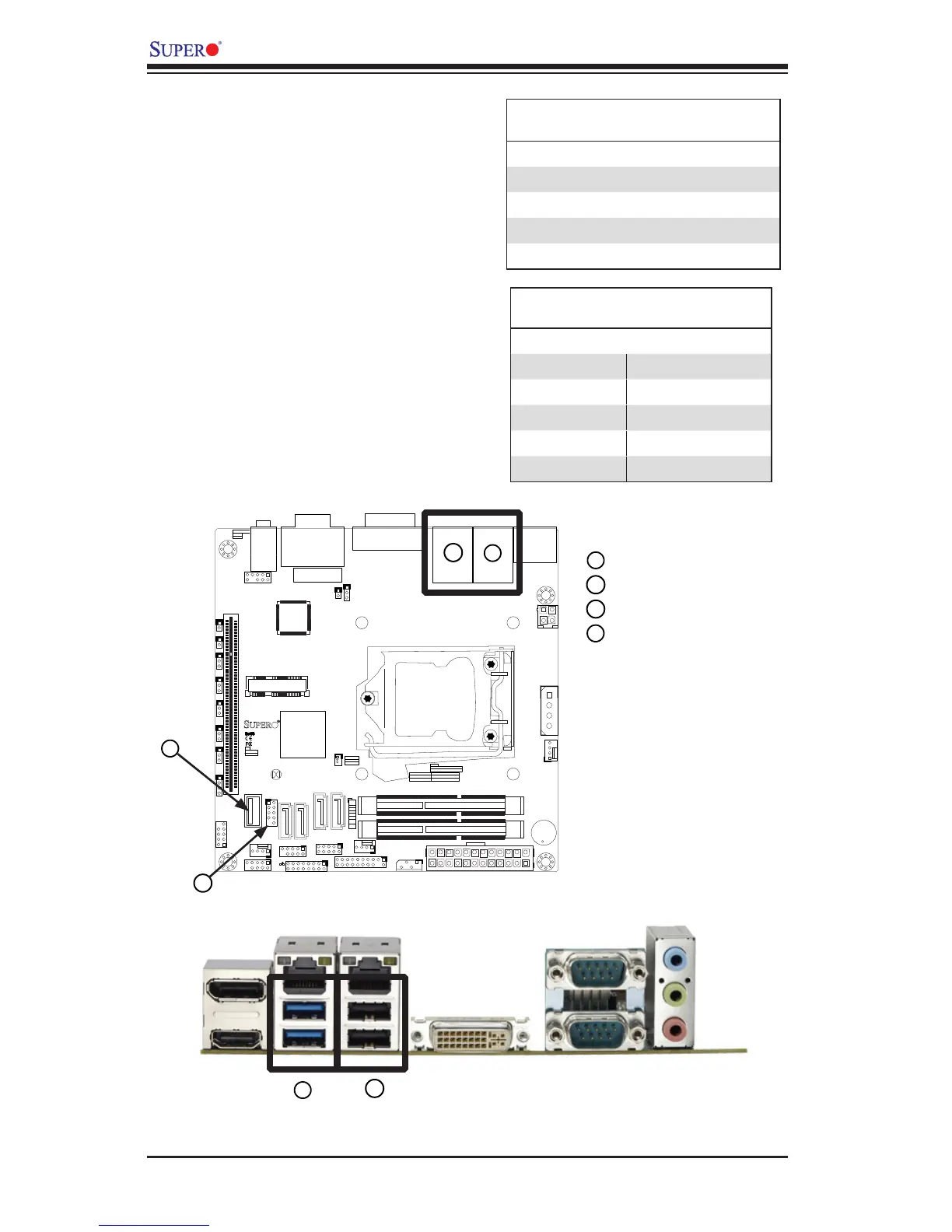

Supero X10SLV User Manual

2-16
X10SLV/-Q Motherboard User's Manual
Backpanel USB 0/1 (3.0)
Backpanel USB 2/3 (2.0)
USB 4/5 header (2.0)
USB 10 Type A (2.0)
Universal Serial Bus (USB)
Four Universal Serial Bus ports are locat-
ed on the I/O backpanel. These are USB
0/1 (3.0) and USB 2/3 (2.0). Additionally,
one header (USB 4/5, 2.0), and one Type
A port (USB 10, 2.0) are also located on
the motherboard to provide front chassis
access. (Cables are not included). See
the tables on the right for pin denitions.
Back Panel USB
Type A USB 10 Pin Denitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_PN 6 USB_PN
3 USB_PP 7 USB_PP
4 Ground 8 Ground
Front Panel USB 2.0
Pin Denitions
Pin # Denition Pin # Denition
1 +5V 6 +5V
2 USB_PN 7 USB_PN
3 USB_PP 8 USB_PP
4 Ground 9 Ground
5 NA 10 Key
4
3
1
2
1
2
Back Panel Connectors
3
2
1
4
